Siemens 6ES7972-0BA42-0XA0 PROFIBUS DP Connector

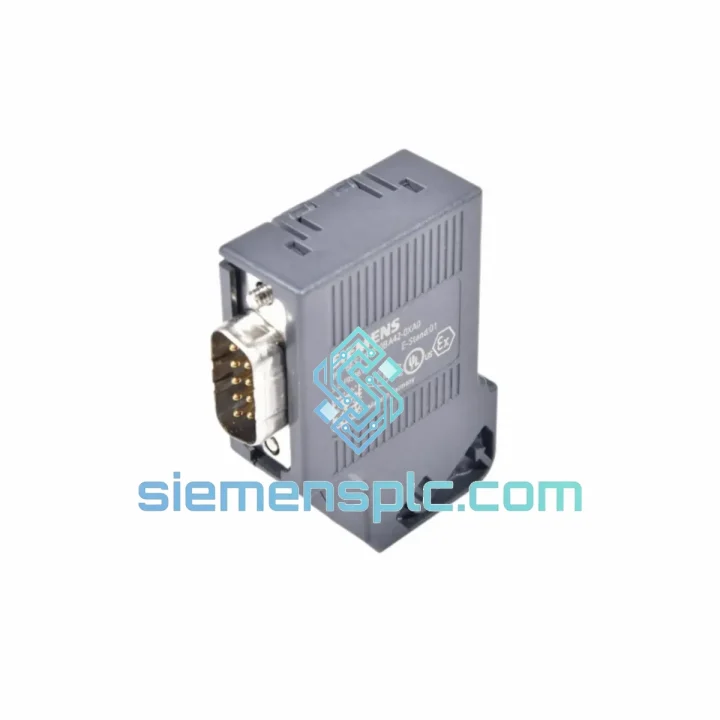

Siemens 6ES7972-0BA42-0XA0 PROFIBUS DP Bus Connector 90° — Stop the Clock on Your Downtime

Every minute a PROFIBUS segment is down, your production line is bleeding money. The 6ES7972-0BA42-0XA0 is one of the most frequently replaced field components in any SIMATIC S7 installation — not because it fails often, but because when it does, nothing on that bus segment talks until it is back in place. A sheared cable entry, a cracked housing from a cabinet door impact, a burned terminating resistor from a wiring fault — these are the scenarios that send maintenance teams scrambling. siemensplc.com keeps this connector in verified stock specifically so your scramble ends here, not three weeks from now waiting on a standard distribution lead time.

This is the 90° cable outlet variant with integrated switchable terminating resistor — the configuration used at bus endpoints and in tight cabinet layouts where a straight-exit connector would create unacceptable cable bend radius. If you are replacing a failed unit mid-segment, confirm the terminating resistor switch position before you close the cabinet: ON at the first and last node, OFF at every node in between. Getting this wrong will not damage hardware, but it will produce intermittent communication errors that look like a CPU fault and waste diagnostic time you do not have during a shutdown.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for the 6ES7972-0BA42-0XA0:

1. Cracked or sheared cable entry housing. The 90° strain relief is the mechanical weak point. Cabinet vibration combined with a stiff cable run creates a fatigue crack at the entry point over time. Symptom: intermittent BF (Bus Fault) LED on the CPU or DP slave, correlated with vibration events or temperature cycling. Diagnosis: flex the cable gently at the connector entry — if the fault clears and returns, the housing is compromised. Replace the connector; do not attempt to tape or clamp the crack.

2. Terminating resistor switch failure. The slide switch on the terminating resistor network degrades after repeated cycling or exposure to contamination. Symptom: persistent BF on the last node of a segment despite correct wiring. Diagnosis: measure resistance between pins A and B at the connector — should read approximately 220 Ω with termination ON, open circuit with termination OFF. A reading outside this range with the switch in the ON position confirms switch failure. Replace the connector.

3. Pin contact oxidation or mechanical damage. Seen most often in high-humidity environments or after a wiring fault that pushed excess current through the signal pins. Symptom: high error rate on the PROFIBUS segment, visible in the CPU diagnostic buffer as repeated slave station failures. Diagnosis: inspect pins A1, B1 (incoming) and A2, B2 (outgoing) under magnification — pitting, discoloration, or bent pins confirm contact damage. Do not attempt to clean or straighten — replace.

Replacement procedure — field checklist:

• Power down the affected DP slave or isolate the segment if a live swap is not permissible under your site safety rules.
• Note the terminating resistor switch position on the failed connector before removal — photograph it.
• Loosen the cable clamp screws and release the strain relief before attempting to unplug the connector body. Pulling the connector without releasing the clamp is the primary cause of cable damage during replacement.
• On the replacement unit, set the terminating resistor switch to match the failed unit’s position before insertion.
• Re-terminate the A and B signal wires to the correct screw terminals — A (green) to terminal A, B (red) to terminal B. Reversal will not damage hardware but will prevent communication.
• Torque the cable clamp screws to finger-tight plus a quarter turn — over-torquing cracks the thermoplastic housing.
• After insertion, monitor the CPU diagnostic buffer for 60 seconds before declaring the repair complete. A clean segment will show no new entries.

Baud rate note: The 6ES7972-0BA42-0XA0 supports all PROFIBUS DP baud rates up to 12 Mbit/s without any configuration or DIP switch setting on the connector itself. Baud rate is negotiated automatically by the master CPU. No connector-side adjustment is required.

Reliability in Harsh Conditions

The 6ES7972-0BA42-0XA0 is not a data center component pressed into industrial service — it is designed from the ground up for the cabinet environments where SIMATIC S7 systems actually live. The thermoplastic housing withstands continuous operating temperatures from -40°C to +85°C, covering the full range from unheated outdoor enclosures in northern climates to the radiant heat environments found adjacent to furnaces and press equipment.

Vibration resistance is validated to IEC 60068-2-6 test profiles — the same standard applied to the CPUs and I/O modules this connector serves. In practice, this means the snap-lock retention mechanism and internal contact assembly maintain reliable electrical continuity under the sustained vibration loads generated by compressors, presses, and conveyor drive systems mounted in the same structure as the control cabinet.

The IP20 rating is appropriate for cabinet-interior installation. In environments where the connector is exposed to coolant mist, cutting fluid aerosol, or wash-down splash, the standard practice is to install the connector inside a sealed enclosure rated to the ambient contamination level — the connector’s own rating is not a limitation in these cases, it is a design boundary that the installation must respect. Units that have been operating in contaminated environments without adequate enclosure protection are the ones most likely to present the pin oxidation failure mode described above.

Siemens’ manufacturing process for this connector family includes 100% electrical testing at the production stage — every unit leaving the factory has been verified for contact resistance, terminating resistor value, and mechanical retention force. The units stocked at siemensplc.com carry this factory verification as a baseline, supplemented by our own incoming inspection protocol covering physical condition, marking authenticity, and date code verification.

Global Express Logistics

siemensplc.com ships from Xiamen, China — a port city with direct express freight connections to every major global hub. When you place an urgent order, here is exactly what happens:

Same day (order confirmed before 14:00 CST): Unit is pulled from stock, inspected, and packaged in anti-static protective wrap with foam cushioning. Export documentation — commercial invoice, packing list, certificate of origin — is prepared in parallel. The shipment is handed to DHL or FedEx at the afternoon collection window.

Transit times from Xiamen by express courier:

• Southeast Asia (Singapore, Bangkok, Kuala Lumpur, Jakarta): 2–3 business days
• Middle East (Dubai, Riyadh, Doha, Abu Dhabi): 3–4 business days
• South Asia (Mumbai, Delhi, Karachi, Dhaka): 3–5 business days
• Europe (Frankfurt, Amsterdam, Warsaw, Istanbul): 4–6 business days
• North America (Los Angeles, Houston, Toronto, Mexico City): 4–6 business days
• Australia and New Zealand: 4–5 business days
• Africa (Johannesburg, Lagos, Nairobi, Cairo): 5–7 business days

Tracking numbers are issued within 2 hours of handover to the carrier and sent directly to the contact email provided at order. For shipments to destinations with known customs sensitivity, we pre-advise the correct HS code (8538.90) and declared value documentation to minimize clearance delays. Economy freight is available for non-urgent replenishment orders — lead time and cost confirmed at quotation.

For procurement teams managing multiple urgent line items simultaneously, we can consolidate multiple part numbers into a single shipment to reduce per-unit freight cost without extending the dispatch timeline.
