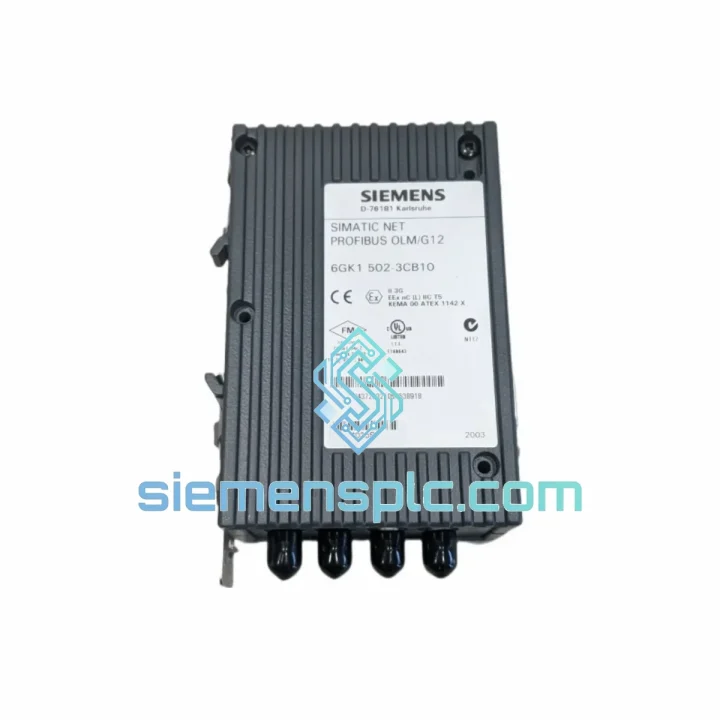

Siemens 6GK1502-3CB10 PROFIBUS Optical Link Module

6GK1502-3CB10 OLM/G12 — Stop the Clock on Your Downtime. Ship Today.

Every minute a PROFIBUS fiber segment is down, your production line is bleeding money. The Siemens 6GK1502-3CB10 OLM/G12 Optical Link Module is the exact part that bridges your RS-485 PROFIBUS DP bus to glass fiber — and when it fails, nothing else on the shelf will substitute. We stock it. We ship it fast. From Xiamen to your plant floor, DHL or FedEx, door to door.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6GK1502-3CB10 fails in predictable ways. Here is what 10 years of field calls have taught me about this module:

Fault 1 — No optical link LED (OL1/OL2 off): Nine times out of ten this is a dirty or cracked ST fiber connector, not a dead module. Before you pull the OLM, clean both ST ports with an IEC 61300-3-35 grade fiber cleaner and re-inspect under a scope. If the LED stays dark after cleaning, the optical transmitter diode has failed — replace the module.

Fault 2 — Intermittent PROFIBUS DP bus errors, DP master reports slave failures: Check the RS-485 termination on the Sub-D 9-pin connector. The OLM/G12 must sit at a physical bus end with termination resistors active (switch on the bus connector set to ON). If the OLM is mid-segment, termination must be OFF. Incorrect termination causes reflections that look identical to a failing OLM on a network analyzer.

Fault 3 — Baud rate mismatch after swap: The OLM/G12 auto-detects baud rate from the first valid PROFIBUS telegram it sees. If the DP master is not actively polling when you power up the replacement OLM, it may latch onto noise and lock to the wrong rate. Power cycle the OLM after the DP master is fully online and scanning.

Fault 4 — Ring topology fails to reconfigure after fiber break: In a redundant optical ring, each OLM has a dedicated ring port (port 2). Verify the ring cable is connected to port 2 on every node — not port 1. A single mis-wired node disables the entire ring redundancy function silently.

Replacement procedure (field-tested, 15-minute swap):

1. Document the current bus connector termination switch position before removal.
2. Power down the 24 V DC supply to the OLM only — do not drop the entire panel if avoidable.
3. Disconnect the Sub-D 9-pin PROFIBUS connector and both ST fiber patch cords. Label fiber ports 1 and 2 before removal.
4. Release the DIN rail clip and slide out the old module.
5. Mount the replacement 6GK1502-3CB10 on the DIN rail. No address switches, no DIP switches, no firmware upload required — this module is fully plug-and-play.
6. Reconnect fiber patch cords to the same ports (port 1 → port 1, port 2 → port 2). Restore the Sub-D connector with the same termination switch position.
7. Apply 24 V DC power. Wait for the OL1/OL2 LEDs to go solid green — typically within 3 seconds of the DP master resuming polling.
8. Verify DP master diagnostics show all slaves online. Job done.

No firmware matching required. The OLM/G12 has no user-configurable firmware. Hardware revision differences between units do not affect interoperability on the same PROFIBUS DP segment.

Reliability in Harsh Conditions

The 6GK1502-3CB10 was not designed for a clean server room. It was built for the environments where things actually break — steel mill switchgear rooms running at 55 °C ambient, chemical plant junction boxes with condensation cycles, automotive body shops where resistance welders dump 50 kA into the ground plane every 8 seconds.

The glass fiber optical path gives this module complete immunity to the electromagnetic interference that destroys copper PROFIBUS segments in those environments. There are no conducted emissions coupling into the data path from VFD motor drives, high-current bus bars, or arc welding equipment. The galvanic isolation between the RS-485 port and the optical ports eliminates ground loop currents that corrupt data on copper networks spanning multiple electrical panels.

The operating temperature range of 0 °C to +60 °C covers the vast majority of industrial cabinet environments. The IP20 enclosure is designed for DIN rail mounting inside a sealed control cabinet — the cabinet does the environmental work, the OLM does the signal conversion. In applications requiring outdoor or wash-down rated enclosures, the OLM is mounted inside a rated enclosure with appropriate cable glands.

Vibration performance meets the IEC 60068-2-6 sinusoidal vibration test profile applicable to industrial control equipment — relevant for installations on machine frames, compressor skids, or mobile equipment where the control cabinet sees continuous mechanical vibration. The DIN rail clip provides positive mechanical retention without relying on connector friction alone.

Units supplied through siemensplc.com are stored in ESD-safe, climate-controlled conditions and inspected for label authenticity, physical integrity, and connector condition before dispatch. We do not ship surplus stock that has been sitting in an uncontrolled warehouse for years.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected export hubs in Asia, with direct DHL and FedEx gateway access. Here is exactly how your order moves:

Order cut-off: 15:00 CST. Orders confirmed with payment before 15:00 CST ship the same business day. Orders after cut-off ship the following morning.

DHL Express Worldwide: Xiamen → Frankfurt/Leipzig hub → destination country gateway → local delivery. Transit time: 2–4 business days to Europe, 3–5 business days to North America, 2–3 business days to Southeast Asia. Real-time tracking from pickup to delivery.

FedEx International Priority: Xiamen → FedEx Guangzhou hub → destination. Transit time: 2–4 business days to the US, 3–5 business days to Europe. Door-to-door with customs clearance included in the service.

Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. For regulated industries requiring a Certificate of Conformance or material traceability documentation, notify us at order placement — we prepare these at no additional charge.

Customs: We declare goods accurately under HS Code 8517.62 (network communication apparatus). We do not under-declare value. Buyers are responsible for import duties in their country — contact us if you need a formal quotation with Incoterms DDP for duty-inclusive pricing.

For production-critical emergency shipments, contact us directly on WhatsApp before placing the order. We can confirm stock, prepare the shipment, and provide a tracking number within hours.
