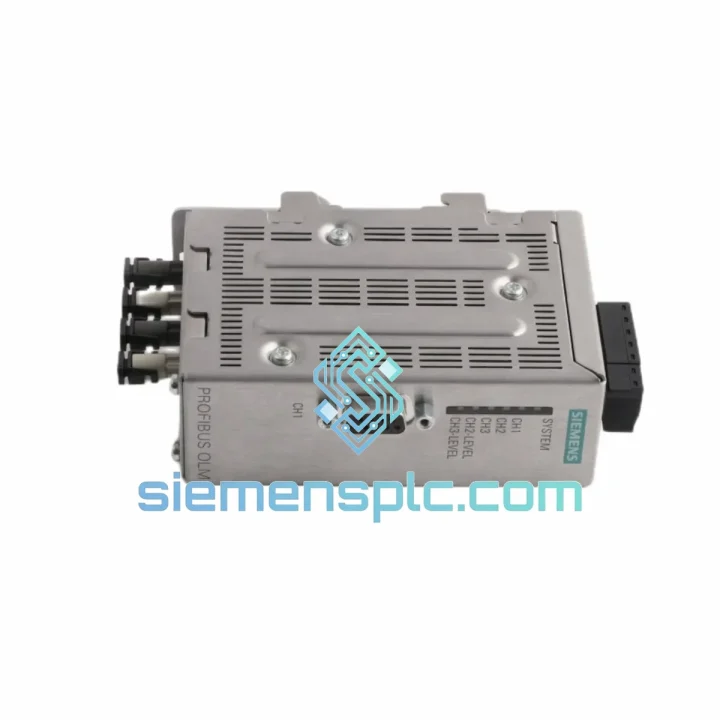

Siemens 6GK1503-3CB00 PROFIBUS Optical Link Module

6GK1503-3CB00 OLM/G12 V4.0 — Every Hour of Network Downtime Costs You Money. We Ship Today.

Your PROFIBUS ring just dropped. Slaves are offline. The HMI is screaming fault codes. You’ve already isolated the OLM as the culprit — now you need a replacement on-site before the next shift, not next week. The Siemens 6GK1503-3CB00 OLM/G12 V4.0 is in stock at our Xiamen warehouse. We process same-day. DHL Express puts it at your door in 24–72 hours, anywhere on the planet.

This is not a refurbished pull. Not a grey-market clone. Every unit we ship is 100% original Siemens, inspected, and traceable. If your line is down, stop reading and contact us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 6GK1503-3CB00:

• All slaves offline simultaneously — Classic OLM failure in a ring topology. The ring has broken at this node. Check the “BUS” LED: if it’s off or flashing red, the OLM is no longer forwarding frames. Swap the unit first before chasing fiber faults.
• Intermittent slave dropouts at high baud rates (6 Mbps / 12 Mbps) — Often caused by degraded SC connector contacts or a failing optical transmitter inside the OLM. Clean SC connectors with IPA first. If dropouts persist after cleaning, the OLM transmitter is dying — replace before it takes the whole ring down.
• “OLM” fault entry in STEP 7 / TIA Portal diagnostics — The OLM reports its own hardware fault via the GSD diagnostic mechanism. This is a definitive hardware failure indicator. No amount of power cycling will fix it.
• Power LED on, BUS LED off, LINK LEDs off — OLM is powered but both fiber links are dead. Check fiber patch cords and SC connectors first. If fiber is confirmed good with an optical power meter, the OLM receiver is failed.
• Asymmetric LINK LED behavior (one port up, one down) — One fiber path is broken. In a redundant ring, the network will still run on the surviving path, but you’ve lost redundancy. Locate and repair the broken fiber segment or replace the OLM if the port itself is faulty.

Replacement procedure — what you must verify before powering up the new unit:

1. No DIP switch configuration required. The OLM/G12 V4.0 uses fully automatic baud rate detection across the entire 9.6 kbps–12 Mbps range. Do not touch any internal switches — there are none exposed to the user on this version.
2. Fiber polarity. SC duplex connectors are keyed, but verify TX→RX and RX→TX cross-connection between adjacent OLMs. A reversed fiber pair will result in both LINK LEDs staying off even with a good OLM.
3. 24 V DC supply quality. Measure supply voltage at the OLM terminals under load. Anything below 18 V DC or with more than 200 mV ripple will cause erratic behavior that mimics OLM hardware failure.
4. Firmware compatibility in mixed V3.x / V4.0 rings. V4.0 is backward compatible with V3.x OLMs in the same ring. No firmware update or configuration change is needed. The ring will negotiate automatically.
5. Ring re-closure after replacement. After installing the new OLM and reconnecting both fiber paths, the ring redundancy manager (the OLM designated as ring master) will detect ring closure and suppress the redundancy alarm within 1–3 seconds. If the alarm persists beyond 10 seconds, recheck fiber connections.
6. Grounding. Ensure the DIN rail is properly grounded. Floating ground on the OLM in high-EMI environments (near VFDs or welding equipment) is a common cause of premature OLM failure and will kill the replacement unit too.

Diagnostic LED quick reference:

• PWR (green, steady) — 24 V DC supply OK
• BUS (green, steady) — PROFIBUS DP traffic detected on RS-485 port
• BUS (green, flashing) — Bus activity present but frame errors detected
• LINK 1 / LINK 2 (green, steady) — Optical fiber link established on respective port
• LINK 1 / LINK 2 (off) — No optical signal received; check fiber or remote OLM
• All LEDs off — No power; check 24 V supply and wiring

Reliability in Harsh Conditions

The OLM/G12 V4.0 was not designed for a climate-controlled server room. It was built for the floor — automotive body shops with welding robots generating broadband EMI, chemical plants with corrosive atmospheres, steel mills where ambient temperatures push 55 °C and vibration is constant. Siemens validated this module against IEC 61131-2 mechanical and climatic requirements, including sinusoidal vibration testing at 10–57 Hz / 0.075 mm amplitude and 57–150 Hz / 1 g, and shock testing at 15 g / 11 ms half-sine pulse.

The optical fiber medium itself eliminates the primary failure mode of copper-based PROFIBUS in high-EMI environments: induced noise. Glass fiber carries no electrical signal and is completely immune to electromagnetic interference from variable frequency drives, contactors, and high-current bus bars running parallel to cable trays. In plants where copper PROFIBUS segments were experiencing chronic CRC errors and slave dropouts, migrating to OLM-based optical segments has routinely eliminated the problem entirely.

The SC duplex connectors on the 6GK1503-3CB00 are rated for a minimum of 500 mating cycles — sufficient for the operational lifetime of the module in a fixed installation. The optical transmitter (LED-based, not laser) is rated for continuous operation at the specified temperature range without derating. In practice, units installed in the early V3.x generation have been running continuously in automotive plants for over 15 years without replacement.

For environments exceeding the standard 0–60 °C operating range, the extended temperature variant 6GK1503-3CB10 (OLM/G12-EEC V4.0) covers −40 °C to +70 °C. If your application is at the temperature boundary, specify the EEC version — contact us for availability.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected export hubs in Asia, with direct DHL Express and FedEx International Priority service to over 220 countries and territories. When your line is down, the last thing you need is a shipment sitting in customs or waiting for a weekly consolidation flight.

Our standard export process for urgent orders:

1. Order confirmation by 14:00 CST → same-day picking, inspection, and ESD-safe packaging.
2. Commercial invoice and packing list prepared with accurate HS code (8517.62) and declared value for smooth customs clearance.
3. DHL Express or FedEx International Priority — tracking number issued within 2 hours of handover to carrier.
4. Estimated transit times: Southeast Asia 1–2 days | Europe 2–3 days | North America 2–3 days | Middle East 2–4 days | South America 3–5 days.
5. Customs documentation support: We provide Certificate of Origin, COC, and any additional documentation required for import clearance in your country upon request.
6. Real-time tracking shared via email and WhatsApp immediately after shipment.

For orders requiring delivery to a specific shift start time or plant shutdown window, contact us directly on WhatsApp. We coordinate with DHL Express on time-definite delivery options where available in your region.
