Siemens 6GK7542-5DX00-0XE0 Communication Processor – CP 5420

Siemens 6GK7542-5DX00-0XE0 CP 5420: PROFIBUS DP Communication Processor for SIMATIC S7-1500

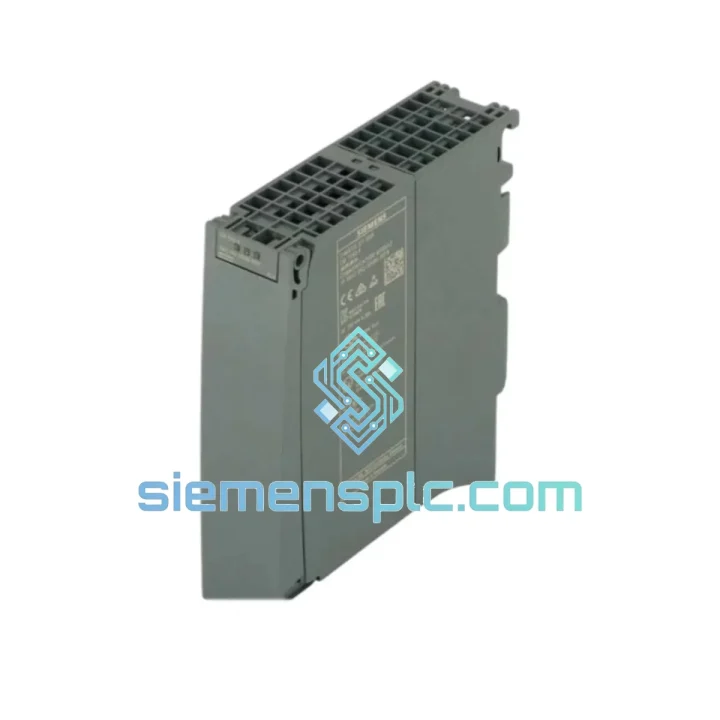

The Siemens 6GK7542-5DX00-0XE0 is the CP 5420 communication processor within the SIMATIC NET product family, engineered specifically for the S7-1500 and ET 200MP controller platforms. Its primary function is to offload PROFIBUS DP master and slave protocol handling from the CPU’s main execution cycle, preserving deterministic scan-time performance even under high field-device polling loads. The module connects to the S7-1500 backplane via the high-speed local bus, operating at a sustained internal transfer rate that prevents communication latency from propagating into the PLC’s real-time control loop.

At the field level, the CP 5420 supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s on a single RS-485 interface (Sub-D 9-pin female connector). It can simultaneously operate as a Class 1 DP master — polling up to 125 DP slave stations — and as a DP slave, enabling multi-master topologies where a supervisory controller or HMI can read process data directly from the S7-1500 station without additional gateway hardware. This dual-role capability is configured natively within TIA Portal V13 SP1 and later, with no requirement for external configuration tools or proprietary software add-ons.

The module is particularly relevant in retrofit and brownfield integration scenarios. When an existing plant operates a PROFIBUS DP network with distributed I/O, variable-frequency drives, or intelligent field instruments, the CP 5420 allows engineers to migrate the CPU platform from S7-300 or S7-400 to S7-1500 while retaining the entire field wiring infrastructure. GSD files from legacy DP slaves are re-imported into TIA Portal, and the CP 5420 assumes the master role without requiring changes to field device parameterization — provided the DP slave firmware is IEC 61158-compliant.

Isochronous mode (PROFIBUS DP-V2 isochronous) is supported, enabling time-synchronized communication cycles between the CP 5420 and compatible DP slaves. This is a prerequisite for closed-loop motion control applications where axis position data must arrive at the CPU within a bounded jitter window — typically below ±1 µs for servo drive coordination. The isochronous cycle is locked to the CPU’s OB61 interrupt, ensuring that field data acquisition and control output are phase-aligned with the PLC scan cycle.

Power is drawn entirely from the S7-1500 backplane bus at DC 24 V, with a consumption of approximately 4.5 W. No external power supply or auxiliary wiring is required for the module itself. The operating temperature range of 0 °C to +60 °C and IP20 protection rating position the CP 5420 for standard control cabinet installation. For harsh environments, the module can be paired with appropriate cabinet climate control to maintain thermal compliance.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CP 5420 implements a dedicated PROFIBUS ASIC (application-specific integrated circuit) that handles the complete DP protocol stack — including token ring management, frame encoding/decoding, and slave polling sequencing — independently of the S7-1500 CPU’s main processor. This architectural separation means that a temporary increase in PROFIBUS bus load, such as acyclic DP-V1 parameter read/write requests from a SCADA system, does not extend the CPU’s OB1 cycle time. The backplane interface between the CP 5420 and the CPU uses a high-speed parallel bus with hardware arbitration, ensuring that process image data is transferred to the CPU’s input/output area within a bounded latency window on every scan cycle.

The RS-485 physical layer driver circuit incorporates galvanic isolation between the PROFIBUS segment and the module’s internal logic. This isolation barrier — typically rated at 500 V AC — prevents ground loop currents from corrupting signal integrity on long cable runs and protects the module’s internal circuitry from transient overvoltages induced by nearby high-power switching equipment. The isolation also satisfies the EMC requirements of IEC 61000-4-5 (surge immunity) and IEC 61000-4-4 (electrical fast transient/burst immunity), which are standard test criteria for industrial automation equipment installed in environments with variable-frequency drives or large motor contactors.

The module’s firmware implements a watchdog mechanism that monitors the PROFIBUS token rotation time. If the token is not received within the configured watchdog interval — a condition that indicates a bus fault or master failure — the CP 5420 asserts a diagnostic interrupt to the CPU, allowing the application program to execute a controlled fault response rather than entering an undefined state. For redundant S7-1500R/H systems, the CP 5420 supports the system’s redundancy arbitration protocol, ensuring that the standby CPU maintains a synchronized copy of the PROFIBUS process image and can assume master control within the system’s switchover time specification.

System Integration Benefits

• CPU Cycle Time Preservation: Protocol processing is handled by the CP 5420’s dedicated ASIC, preventing PROFIBUS communication overhead from extending the S7-1500 OB1 scan time — critical for high-speed PID loops and motion sequencing.
• Simultaneous Master and Slave Operation: A single module can act as DP master to field devices while simultaneously responding as a DP slave to a supervisory controller, eliminating the need for a separate gateway or proxy device.
• Isochronous DP-V2 Support: Time-synchronized communication cycles locked to OB61 enable closed-loop servo axis coordination with jitter below ±1 µs, meeting the timing requirements of distributed motion control architectures.
• Native TIA Portal Integration: Hardware configuration, GSD file management, diagnostic monitoring, and firmware updates are performed entirely within TIA Portal — no separate SIMATIC NET configuration tool is required from V13 SP1 onward.
• Acyclic DP-V1 Services: Supports Class 1 and Class 2 acyclic read/write services for online parameter access to intelligent field devices (e.g., drive parameterization, transmitter calibration) without interrupting cyclic data exchange.
• Integrated Diagnostic Transparency: Module and slave diagnostics are mapped directly into the S7-1500 diagnostic buffer and accessible via standard RDIAG instructions, providing structured fault data — station address, error class, error code — without requiring custom diagnostic polling routines.
• Brownfield Retrofit Compatibility: Accepts GSD files from all IEC 61158-compliant DP slaves, enabling direct reuse of existing field device configurations when migrating from S7-300 CP 342-5 or S7-400 CP 443-5 platforms.
• Redundant System Support: Compatible with S7-1500R/H redundant CPU configurations, maintaining synchronized process image data across primary and standby CPUs to support bumpless switchover during fault conditions.
• PROFIBUS PA Gateway Path: When paired with a DP/PA coupler (e.g., 6ES7157-0AC83-0XA0), the CP 5420 extends connectivity to PROFIBUS PA field instruments — pressure transmitters, flow meters, positioners — without requiring a separate PA master module.
• Scalable Network Topology: Multiple CP 5420 modules can be installed in the same S7-1500 rack to expand total DP slave capacity beyond 125 stations, with each module independently managed within TIA Portal’s hardware configuration.
