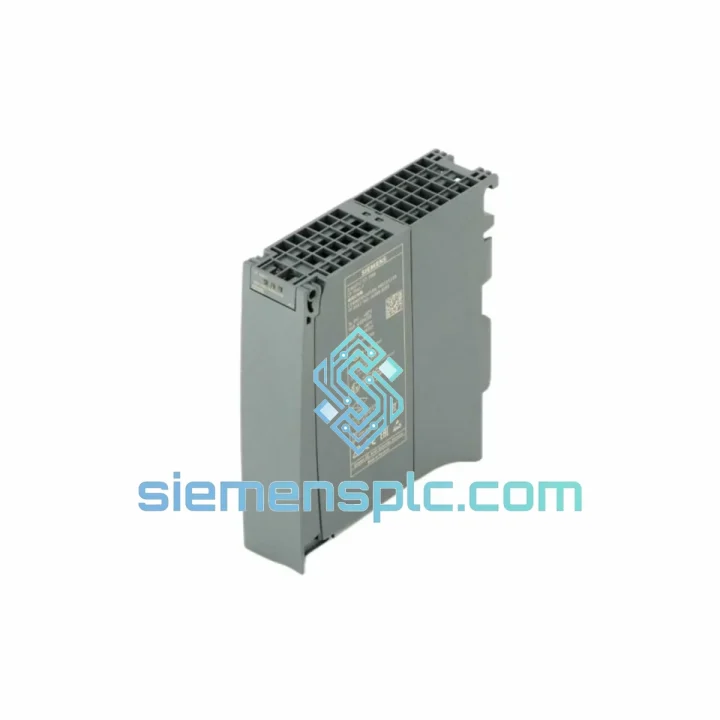

Siemens 6GK7543-1AX00-0XE0 Communication Processor – CP 1543-1

Siemens 6GK7543-1AX00-0XE0 — Dedicated Communication Processor for SIMATIC S7-1500 Control Architectures

The 6GK7543-1AX00-0XE0 is the full-featured variant of the SIMATIC NET CP 1543-1 series, engineered specifically to serve as the primary Ethernet gateway for SIMATIC S7-1500 controllers. Its architectural role is not supplementary — it is a purpose-built communication coprocessor that assumes complete ownership of all Ethernet-layer tasks, removing that processing burden from the S7-1500 CPU’s application cycle. In distributed control architectures where deterministic scan times are non-negotiable, this separation of concerns between control logic and network communication is a fundamental design requirement, not an optional enhancement.

The module integrates a 10/100/1000 Mbit/s auto-negotiating RJ45 port, a stateful packet inspection firewall, IPsec VPN termination for up to 32 simultaneous tunnels, and a native OPC UA server/client stack — all within a single 35 mm wide S7-1500 slot. It draws power exclusively from the S7-1500 backplane bus at DC 24 V, requiring no external power wiring. Configuration is performed entirely within STEP 7 TIA Portal V13 SP1 or higher, with no separate software license required for standard commissioning tasks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CP 1543-1’s internal architecture separates the communication stack execution from the S7-1500 CPU’s OB-driven program cycle through a dedicated microprocessor and local RAM buffer. This means that TCP/IP stack processing, OPC UA session management, and VPN tunnel maintenance all occur on the CP’s own processor, with results exchanged to the CPU via the S7-1500 backplane bus using a defined data record interface. The CPU scan cycle is therefore not extended by network latency events — a critical property in motion control or safety-rated applications where cycle time overruns trigger watchdog faults.

The integrated stateful firewall operates at Layer 3/4 and maintains a connection state table for all active TCP sessions. Unlike simple ACL-based packet filters, stateful inspection tracks the full TCP handshake sequence and rejects packets that do not conform to an established session state — providing meaningful protection against TCP session hijacking and spoofed RST injection attacks common in flat OT networks. The firewall rule set is configured in TIA Portal and stored in the CP’s non-volatile flash memory, surviving power cycles without requiring CPU program intervention.

IPsec tunnel termination is handled by a dedicated cryptographic engine within the CP, supporting AES-256-CBC for payload encryption and SHA-256 for integrity verification. IKEv2 is the preferred key exchange protocol, offering faster re-keying and improved resistance to man-in-the-middle attacks compared to IKEv1. With up to 32 simultaneous tunnels, the module can maintain encrypted links to multiple remote engineering stations, SINEMA Remote Connect servers, or peer PLCs simultaneously — without any CPU program overhead.

The OPC UA stack implements the DA (Data Access) and Alarms & Conditions information models. The server exposes S7-1500 data blocks, I/O tags, and diagnostic objects as OPC UA nodes, with configurable sampling intervals down to the CP’s internal polling cycle. The client function allows the CP to actively subscribe to OPC UA servers on peer devices — enabling peer-to-peer data exchange without requiring a central SCADA intermediary. This architecture supports edge computing scenarios where local data aggregation and pre-processing occur at the controller level before forwarding to cloud endpoints.

EMC hardening on the CP 1543-1 follows the NAMUR NE 21 recommendation for electromagnetic compatibility of process control equipment. The RJ45 port incorporates transformer-coupled isolation with a common-mode rejection ratio sufficient to suppress ground loop currents typical in large industrial facilities with distributed earthing systems. The module’s PCB layout uses a split ground plane strategy, separating the digital logic ground from the chassis ground reference, which reduces conducted emissions on the backplane bus below EN 61000-6-4 Class A limits.

System Integration Benefits

• Deterministic CPU Scan Preservation: All Ethernet stack processing executes on the CP’s dedicated processor. The S7-1500 CPU’s OB1 cycle time is unaffected by network congestion, VPN re-keying events, or OPC UA session establishment — a measurable advantage in applications with cycle time budgets below 10 ms.
• Zero-Wiring Power Integration: The module draws DC 24 V exclusively from the S7-1500 backplane bus. No additional terminal block wiring, fusing, or power supply sizing is required for the CP itself, reducing panel engineering time and potential wiring fault points.
• Native TIA Portal Workflow: Firewall rules, VPN certificates, OPC UA node configuration, and IP addressing are all managed within the same TIA Portal project as the CPU program. There is no separate configuration tool, no additional license, and no risk of configuration drift between the PLC program and the network security policy.
• Transparent Diagnostic Visibility: The CP 1543-1 reports its operational status — active VPN tunnels, firewall rule hit counters, OPC UA session count, and Ethernet link state — as readable data records accessible from the CPU program via SFB52/SFB53 or via the TIA Portal online diagnostics view. Maintenance engineers can query CP health without physical access to the panel.
• Scalable Security Zoning: The integrated firewall enables the S7-1500 to reside in a dedicated OT security zone while maintaining controlled, policy-enforced communication paths to the IT network and cloud endpoints — directly supporting IEC 62443-3-3 zone and conduit model implementation without external firewall hardware.
• OPC UA as the MES/SCADA Interface: By exposing S7-1500 data natively via OPC UA, the CP eliminates the need for OPC DA/DCOM bridges, proprietary driver licenses, or polling-based SCADA drivers. MES systems, historians, and cloud IoT platforms connect using standardized OPC UA client libraries — reducing integration project scope and long-term maintenance dependency on proprietary middleware.
• Brownfield Protocol Bridging: ISO-on-TCP support allows the CP to communicate with legacy S7-300/S7-400 controllers and third-party devices using the S7 communication protocol, enabling phased migration strategies where new S7-1500 controllers must coexist with installed base equipment on the same network segment.
• Remote Access Without External Hardware: IPsec VPN termination on the CP itself means that secure remote access for remote programming, diagnostics, and firmware updates does not require a separate VPN router or security appliance in the panel. This is particularly relevant for distributed installations — pump stations, remote substations, or offshore platforms — where panel space and hardware cost per site are constrained.

Quality Assurance & Global Logistics

Every 6GK7543-1AX00-0XE0 unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol before dispatch from our Xiamen, China facility.

Inspection Protocol: Each unit undergoes visual examination for physical integrity — housing, connector pins, label legibility, and firmware version marking. Barcode and serial number are cross-referenced against manufacturer records where available. ESD-sensitive handling procedures (IEC 61340-5-1) are applied throughout the inspection and packaging process.

Packaging: Modules are packed in anti-static shielding bags, placed in foam-lined inner cartons, and sealed in export-grade outer cartons with moisture-barrier desiccant. Cartons are labeled with order reference, part number, quantity, and destination for customs clearance accuracy.

Shipping from Xiamen, China: Xiamen is a major international logistics hub with direct air freight connections to Frankfurt, Amsterdam, Dubai, Los Angeles, Singapore, and Tokyo. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers for time-sensitive orders. Sea freight consolidation is available for bulk orders. Typical transit times: Europe 3–5 business days (air), Southeast Asia 2–3 business days (air), North America 4–6 business days (air).

Warranty: 12 months from the date of shipment. Units exhibiting manufacturing defects or functional failures under normal operating conditions within the warranty period are replaced or credited. Warranty claims require photographic documentation and a written fault description submitted to [email protected].
