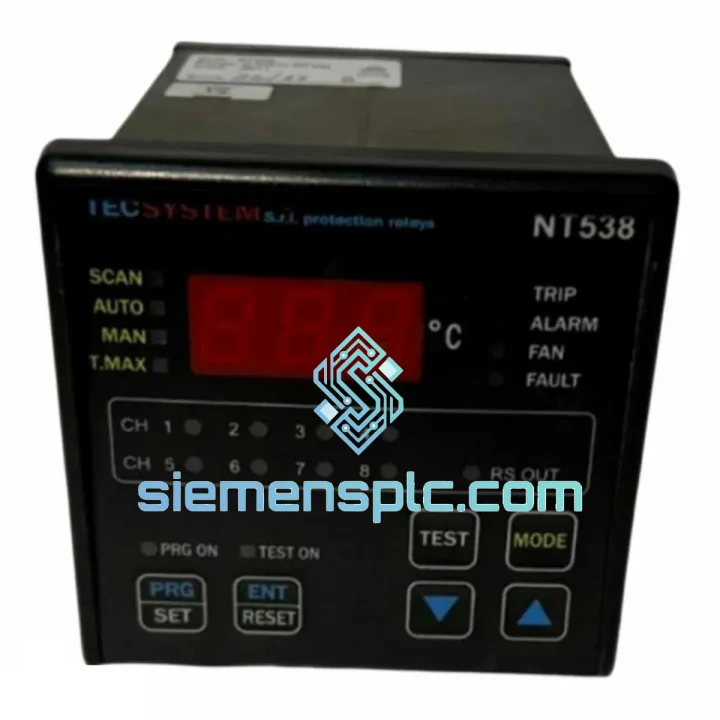

TECSYSTEM NT538 Thermal Protection Relay

NT538 Down? Every Minute of Motor Downtime Is Money Burning — Get a Replacement Unit Shipped Today

A tripped NT538 means your motor is offline. Whether it’s a compressor on a chiller plant, a pump in a water treatment station, or a drive motor in a rolling mill — the clock starts the moment that relay goes dark. We stock TECSYSTEM NT538 units in Xiamen and ship globally via DHL Express and FedEx Priority. Most orders clear customs and land on your bench within 3–5 business days. No waiting on factory lead times. No minimum order quantity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the old unit, confirm the actual failure mode. The NT538 fails in a handful of predictable ways — misdiagnosing the root cause means the replacement trips again within hours.

Fault 1 — Nuisance Trip, Motor Cold: The relay trips immediately on motor start even though winding temperature is normal. Nine times out of ten this is a degraded PTC thermistor, not the NT538 itself. Measure thermistor resistance at ambient: a healthy PTC reads 100–250 Ω at 25 °C. Anything above 3.5 kΩ at ambient means the thermistor has failed open — the NT538 interprets this as an overtemperature condition and trips. Replace the thermistor before swapping the relay.

Fault 2 — No Trip on Genuine Overtemperature: Motor windings are hot but the NT538 does not trip. Check the sensor wiring continuity first — a broken wire presents as a short to the relay input on some NT500 variants, which can suppress the trip signal. If wiring is intact, the relay output contact may have welded closed due to a prior overcurrent event. Measure contact resistance across the trip relay terminals: anything below 1 Ω with the relay de-energized confirms a welded contact. The unit must be replaced.

Fault 3 — Relay Chatters / Intermittent Trip: Usually caused by supply voltage instability on the 24–240 V AC/DC input rail. The NT538’s universal input is robust, but brownouts below 20 V DC or high-frequency noise on AC lines can cause erratic relay behavior. Scope the supply rail before condemning the unit. If supply is clean and chattering persists, the internal comparator circuit has drifted — replace the unit.

Replacement Procedure (field-verified steps):

1. Isolate the motor and lock out the contactor control circuit. Verify zero voltage on the NT538 supply terminals.
2. Photograph the existing wiring before disconnecting — terminal numbering on NT500 series units is compact and easy to mis-wire under pressure.
3. Note the reset mode jumper or DIP switch position on the old unit (manual vs. automatic). The new NT538 ships in automatic reset by default — if your application requires manual reset, reconfigure before energizing.
4. Transfer sensor wiring terminal by terminal. Do not bundle PTC sensor leads with power cables — keep sensor wiring separated to avoid induced noise causing false trips.
5. Apply supply voltage and verify the green LED illuminates. If the trip LED activates immediately, the thermistor resistance is above the trip threshold — check sensor before proceeding.
6. Perform a functional test: apply a resistor substituting a tripped thermistor (>3.5 kΩ) to confirm the relay trips and the alarm output activates. Restore the actual sensor and verify normal operation.
7. Document the replacement in your maintenance log with the unit serial number and date.

Configuration Note: The NT538 does not require firmware flashing or software commissioning. It is a hardwired relay — configuration is limited to the reset mode selector and sensor type compatibility. Confirm your existing sensors are PTC or PT100/PT1000 before ordering; the NT538 cannot be field-converted between sensor types.

Reliability in Harsh Conditions

The NT538 was not designed for a climate-controlled server room. TECSYSTEM built the NT500 series for the environments where motors actually live — pump stations with condensation dripping off the ceiling, steel mill control panels baking at 55 °C ambient, offshore platform cabinets subjected to continuous vibration from diesel generators running 24/7.

The plastic DIN-rail housing is rated IP20 for panel installation, but the internal PCB conformal coating provides an additional barrier against humidity and airborne contaminants. Operating range of −20 °C to +60 °C covers the vast majority of industrial panel environments globally, including unheated outdoor enclosures in northern climates and tropical coastal installations.

The universal 24–240 V AC/DC supply input is not just a convenience feature — it is a reliability feature. In facilities where supply voltage fluctuates due to generator switching or load shedding, the NT538 maintains stable operation across the full input range without requiring a regulated supply. The relay output contacts are rated 250 V AC / 5 A, providing adequate margin for the inductive loads typical in motor control circuits without contact degradation over normal service life.

Vibration resistance is inherent in the DIN-rail snap-mount design — no screws to loosen, no PCB connectors to work free under mechanical stress. Field experience across pump, compressor, and conveyor applications confirms the NT538 routinely achieves 8–12 years of service life in continuous-duty installations when the protected motor is properly maintained.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express networks. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard export process for NT538 orders:

• Order confirmed before 14:00 CST — same-day dispatch to DHL/FedEx sort facility
• Commercial invoice and packing list — prepared with accurate HS code (8536.49) for smooth customs clearance
• Tracking number — provided within 4 hours of dispatch via email
• Transit times (typical): Southeast Asia 2–3 days | Europe 3–5 days | North America 4–6 days | Middle East 4–7 days | South America 6–10 days
• DDP (Delivered Duty Paid) available for EU, UK, and US destinations — we handle import duties so your goods clear without delays at customs
• Emergency freight — for critical plant shutdowns, contact us directly on WhatsApp for next-flight-out courier options

Every shipment is packed in anti-static foam with outer carton reinforcement. Relay units are individually bagged with desiccant. We have zero tolerance for transit damage — if a unit arrives damaged, we reship at our cost, no questions asked.
