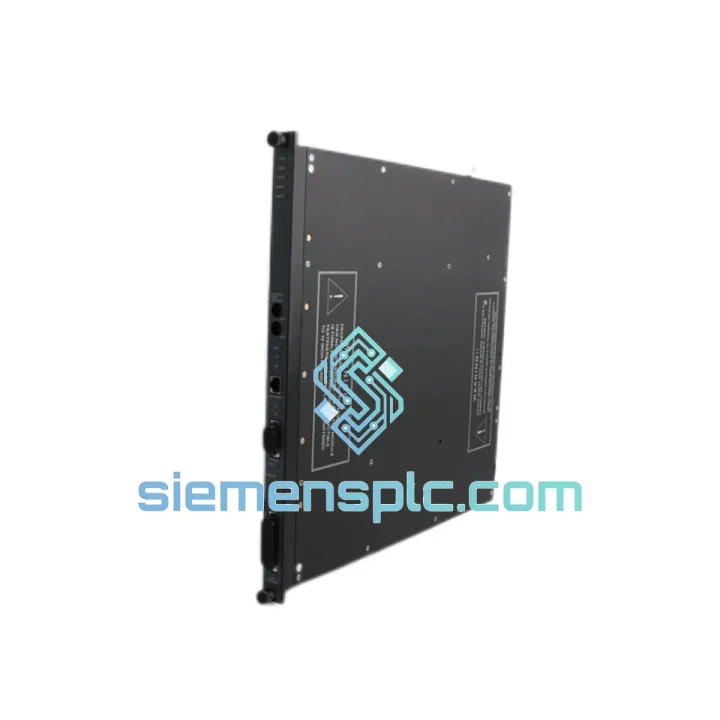

TRICONEX 3008N Analog Input Module – Tricon TMR

TRICONEX 3008N: Analog Signal Acquisition Processor in Triple Modular Redundant Safety Architecture

The TRICONEX 3008N is a main-slot analog input processor engineered for deployment within Triconex Triple Modular Redundant (TMR) safety systems. Its primary function within a control loop is deterministic acquisition, conditioning, and cross-channel validation of analog field signals — typically 4–20 mA current loops or 1–5 V dc voltage inputs — before presenting voted data to the Tricon Main Processor for safety logic execution. Unlike conventional single-channel I/O cards, the 3008N participates in a three-leg hardware voting architecture where each of the three installed instances independently samples the same field signal. The TMR voter then applies a 2-out-of-3 (2oo3) selection algorithm at the hardware level, producing a single fault-tolerant process value that is immune to single-point hardware failures without process interruption.

In safety instrumented systems (SIS) governed by IEC 61511, the analog input subsystem is a critical element of the safety instrumented function (SIF) loop. The 3008N’s architecture is designed to maintain SIL 3 capability (IEC 61508) by combining hardware redundancy with continuous self-diagnostics. Each module independently monitors its own A/D converter linearity, reference voltage stability, and channel-to-channel isolation integrity. Diagnostic coverage exceeding 90% is achieved through these on-board routines, which report fault status to the TriStation 1131 programming environment in real time without requiring a process shutdown or module extraction.

The module occupies a main I/O slot in the Tricon chassis and communicates with the Main Processor via the Tricon proprietary backplane bus. This bus operates at a fixed scan cycle synchronized to the system’s configured task period, ensuring that analog data latency is bounded and predictable — a prerequisite for time-critical safety functions such as high-integrity pressure protection (HIPPS) and emergency shutdown (ESD) logic. The 3008N is field-configurable for input range and engineering unit scaling through TriStation 1131, with no hardware jumper changes required.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: Each analog input channel on the 3008N passes through a dedicated optocoupler stage before reaching the A/D conversion circuitry. This galvanic isolation barrier serves two functions: it prevents ground loop currents from corrupting the measurement signal, and it limits the propagation of field-side transients — including lightning-induced surges and motor drive switching noise — into the module’s digital processing domain. The isolation voltage rating of 500 V dc channel-to-backplane is sufficient for most industrial field wiring environments operating at 24 V dc loop power.

EMC Design and Shielding: The 3008N’s PCB layout follows a strict separation between analog front-end and digital processing zones, with a dedicated analog ground plane that connects to chassis earth at a single point to avoid circulating currents. Decoupling capacitors are placed at each power rail entry point, and the module housing provides continuous metallic shielding that attenuates radiated emissions and susceptibility in accordance with IEC 61000-4 series test levels. This design allows the module to operate in environments with variable-frequency drives, high-current contactors, and RF transmitters in close proximity without measurement degradation.

2oo3 Voting and Fault Masking: The three independent instances of the 3008N — one per TMR leg — each deliver their digitized channel values to the Tricon Main Processor via the backplane bus. The Main Processor’s voter logic compares the three values and selects the median, effectively masking a single failed or drifted module without generating a spurious trip or requiring operator intervention. If one module’s value deviates beyond a configurable tolerance band, the system flags a maintenance alarm while continuing to operate on the remaining two legs. This architecture achieves both high availability (no spurious shutdown from single hardware failure) and high safety integrity (fault detection without masking).

On-Board Diagnostics: The 3008N continuously executes self-test routines during normal operation. These include A/D converter reference voltage checks, channel open-wire detection (for 4–20 mA loops), and backplane communication integrity verification. All diagnostic results are time-stamped and logged in the Tricon system event journal, accessible via TriStation 1131 without interrupting the running application. This continuous diagnostic execution is the mechanism by which the module achieves its >90% diagnostic coverage figure — a key parameter in the SIL verification calculation for the overall safety instrumented function.

System Integration Benefits

• Deterministic scan latency: The 3008N’s backplane communication is synchronized to the Tricon system clock, guaranteeing that analog data is presented to the safety logic at a fixed, bounded interval. This eliminates jitter-induced timing uncertainty in time-critical SIF calculations such as rate-of-change detection for pressure excursion events.
• Zero-downtime module replacement: The TMR architecture allows a single 3008N to be extracted and replaced while the system remains in operation on the remaining two legs. The replacement module automatically synchronizes its configuration and firmware state from the active legs upon reinsertion, with no TriStation download required.
• Unified engineering environment: All channel configuration — input range, engineering unit scaling, alarm thresholds, and diagnostic enable/disable — is managed within TriStation 1131. No hardware DIP switches or jumpers are present on the 3008N, eliminating configuration errors during module swap and simplifying as-built documentation.
• Transparent fault reporting: Each 3008N reports its health status, channel-level diagnostic alarms, and communication integrity to the Tricon system event log in real time. Operators and maintenance engineers can identify the specific failed channel and module leg without physical inspection, reducing mean time to repair (MTTR).
• SIL 3 loop integrity preservation: Because the 3008N maintains SIL 3 capability at the module level, the overall SIF loop can achieve SIL 3 without requiring additional redundancy at the field transmitter level in many configurations, reducing installed hardware cost.
• Compatibility with HART field devices: The 3008N’s 4–20 mA input channels are compatible with HART-enabled field transmitters. HART communication can be superimposed on the analog loop for remote transmitter diagnostics and configuration, extending the diagnostic transparency of the SIF loop to the field device level.
• Scalable I/O architecture: The 3008N main processor module can be paired with TRICONEX 3007 Analog Input Expander Processor modules to increase the analog input channel count within the same chassis, without adding a new main processor slot. This allows the I/O architecture to scale with process expansion while preserving the existing TMR configuration.
• Long-term platform support: The Tricon TMR platform has an established installed base in safety-critical industries globally. TRICONEX (Schneider Electric) maintains long-term parts availability and firmware support for the 3008N, protecting the capital investment in the safety system over a typical 20–30 year plant lifecycle.

Quality Assurance & Global Logistics

Every TRICONEX 3008N module dispatched from our Xiamen, China facility is sourced as genuine OEM hardware — no third-party remanufactures or counterfeit substitutes. Each unit undergoes a structured pre-shipment inspection protocol: visual examination of PCB, connector pins, and module label for physical integrity; power-on functional test verifying backplane communication and channel response; firmware version documentation matched to the module label; and anti-static packaging with humidity indicator cards sealed inside the shipping carton.

Traceability documentation — including source records, inspection reports, and firmware version logs — is available upon request for customers with IEC 61511 management of functional safety documentation requirements. For orders requiring third-party inspection or certificates of conformance, arrangements can be made prior to shipment.

Logistics from Xiamen covers all major global destinations. Standard air freight to Europe, North America, the Middle East, and Southeast Asia typically achieves 3–7 business days door-to-door. Express courier options (DHL, FedEx, UPS) are available for urgent requirements. All shipments are fully insured and tracked. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country customs requirements. HS code classification and ECCN review are completed prior to dispatch for controlled-destination shipments.
