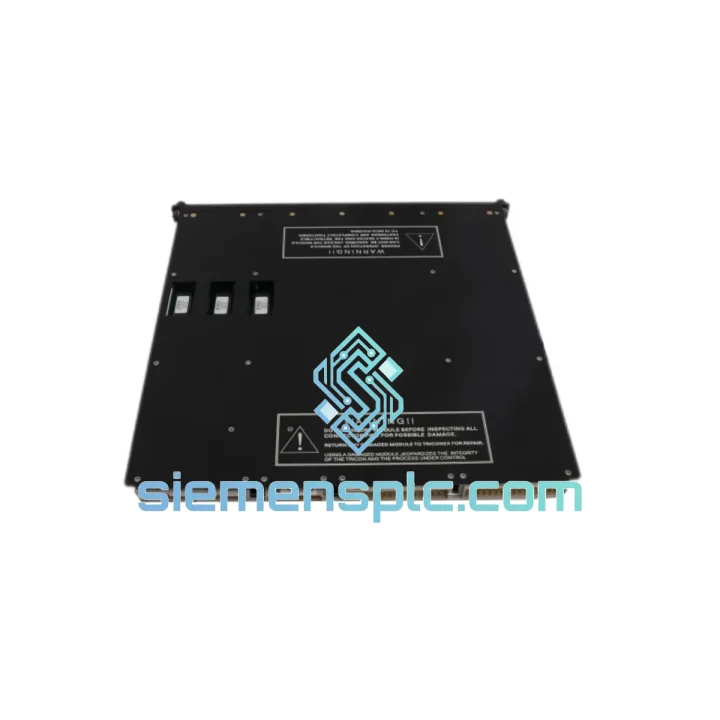

TRICONEX 3564 Digital Input Module

TRICONEX 3564 — Stop the Bleeding: Get Your TMR Safety System Back Online Before the Next Shift

Your Tricon chassis is faulted. The 3564 slot is red. Production is down and every minute costs real money. You don’t need a brochure — you need a module on a plane tonight. We stock the TRICONEX 3564 32-Channel Digital Input Module in Xiamen and ship DHL Express globally. Most orders clear customs and land on your bench within 3–5 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling faulted cards in refineries and LNG terminals, here’s what actually matters when you’re swapping a 3564 under pressure:

1. Confirm the fault is the module, not the field wiring. Before you pull the card, check the Tricon diagnostic display. A solid red LED on the DI module with no corresponding field fault on adjacent channels almost always points to internal module failure — not a field short. If you’re seeing intermittent faults that clear on power cycle, suspect the backplane connector first; reseat the card before ordering a replacement.

2. Hot-swap procedure. The 3564 supports hot-swap within a running TMR chassis — you do not need to shut down the system. However, follow the sequence strictly: notify the control room, inhibit the affected I/O group in TriStation, physically extract the faulted card, insert the replacement, wait for the green LED sequence (typically 15–30 seconds for self-test), then re-enable the I/O group. Skipping the inhibit step risks a spurious trip on a 2oo3 voted loop.

3. Firmware and hardware revision matching. The 3564 has gone through multiple hardware revisions (Rev A through Rev D and beyond). Mixing revisions within the same chassis slot is generally safe, but if your TriStation project was compiled against a specific module revision, a mismatch can generate a non-critical diagnostic warning. Pull the revision label from the faulted card before disposal and confirm your replacement matches or is a later revision.

4. No DIP switches or address configuration required. Unlike some older I/O platforms, the 3564 uses automatic slot addressing via the Tribus backplane. Insert the card, and TriStation will recognize it at the correct slot address automatically. There is no manual addressing, no jumper setting, and no firmware download required at the module level.

5. Common fault codes to know:

• DI Module Failure (Fault Code 0x31xx): Internal self-test failure. Module must be replaced. Do not attempt to reset and re-use.
• DI Channel Disagreement (Fault Code 0x32xx): One of the three TMR planes is reading differently from the other two. Could be a field wiring issue or early-stage module degradation. Investigate field device first; if fault persists with field disconnected, replace the module.
• Backplane Communication Error (Fault Code 0x10xx): Check backplane connector seating before condemning the module. This fault can also indicate a failing main processor module, not the DI card itself.
• Input Voltage Out of Range: Verify field supply voltage at the terminal block. The 3564 is rated for 24 VDC nominal; voltages below 18 VDC or above 32 VDC will cause input read errors without triggering a module fault code.

6. Post-replacement verification. After hot-swap, force each input channel from the field device and confirm the TriStation I/O display reflects the correct state on all three TMR planes. A 2oo3 vote that shows 1oo3 or 0oo3 after replacement indicates either a wiring issue or a defective replacement module.

Reliability in Harsh Conditions

The TRICONEX 3564 was not designed for a climate-controlled server room. It was built for the realities of industrial process environments — and it shows in the engineering.

The module’s optical isolation architecture means field-side transients, ground loops, and inductive switching spikes from solenoid valves and relay coils are blocked at the input stage. In offshore and coastal installations where salt-laden air accelerates corrosion, the conformal-coated PCB provides a meaningful barrier against moisture ingress and conductive contamination. We’ve seen 3564 modules pulled from North Sea platforms after 12+ years of continuous service that still passed functional verification.

Vibration tolerance is a real differentiator in rotating equipment applications. Compressor control panels and turbine enclosures generate continuous low-frequency vibration that fatigues solder joints on lesser hardware over time. The 3564’s board-level design and chassis retention mechanism keep it mechanically stable through the operational life of the equipment it protects.

Thermal performance is equally robust. The 0–60 °C operating range covers the vast majority of industrial panel environments, including outdoor enclosures in tropical climates without active cooling. In applications where panel temperatures approach the upper limit, ensure adequate chassis ventilation — the Tricon chassis fan tray is not optional in high-ambient installations.

Every unit we ship from Xiamen undergoes incoming inspection: visual examination for physical damage, connector pin integrity check, and where test equipment permits, functional power-on verification. We do not ship modules with bent pins, cracked housings, or evidence of prior repair attempts.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard export process for the TRICONEX 3564:

• Day 0 — Order confirmation: Payment confirmed, export documentation initiated. HS Code 8537.10 applies for most destinations. We prepare the commercial invoice, packing list, and certificate of origin in parallel.
• Day 1 — Dispatch: Module packed in anti-static ESD bag, foam-lined double-wall carton. Shipment handed to DHL Express or FedEx International Priority depending on destination and customer preference.
• Day 2–4 — In transit: Tracking number provided within 2 hours of pickup. Most shipments to Europe, Middle East, and Southeast Asia transit through Hong Kong or Shanghai hub.
• Day 3–6 — Delivery: Door-to-door delivery to your facility. For destinations with complex customs requirements (India, Brazil, Saudi Arabia), we provide pre-clearance documentation to your freight forwarder on request.

For genuine plant emergency situations — documented unplanned shutdowns — contact us via WhatsApp for priority processing. We will confirm stock, generate the proforma invoice, and have the shipment ready for same-day pickup by the courier if payment is received before 14:00 CST.

We ship to: EU, UK, USA, Canada, Australia, Singapore, Malaysia, Thailand, UAE, Saudi Arabia, Qatar, India, South Korea, Japan, and 60+ additional countries. Export license assessment is available for restricted destinations.
