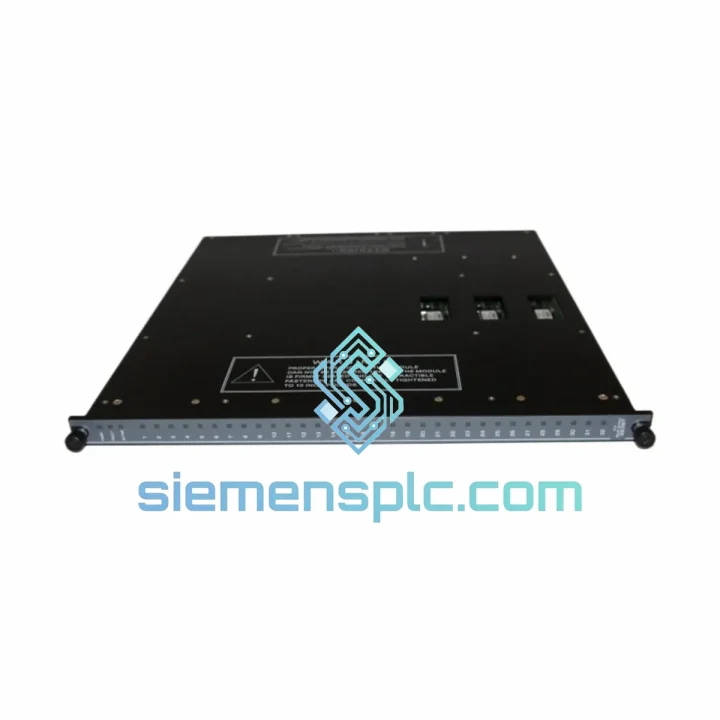

TRICONEX 3636R Relay Output Module

TRICONEX 3636R Relay Output Module — Stop the Clock on Your Unplanned Shutdown

Every hour a process unit sits idle costs real money. Whether you’re dealing with a spurious trip, a failed relay channel, or a scheduled proof-test replacement, the TRICONEX 3636R is the exact module standing between you and full production recovery. We stock it. We ship it fast. Here’s everything you need to get back online.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3636R is a mature, well-understood module, but field replacements still catch engineers off guard when they skip the pre-swap checklist. Here’s what actually matters on the floor:

Common Failure Signatures

• Fault LED solid red on one leg: Single-leg relay driver failure. The TMR system continues operating in degraded 2oo2 mode — you have a window to replace without a trip, but don’t delay. Log the fault code from TriStation diagnostics before pulling the module.
• Intermittent output chatter on specific channels: Relay contact wear from high-cycle inductive loads (solenoid valves without suppression diodes). Check the FTA wiring for missing flyback diodes before condemning the module itself — a new 3636R will fail the same way if the root cause isn’t addressed.
• Voter disagreement alarm (all three legs reporting): Usually a backplane connector issue or a corrupted module EEPROM. Reseat the module first. If the alarm clears, inspect the backplane connector pins for corrosion or mechanical damage before returning to service.
• Channel stuck-open after proof test: Relay coil open-circuit. Confirm with the TriStation channel diagnostic. This is a hard failure — module must be replaced.

Hot-Swap Replacement Procedure (Field Summary)

1. Open TriStation 1131 → navigate to the chassis slot map → confirm the target slot and verify the replacement 3636R firmware revision matches the running system (check the module label against the TriStation project revision table).
2. Notify the control room operator. The TMR system will continue executing in 2oo2 mode during the swap — confirm no SIF demands are expected during the procedure window.
3. Disconnect the Field Termination Assembly (FTA) cable at the module front connector. Do not disconnect at the marshalling panel — this avoids disturbing field wiring under live conditions.
4. Slide the faulty 3636R out of the chassis slot. The backplane remains energized. Handle with ESD precautions.
5. Insert the replacement module. The Tricon backplane performs automatic slot recognition — no DIP switch or address configuration is required on the 3636R. The module self-initializes within approximately 30 seconds.
6. Reconnect the FTA cable. Monitor TriStation diagnostics for all-green status on the replaced leg. Confirm voter agreement is restored across all three TMR legs before releasing the system to normal operation.
7. Document the swap: module serial number, slot address, date/time, and technician ID. Update the site spare-parts register.

Configuration Notes: The 3636R does not require manual address setting or firmware flashing in the field. Slot assignment is handled entirely by the Tricon backplane and TriStation project configuration. If the replacement module triggers a firmware mismatch alarm, contact your TriStation administrator — do not attempt field firmware updates without the correct TriStation version and project backup.

Reliability in Harsh Conditions

Process plants don’t offer controlled environments. The 3636R is built for the reality of industrial installations — not a lab bench.

The module’s relay output circuitry is mounted on a conformal-coated PCB, providing resistance to airborne contaminants including hydrogen sulfide, chlorine compounds, and hydrocarbon vapors common in refinery and chemical plant control rooms. The optical isolation barrier between field wiring and logic circuitry eliminates ground-loop-induced failures that routinely damage non-isolated output modules in plants with poor earthing infrastructure.

Mechanical robustness is addressed through a rigid aluminum front panel and a guided card-edge connector that maintains positive backplane contact under the vibration loads typical of compressor buildings and offshore platform decks. The relay contacts themselves are rated for the full operating temperature range without derating, and the module’s self-diagnostic routines continuously monitor contact integrity — catching latent failures before they become process trips.

In high-humidity coastal and tropical installations, the non-condensing 95% RH rating combined with conformal coating prevents the moisture ingress failures that affect standard industrial modules not designed for SIS-grade environmental exposure. The 3636R has accumulated millions of operating hours across Gulf of Mexico platforms, Middle East refineries, and Southeast Asian LNG terminals — environments where module reliability is not a specification checkbox but a daily operational requirement.

Global Express Logistics

Our warehouse operates out of Xiamen, China — one of the most strategically positioned export hubs in Asia, with direct access to international freight lanes serving every major industrial region on the planet.

How your order moves:

• Order confirmed before 14:00 CST: Same-day packing and handover to DHL Express or FedEx International Priority. Tracking number issued within 2 hours of pickup.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin (CO) prepared in parallel with packing — no delays at Xiamen customs. HS code pre-classified for industrial automation modules to avoid clearance holds at destination.
• Transit times (express service): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | Australia 2–3 days.
• Packaging: ESD-safe anti-static bag, foam-lined double-wall carton, humidity indicator card. The module arrives in the same condition it left our warehouse — no transit damage excuses.
• Customs support: We provide HS code documentation and can prepare end-user declarations for countries requiring import permits for industrial control equipment. Multi-currency invoicing (USD, EUR, HKD) available to match your procurement system requirements.

For plant shutdowns with hard restart deadlines, contact us directly on WhatsApp — we coordinate freight priority and provide real-time shipment updates until the module is in your hands.
