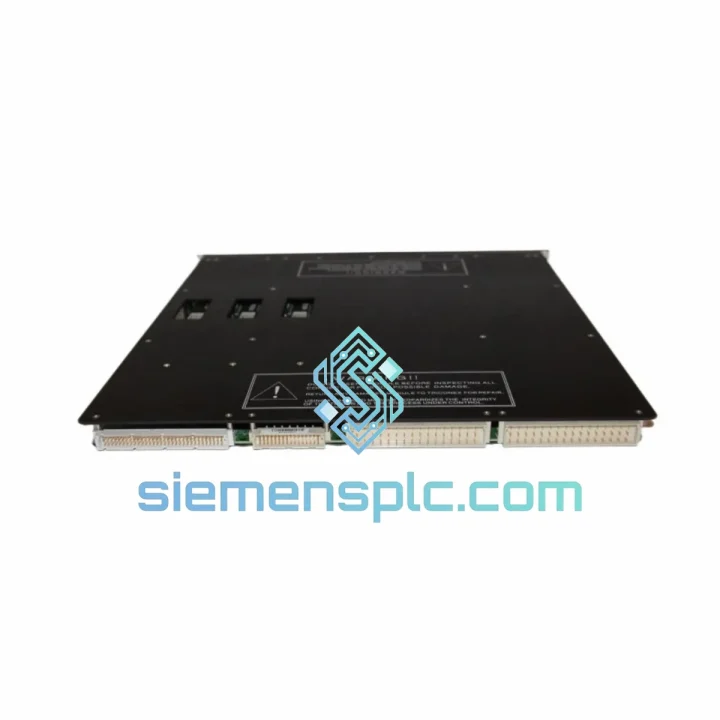

TRICONEX 3636T Relay Output Module

TRICONEX 3636T Relay Output Module — Stop the Clock on Your Shutdown

Every hour your Tricon TMR system sits offline with a failed relay output module, you’re bleeding production revenue. The 3636T is not a shelf item you wait weeks for — we stock it, we test it, and we ship it. From our Xiamen warehouse to your plant gate via DHL or FedEx, this is the fastest path back to safe operation. No broker delays, no grey-market risk, no excuses.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of 3636T swap-outs in the field, here are the failure patterns and replacement pitfalls that actually matter:

Common Failure Signatures

• Relay coil open-circuit: The most frequent failure mode. Presents as a channel that commands ON but field device never actuates. Tricon diagnostics will flag the affected leg with a FAULT status on the output channel. Confirm with a continuity check across the relay coil terminals on the termination assembly before condemning the module.
• Contact welding: Occurs on channels driving inductive loads (solenoid valves, motor starters) without adequate arc suppression. The relay contact fuses closed — the field device stays energized even when the SIF commands de-energize. This is a dangerous failure mode. If you see a channel that won’t de-energize, isolate the field circuit immediately and replace the module.
• Intermittent channel faults under vibration: Solder joint fatigue on the relay body pins. Typically surfaces as sporadic FAULT/CLEAR cycling in the Tricon event log. Vibration signature is the tell — if faults correlate with nearby rotating equipment startups, the relay solder joints are suspect.
• Backplane connector wear: On modules with high insertion cycles, the gold-plated backplane connector fingers can oxidize or deform. Clean with IPA before re-seating. If the fault clears on re-seat but returns within days, the connector is the culprit — replace the module.

Replacement Procedure — Key Steps

1. Verify hot-swap eligibility: The 3636T supports online replacement in a healthy TMR system (all three legs operational). If two legs are already faulted, do NOT hot-swap — you will drop the 2oo3 vote and trip the SIF. Coordinate with the control room before proceeding.
2. Check hardware revision compatibility: The 3636T has multiple hardware revisions. Confirm the revision of the module being replaced (label on the PCB edge) and match it to the replacement unit. Mismatched revisions can cause diagnostic mismatches in TriStation.
3. No DIP switch or address configuration required: The 3636T uses backplane slot addressing — the Tricon main processor auto-detects the module by chassis slot position. No jumpers, no DIP switches, no manual addressing. Slot it in and the system recognizes it within one scan cycle.
4. Termination assembly stays in place: The field wiring connects to the termination assembly (e.g., 3703E), not the module itself. The 3636T plugs into the termination assembly via the module connector. You do not need to disconnect field wiring during module replacement — this is the design intent for online maintenance.
5. Firmware / TriStation compatibility: The 3636T does not carry its own firmware — it is a hardware-only relay output module. No firmware download is required post-replacement. However, confirm your TriStation version supports the hardware revision of the replacement module if you are running an older TriStation release.
6. Post-replacement proof test: After replacement, command each relay channel ON and OFF from TriStation and verify field-side actuation. Log the proof test result per your SIL maintenance plan (IEC 61511 Clause 16).

Reliability in Harsh Conditions

The Tricon TMR platform — and the 3636T specifically — was engineered for environments where failure is not an option. This is not marketing language; it is a design requirement baked into the hardware architecture.

Vibration and Mechanical Shock: The 3636T is qualified to IEC 60068-2-6 sinusoidal vibration and IEC 60068-2-27 mechanical shock profiles. The relay bodies are through-hole mounted with wave-soldered joints, not surface-mount, specifically to withstand the mechanical stress of continuous plant vibration from compressors, pumps, and rotating machinery. In offshore platform deployments — where the entire structure moves — these modules have demonstrated multi-year MTBF without relay body failures.

Thermal Cycling: Industrial control rooms are not climate-controlled laboratories. The 3636T is rated for 0°C to 60°C continuous operation, with derating curves documented for elevated ambient temperatures. The relay contacts are rated for the full temperature range without contact resistance drift that would compromise the 2oo3 voting integrity.

Humidity and Contamination: The PCB conformal coating on the 3636T provides protection against condensation and airborne contaminants common in coastal, offshore, and chemical plant environments. Modules sourced through our channel are inspected for coating integrity — any unit showing delamination, corrosion, or contamination is rejected before listing.

EMI/RFI Immunity: The optical isolation barrier between the logic side and the relay field side provides inherent EMI immunity. The 3636T meets IEC 61000-4 series immunity requirements, including ESD (Level 3), radiated immunity (Level 3), and fast transient/burst (Level 3) — critical in environments with variable-frequency drives, large motor starters, and high-voltage switchgear in proximity.

TMR Fault Tolerance: The fundamental reliability advantage of the 3636T is architectural. With three independent relay output legs voting 2oo3, a single relay failure on any one leg does not cause a spurious trip or a dangerous undetected failure. The system continues operating in degraded mode while the faulted module is replaced online. This is the reason Tricon TMR systems achieve the availability figures demanded by continuous process operations.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs in Asia, with direct DHL and FedEx gateway access. When you place an order for an in-stock 3636T, here is exactly what happens:

• Same-day processing: Orders confirmed before 15:00 CST ship the same business day. Orders after 15:00 ship the following morning. No batch processing, no weekly cutoffs.
• Packaging: The 3636T is packed in anti-static ESD bags, foam-lined inner box, and double-walled outer carton. The module does not move inside the box. We have shipped to offshore platforms in the North Sea and refineries in the Middle East — the packaging is designed for the journey, not the warehouse shelf.
• Carrier selection: DHL Express Worldwide and FedEx International Priority are our primary carriers. Both offer door-to-door tracking with customs clearance included. For destinations with DHL service restrictions, FedEx is the default. We select the faster option for your destination at no additional charge.
• Transit times: Europe: 3–5 business days. Middle East: 3–4 business days. Southeast Asia: 2–3 business days. North America: 4–6 business days. Australia: 4–5 business days. These are real-world transit times, not carrier marketing figures.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) are prepared for every international shipment. For projects requiring a Certificate of Origin or specific customs documentation, advise at time of order and we prepare it before shipment.
• Tracking: Tracking number provided within 2 hours of shipment. We monitor shipments proactively — if a customs hold or carrier delay occurs, we notify you before you have to ask.

For plant shutdowns where every hour counts, contact us directly for a dedicated logistics plan. We have coordinated emergency shipments with Saturday DHL pickup and customs pre-clearance for time-critical plant restarts.
