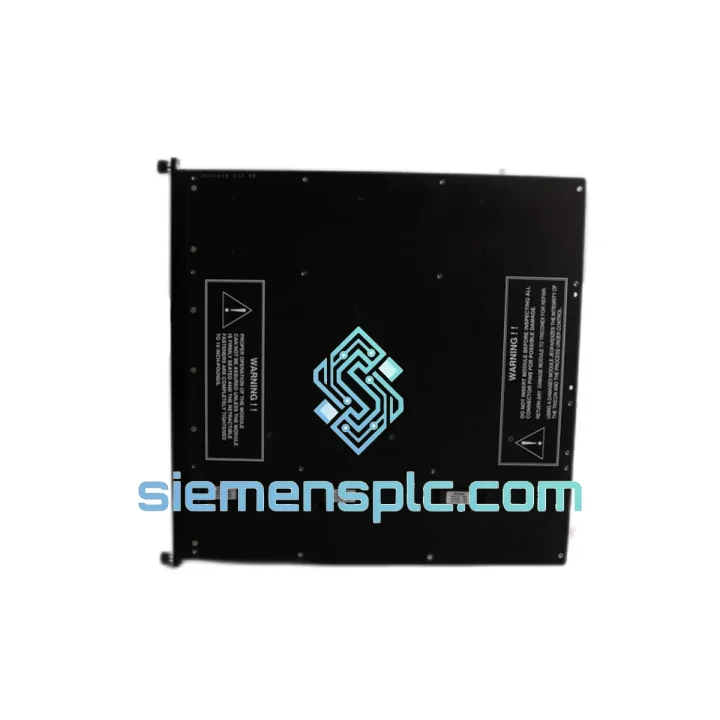

TRICONEX 3708E Analog Input Module – Tricon Series

TRICONEX 3708E 16-Channel Thermocouple Analog Input Module: Signal Acquisition Architecture in Triple Modular Redundant Control Loops

The TRICONEX 3708E occupies a well-defined functional position within the Tricon TMR (Triple Modular Redundant) safety system backplane: it serves as the primary thermocouple signal conditioning and digitization front-end for safety instrumented functions (SIF) that depend on temperature as the measured variable. Each of its 16 input channels independently acquires millivolt-level thermocouple EMF signals, applies cold-junction compensation, linearizes the output across the selected thermocouple characteristic curve, and delivers a 16-bit digital word to all three Tricon main processor legs simultaneously. This parallel delivery to three independent processing paths is not incidental — it is the architectural foundation that allows the TMR voter logic to detect and isolate a single-channel deviation without interrupting the safety function.

In a typical SIL 3 safety loop, the 3708E handles the most noise-sensitive segment of the signal chain. Thermocouple outputs are low-amplitude (in the range of microvolts to tens of millivolts depending on type and temperature range), making the module’s front-end EMC design and isolation architecture directly responsible for measurement fidelity under industrial electromagnetic interference conditions. The module supports thermocouple types J, K, T, E, R, S, and B per IEC 60584, covering the full range of process temperature applications from cryogenic to high-temperature furnace environments.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3708E’s front-end signal path begins with a passive RC filter network at each channel input terminal. This network attenuates high-frequency conducted interference — a critical requirement in environments where variable-frequency drives, high-current bus bars, and RF-emitting equipment operate in proximity to the I/O marshalling cabinet. The filter cutoff is tuned to preserve the DC and low-frequency thermocouple signal while rejecting common-mode noise that would otherwise corrupt the millivolt-level input.

Following the RC stage, each channel passes through an instrumentation amplifier with high common-mode rejection ratio (CMRR), typically exceeding 100 dB at 50/60 Hz. This specification is not arbitrary — it directly determines the module’s ability to reject ground loop interference, which is endemic in large industrial plants where thermocouple extension cables run hundreds of meters through cable trays shared with power conductors. The amplifier output feeds a 16-bit successive-approximation ADC. At 16-bit resolution, the module achieves a theoretical LSB step of approximately 0.015% of full scale, which translates to sub-degree Celsius resolution across most thermocouple ranges — sufficient for the tight temperature tolerances required in reactor and turbine protection applications.

The optical isolation barrier between the field-side analog circuitry and the backplane-side digital logic is implemented per channel, not per module. This architecture prevents a fault on one channel’s field wiring — such as a short to a high-voltage conductor — from propagating to adjacent channels or to the backplane bus. The isolation voltage rating is consistent with IEC 61010-1 requirements for measurement category II industrial environments. On the backplane side, the digitized data from all 16 channels is formatted into a structured data frame and transmitted simultaneously to all three Tricon main processor modules (MP A, MP B, MP C) via the Tricon high-speed serial backplane bus. Each processor independently executes the configured safety logic using its own copy of the input data. The TMR voter then compares the three processor outputs; any single-processor deviation is detected and annunciated without affecting the voted output — a 2-out-of-3 (2oo3) logic structure that provides both fault tolerance and fault detection in a single architectural layer.

System Integration Benefits

• Deterministic scan cycle contribution: The 3708E’s fixed conversion time per channel allows the Tricon system integrator to calculate worst-case input-to-voted-output latency with engineering precision, a prerequisite for SIL 3 loop response time verification per IEC 61511-1 Clause 11.
• Transparent channel-level diagnostics: Each channel reports its own status word to the Tricon diagnostic bus, including open-circuit detection, over-range, under-range, and cold-junction sensor fault. These status bits are accessible in the TriStation 1131 programming environment without additional configuration, enabling the safety logic designer to implement diagnostic coverage directly in the SIS application program.
• Non-intrusive online replacement: The hot-swap architecture allows a degraded or failed 3708E to be extracted and replaced while the Tricon chassis remains energized and the safety function remains active — supported by the remaining two TMR legs. This eliminates the need for a process shutdown or a bypass authorization during module maintenance, reducing both operational risk and maintenance cost.
• Multi-type thermocouple flexibility within a single module: Individual channels can be configured for different thermocouple types within the same 3708E module. This allows a single module to serve multiple measurement loops with different sensor specifications, reducing the total module count in mixed-sensor installations and simplifying spare parts inventory.
• Backplane bus load predictability: The 3708E presents a fixed, documented backplane bus load, allowing the system architect to calculate total chassis power consumption and bus bandwidth utilization with no ambiguity — a requirement for chassis-level SIL 3 hardware fault tolerance (HFT) calculations.
• Cold-junction compensation accuracy: The on-module cold-junction sensor eliminates the need for external isothermal terminal blocks in most installations, reducing wiring complexity and the number of potential failure points in the measurement chain.
• Compatibility with Tricon v9.x and v10.x firmware: The 3708E operates across both major Tricon firmware generations, protecting the capital investment in existing chassis infrastructure when upgrading processor modules or expanding the system.
• Structured data output for historian integration: The digitized, linearized, engineering-unit output from each channel is directly accessible via the Tricon OPC DA/UA server interface, enabling seamless integration with plant historians (OSIsoft PI, Aspen InfoPlus.21) and DCS data aggregation layers without additional signal conditioning hardware.

Quality Assurance & Global Logistics

Every TRICONEX 3708E unit dispatched from our Xiamen, China facility is a genuine OEM module sourced through traceable industrial supply channels. Prior to shipment, each unit undergoes a structured verification sequence: physical inspection of PCB, connector pins, firmware label, and housing integrity; functional power-on test in a compatible Tricon chassis to confirm backplane communication and channel response; and serial number documentation against our procurement records. A QC inspection report is available upon request for enterprise and EPC buyers who require traceability documentation for their project records.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UCP air freight for time-critical orders. Standard in-stock lead time is 3–5 business days from order confirmation to carrier handover. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. We serve buyers across Southeast Asia, the Middle East, Europe, the Americas, and Africa, subject to applicable trade compliance requirements. Volume pricing is available for orders of 3 or more units; contact us for a formal quotation.

All units are covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure under normal operating conditions.
