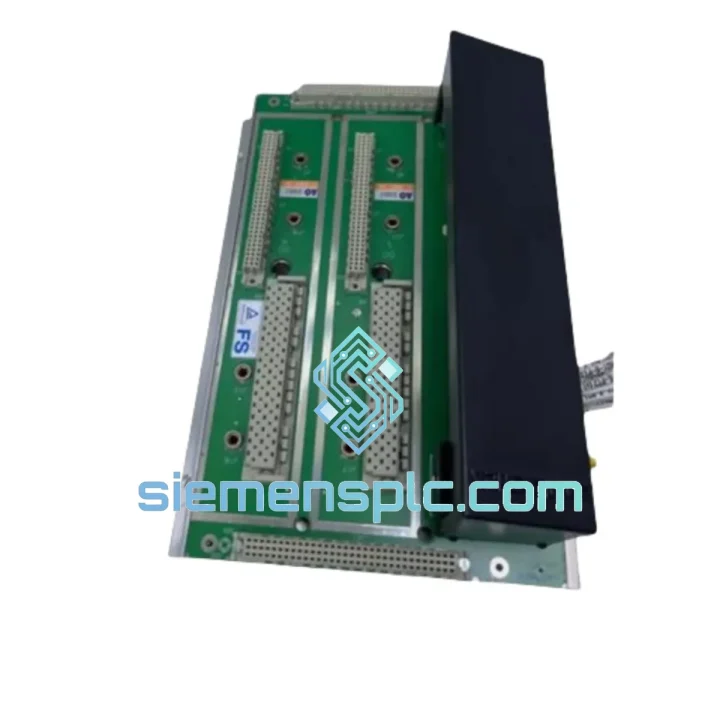

Triconex 7400221-100 Digital I/O Baseplate

Triconex 7400221-100 — Stop the Clock on Your Unplanned Shutdown

Every minute a Tricon TMR safety system sits offline, your facility is bleeding money — lost throughput, idle crews, and regulatory exposure. The Triconex 7400221-100 Digital I/O Baseplate is the structural backbone of your Tricon I/O subsystem, and when it fails, nothing else in that chassis works. We stock this unit in Xiamen and ship globally via DHL/FedEx Express. Most orders clear customs and land on your bench within 3–5 business days. That’s the difference between a controlled restart and a prolonged incident report.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 7400221-100 baseplate is not a plug-and-play job if you skip the pre-work. Here is what a decade of field calls has taught:

• Fault Code F0x21 / F0x22 (Baseplate Communication Fault): Before condemning the baseplate, reseat all I/O modules and inspect the backplane connector pins for corrosion or mechanical damage. A single bent pin on the TMR bus will throw this code and mimic a dead baseplate.
• Power-down sequence matters: Always de-energize the I/O modules before removing the baseplate. Hot-pulling a live baseplate with active field wiring can latch output modules in their last state — a serious hazard in ESD applications.
• Chassis slot addressing: The 7400221-100 is slot-position-aware. After seating the replacement, verify the chassis slot address in TriStation 1131 matches the original configuration. A mismatch will cause the controller to flag the module as unexpected hardware.
• Firmware revision check: Confirm the replacement baseplate hardware revision (stamped on the PCB label) is compatible with your Tricon main processor firmware. Mixing hardware revisions across a major boundary — e.g., v9 baseplate in a v11 chassis — is unsupported and will prevent the system from entering RUN mode.
• TMR leg synchronization: After installation, monitor the Tricon diagnostic panel for leg-sync alarms for at least 15 minutes under normal process load. A new baseplate that passes bench test but shows intermittent leg disagreement in the field usually points to a marginal backplane connector — return it immediately.
• Field wiring torque: Re-terminate all field wiring to the I/O modules at the manufacturer-specified torque (typically 0.5–0.6 N·m for screw terminals). Loose terminations are the number one cause of nuisance trips post-replacement.

Reliability in Harsh Conditions

The Tricon platform was engineered for environments where failure is not an option — and the 7400221-100 baseplate reflects that design philosophy at the hardware level. The PCB substrate uses a high-Tg laminate rated for continuous operation at elevated temperatures, resisting delamination in enclosures that cycle between cold startups and full-load thermal soak. Conformal coating on the board assembly provides a barrier against humidity ingress, condensation, and airborne contaminants common in coastal petrochemical sites and offshore platforms.

Vibration resistance is validated to IEC 60068-2-6 test profiles — the baseplate mechanical mounting system distributes chassis vibration loads across the full backplane rather than concentrating stress at individual module connectors. This matters in compressor buildings and turbine halls where 10–150 Hz broadband vibration is continuous. Units sourced through our channel are inspected for connector wear, PCB flexure damage, and solder joint integrity before dispatch — because a baseplate that looks fine on a shelf can fail within weeks if it has accumulated mechanical fatigue from a previous installation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international cargo gateway with direct DHL and FedEx Express lanes to every major industrial region. Here is how a typical urgent order moves:

• Hour 0–2: Order confirmed, payment cleared. Unit pulled from bonded warehouse stock and inspected.
• Hour 2–6: Anti-static packaging, serial number documentation, and commercial invoice prepared. Export classification confirmed (HS Code 8537.10).
• Hour 6–24: Handed to DHL Express or FedEx International Priority. Tracking number issued to buyer.
• Day 2–3: Clears Xiamen customs. In-transit to destination country.
• Day 3–5: Delivered to site — Middle East, Europe, Southeast Asia, and North America are all within this window via express lanes.

For destinations with complex import requirements (India, Brazil, Russia), we prepare full documentation packages including packing lists, certificates of origin, and end-user declarations. Contact us before ordering if your site requires pre-approval from a procurement or HSE department — we have done this before and know what paperwork your customs broker needs.
