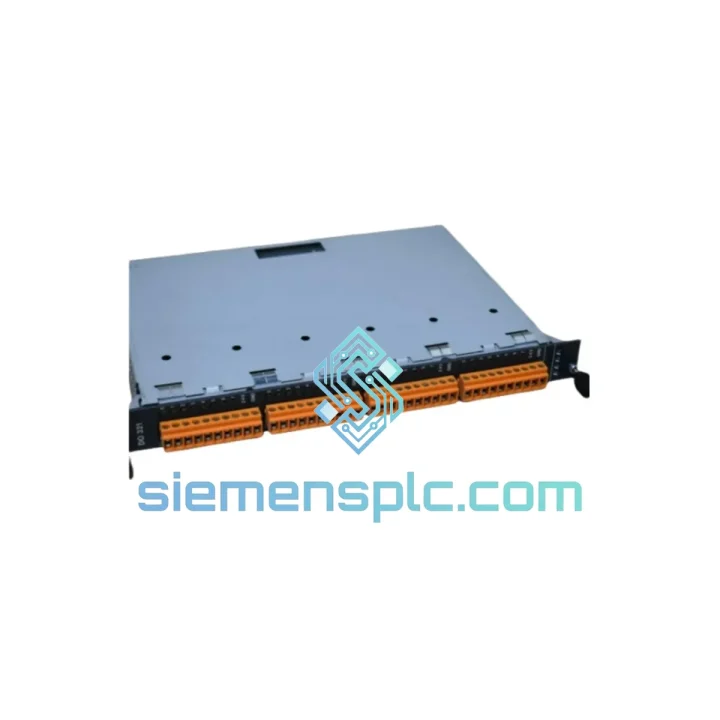

Triconex DO3201 Digital Output Module – Tricon TMR

Triconex DO3201 32-Channel Digital Output Module — Core Role in TMR Safety Control Loops

The Triconex DO3201 is a 32-channel solid-state digital output module engineered exclusively for the Tricon Triple Modular Redundant (TMR) safety platform. Within a safety instrumented system (SIS), the DO3201 occupies the final output stage of the safety control loop — translating voted logic decisions from the Tricon Main Processor into discrete field-level commands that actuate solenoid valves, motor starters, relay coils, and alarm annunciators. Its position in the loop is architecturally critical: any failure at this stage that goes undetected or produces an incorrect output state directly compromises the integrity of the safety function.

Unlike conventional I/O modules that rely on a single output driver per channel, the DO3201 implements three physically independent output legs per channel, each driven by a separate processor leg (Leg A, Leg B, Leg C) within the Tricon chassis. A 2-out-of-3 (2oo3) hardware voting circuit arbitrates the final output state before energizing the field device. This architecture ensures that a single-leg failure — whether caused by component degradation, firmware fault, or transient electrical stress — neither causes a spurious trip nor allows a dangerous undetected output failure to propagate to the field. The result is a module that simultaneously satisfies both high-demand and low-demand SIL 3 safety function requirements per IEC 61508.

The DO3201 is deployed across the full spectrum of process safety applications: Emergency Shutdown (ESD) systems in LNG terminals and refineries, Burner Management Systems (BMS) in fired heaters and boilers, High-Integrity Pressure Protection Systems (HIPPS) in upstream oil and gas, Fire and Gas (F&G) suppression activation circuits, and turbine trip output stages in power generation facilities. In each context, the module’s deterministic output update cycle — synchronized to the Tricon backplane scan — ensures that the time from a validated safety demand to field device actuation remains bounded and predictable, a prerequisite for SIL verification calculations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DO3201’s internal architecture reflects design decisions made specifically to address the failure modes that matter most in safety-critical discrete output applications.

2oo3 Output Voting Circuit: Each of the 32 output channels is driven by three independent transistor output stages, one per Tricon processor leg. The voted output is determined by a discrete hardware majority-gate circuit — not software — ensuring that the voting decision is immune to processor firmware faults. If Leg A’s output driver fails open (de-energized when it should be energized), Legs B and C maintain the correct output state. If Leg A fails shorted (energized when it should be de-energized), the 2oo3 vote correctly de-energizes the output, preventing a spurious actuation. This dual-failure tolerance is the hardware foundation of SIL 3 output integrity.

Optical Isolation Architecture: The boundary between the 24 VDC field wiring and the module’s internal 3.3 V logic is enforced by optocouplers on each channel group. This isolation barrier serves two functions: it prevents field-side transients — inductive kickback from solenoid coils, ground potential differences between field cabinets — from coupling into the backplane logic, and it provides a defined creepage and clearance distance that satisfies IEC 60664-1 overvoltage category requirements for industrial field wiring environments. The isolation withstand voltage is rated to handle the transient levels specified in IEC 61000-4-5 (surge immunity) without degradation of the optocoupler’s current transfer ratio over the module’s service life.

EMC Design and Conducted Emission Suppression: The DO3201’s PCB layout routes high-current output switching paths away from the low-level backplane communication traces. Ferrite beads and bypass capacitors at each output driver stage suppress conducted emissions generated by the switching transients of 32 simultaneous output channels. The module’s metal faceplate and chassis slot grounding provide a Faraday shield that attenuates radiated emissions, keeping the module compliant with EN 55032 Class A industrial emission limits even under worst-case simultaneous switching conditions.

Per-Channel Diagnostic Loop: Each output channel includes a feedback sense circuit that reads the actual field-side voltage state and compares it against the commanded output state. A discrepancy — for example, a commanded ON state with a field-side reading of 0 V, indicating an open-load or blown fuse — is flagged as a channel fault within one scan cycle. The fault is reported to the Tricon Main Processor, which logs it in the system fault table and makes it available to the SCADA/DCS via the Tricon communication module. This diagnostic transparency reduces mean time to repair (MTTR) by eliminating the need for manual channel-by-channel fault isolation during maintenance.

Backplane Bus Interface Timing: The DO3201 receives its output commands from the Tricon backplane bus at the end of each processor scan cycle. The backplane protocol uses a time-deterministic token-passing scheme that guarantees output data delivery within a fixed window, independent of the number of modules installed in the chassis. This determinism is essential for safety function response time calculations: the DO3201’s output update latency is a fixed, documentable value that can be directly entered into the SIL verification tool’s response time budget.

System Integration Benefits

• SIL 3 Loop Closure Without External Voting Hardware: The DO3201’s internal 2oo3 voting eliminates the need for external relay voting panels in SIL 3 output loops, reducing panel footprint, wiring complexity, and potential failure points in the field termination assembly.
• Zero-Downtime Module Replacement: Hot-swap capability allows a degraded or faulted DO3201 to be replaced while the Tricon system continues operating on the remaining two legs. Plant availability is maintained during the replacement window without requiring a controlled shutdown or bypass management procedure.
• Deterministic Response Time for SIL Verification: The fixed backplane update latency of the DO3201 provides a bounded, documentable output delay value for use in IEC 61511 safety function response time calculations, simplifying SIL verification documentation.
• Unified Diagnostic Reporting via TriStation: Channel-level faults are surfaced directly in the TriStation 1131 diagnostic display and forwarded to connected SCADA systems via the Tricon communication module, enabling centralized fault management without additional diagnostic hardware.
• Reduced Field Wiring Complexity: 32 channels per module slot minimizes the number of chassis slots required for large output-intensive applications such as F&G deluge zone activation panels, reducing chassis cost and backplane power consumption.
• Compatibility Across Tricon Chassis Generations: The DO3201 is compatible with Tricon v9.x and v10.x chassis platforms, allowing it to be used as a direct replacement in existing installed systems without chassis or processor upgrades.
• Inductive Load Suppression: Internal transient suppression on each output channel protects the solid-state driver from the inductive kickback generated by solenoid valve coils — the most common field load type in ESD and BMS applications — extending output driver service life in high-cycle-rate applications.
• IEC 61508 Certified Failure Rate Data: Triconex publishes certified PFD (Probability of Failure on Demand) and PFH (Probability of Failure per Hour) data for the DO3201, enabling direct use in SIL verification calculations without the need for generic component-level FMEA.
• Seamless TriStation 1131 Integration: The DO3201 is natively recognized by the TriStation 1131 programming environment. Channel assignment, diagnostic configuration, and force/override management are performed within the same engineering tool used for application logic development, eliminating the need for separate I/O configuration software.
• Scalable Output Capacity: Multiple DO3201 modules can be installed in a single Tricon chassis, allowing output channel count to scale from small wellhead controllers to large refinery ESD systems within the same hardware platform.

Quality Assurance & Global Logistics

Every Triconex DO3201 unit supplied through siemensplc.com is sourced from verified industrial surplus inventories, decommissioned plant asset sales, and authorized distribution channels. Each unit undergoes a documented multi-stage inspection and functional verification process before dispatch:

• Physical Inspection: Board-level examination for mechanical damage, corrosion on connector pins, solder joint integrity, and counterfeit component indicators including label authenticity verification against known-genuine reference units.
• Power-On Functional Test: The module is installed in a Tricon test chassis and powered. All 32 output channels are exercised through commanded ON/OFF sequences. Self-diagnostic pass status is confirmed with zero active fault codes.
• Firmware Revision Documentation: The installed firmware revision is read from the module and recorded on the test report. This information is disclosed to the buyer prior to shipment to allow compatibility verification against the target system’s processor firmware.
• Serialization and Traceability Record: Module serial number, test date, test technician ID, and test result are logged in a permanent dispatch record retained for a minimum of five years.
• ESD-Safe Packaging: Units are packed in anti-static shielding bags, cushioned with conductive foam, sealed in moisture barrier packaging with desiccant, and placed in double-wall corrugated cartons rated for international air freight handling.
• 12-Month Warranty: All units carry a 12-month replacement warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.

Dispatch is from our Xiamen, China warehouse. In-stock units ship within 1–3 business days. International express freight is available via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Typical transit times: Southeast Asia 2–4 days, Europe 3–5 days, North America 4–6 days, Middle East 3–5 days. Full commercial invoice, packing list, and certificate of origin documentation are provided for customs clearance.
