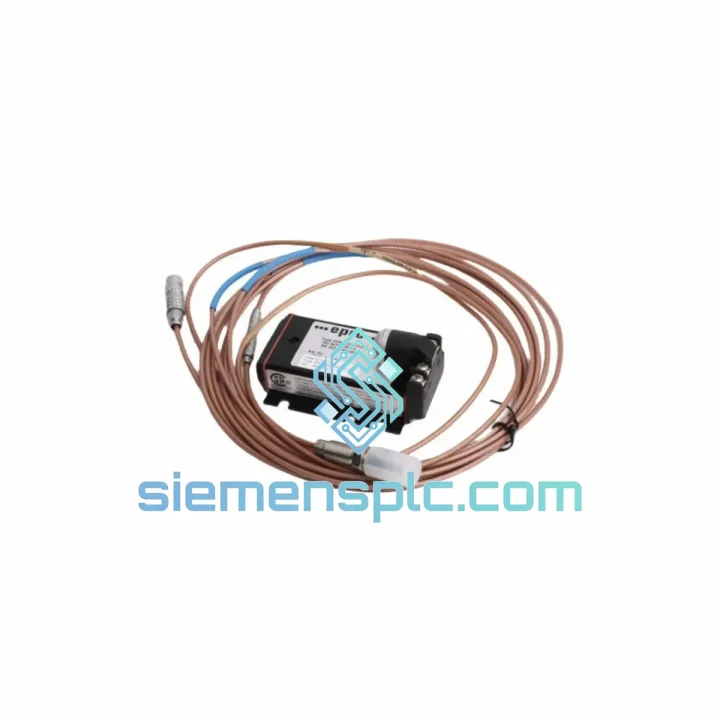

Vibro-Meter 913-402-000-013 Extension Cable – EA400 Series

Vibro-Meter 913-402-000-013 EA402 Extension Cable: Signal Integrity in Rotating Machinery Protection Loops

The Vibro-Meter EA402 extension cable, identified by part number 913-402-000-013, occupies a structurally critical position in the eddy-current proximity measurement chain. In any API 670-compliant machinery protection system, the signal path from probe tip to signal conditioner input must maintain a tightly controlled impedance envelope. Deviations in cable capacitance, resistance, or shielding continuity directly corrupt the gap voltage output, introducing measurement error that cascades into false trip events or, more dangerously, missed alarm thresholds on high-speed rotating shafts.

This cable is factory-characterized to interface with Vibro-Meter EA400-series proximity probes — including the PR6423 and PR6424 families — and their associated CON021 and CON041 signal conditioners. The matched-impedance design preserves the probe system’s calibrated sensitivity coefficient (typically expressed in mV/µm or V/mil), ensuring that the conditioner’s output voltage accurately represents actual shaft displacement without field recalibration after cable installation.

In rotating machinery protection, the extension cable bridges the mechanical gap between the probe body (mounted at the bearing housing or shaft seal) and the signal conditioner located in the instrument cabinet or junction box. Cable lengths in the EA400 system are constrained by the total probe-plus-extension capacitance budget defined in the CON021/CON041 driver datasheet. The 913-402-000-013 variant is engineered to operate within this budget, maintaining system linearity across the full measurement range — typically 0.25 mm to 2.25 mm gap for standard EA400 probe configurations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Impedance Matching and Sensitivity Preservation
Eddy-current proximity systems operate on a resonant oscillator principle. The probe coil, extension cable, and signal conditioner form a tuned LC circuit. Any deviation in cable capacitance per unit length shifts the resonant frequency, altering the probe’s sensitivity coefficient. The 913-402-000-013 is manufactured to Vibro-Meter’s internal capacitance tolerance specification, ensuring the total system capacitance remains within the conditioner’s compensation range. This eliminates the need for field sensitivity adjustment after cable replacement — a critical requirement in continuous monitoring installations where recalibration downtime is unacceptable.

Low Triboelectric Noise Architecture
In high-vibration environments — turbine bearing pedestals, compressor skids, pump bases — mechanical flexing of signal cables generates triboelectric charge at the conductor-dielectric interface. This charge appears as low-frequency noise superimposed on the DC gap voltage signal, potentially masking sub-synchronous vibration components or generating spurious 1× amplitude modulation. The EA402 cable employs a conductive inner jacket layer between the dielectric and the outer shield braid, providing a charge dissipation path that suppresses triboelectric noise to levels below the measurement system’s noise floor.

Double-Shield EMC Architecture
Industrial machinery environments present dense electromagnetic interference sources: variable-frequency drives (VFDs) operating at switching frequencies of 2–16 kHz, high-current motor feeders, and bus-bar installations. The EA402’s double-shield construction — an inner foil shield bonded to the drain wire, plus an outer braided shield — provides two independent attenuation stages. The inner shield addresses high-frequency capacitive coupling; the outer braid handles lower-frequency magnetic induction. Combined, this architecture achieves the EMC immunity levels required by IEC 61000-4-3 and IEC 61000-4-8 for industrial measurement equipment, maintaining signal integrity in environments where single-shield cables exhibit measurable noise floor degradation.

Connector Interface Integrity
The coaxial connector terminations on the 913-402-000-013 are factory-assembled and tested to Vibro-Meter’s connector interface specification. Field-terminated cables introduce variability in center-pin insertion depth, dielectric gap, and shield termination resistance — each of which affects the connector’s characteristic impedance at the junction point. Factory termination eliminates this variability, ensuring the connector interface does not introduce a reflection discontinuity in the signal path that would appear as measurement noise at frequencies corresponding to the cable’s electrical length.

System Integration Benefits

• Zero-Recalibration Replacement: Factory-matched capacitance and resistance parameters allow direct substitution in existing EA400 installations without sensitivity coefficient adjustment at the CON021/CON041 conditioner, eliminating the calibration hold-time that would otherwise be required during planned maintenance windows.
• API 670 Audit Traceability: Genuine OEM part number 913-402-000-013 provides unbroken documentation traceability from probe tip to monitoring rack, satisfying the system certification requirements of API 670 Section 5 for machinery protection system component verification.
• Deterministic Noise Floor: The low-triboelectric and double-shield construction delivers a predictable, characterized noise floor, allowing protection system engineers to set alarm and trip thresholds with confidence that nuisance trips from cable-induced noise are not a design variable.
• Broad Probe Compatibility: Compatibility with PR6423, PR6424, and PR9268 probe families means a single cable part number can serve multiple measurement points across a machinery train — radial vibration, axial position, and speed — reducing spare parts inventory complexity.
• Hazardous Area Pathway: Certain EA400-series configurations carry ATEX/IECEx certification for use in Zone 1/Zone 2 classified areas. The 913-402-000-013 is specified within this system architecture, supporting installations in gas compression, petrochemical, and offshore environments subject to hazardous area classification.
• Reduced Diagnostic Ambiguity: When a machinery protection channel exhibits elevated noise or drift, the use of a genuine OEM cable eliminates cable characteristics as a diagnostic variable, allowing maintenance engineers to focus fault isolation on the probe gap, conditioner electronics, or monitoring rack — reducing mean time to repair (MTTR).
• Long-Term Availability: As a catalogued Vibro-Meter spare part, the 913-402-000-013 is supported through Meggitt’s global spare parts program, providing long-term availability assurance for plant asset management planning horizons of 10–20 years.
• Thermal Stability: The cable’s dielectric material maintains dimensional stability across the operating temperature range of industrial machinery environments, preventing thermally induced capacitance drift that would shift the probe system’s gap-voltage characteristic over seasonal or process temperature cycles.

Quality Assurance & Global Logistics

Every Vibro-Meter 913-402-000-013 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels with full OEM part number and labeling integrity. Pre-shipment inspection covers physical connector condition, cable jacket integrity, and part number label verification against the Vibro-Meter EA400 series documentation. Units are packed in anti-static, moisture-resistant packaging appropriate for international air and sea freight.

From Xiamen, we support export to all major industrial markets: Southeast Asia, the Middle East, Europe, and the Americas. Standard air freight transit times to most destinations range from 3 to 7 business days. Sea freight consolidation is available for bulk orders. All shipments are accompanied by a commercial invoice, packing list, and certificate of origin as required for customs clearance. For projects requiring ATEX documentation or material traceability certificates, contact our technical team prior to order placement.

Our 12-month warranty covers manufacturing defects and OEM specification conformance. Warranty claims are processed with replacement dispatch from Xiamen stock, minimizing plant downtime exposure. Technical pre-sales support — including system compatibility verification, cable length budget calculation, and API 670 documentation review — is available at no charge from our engineering team.
