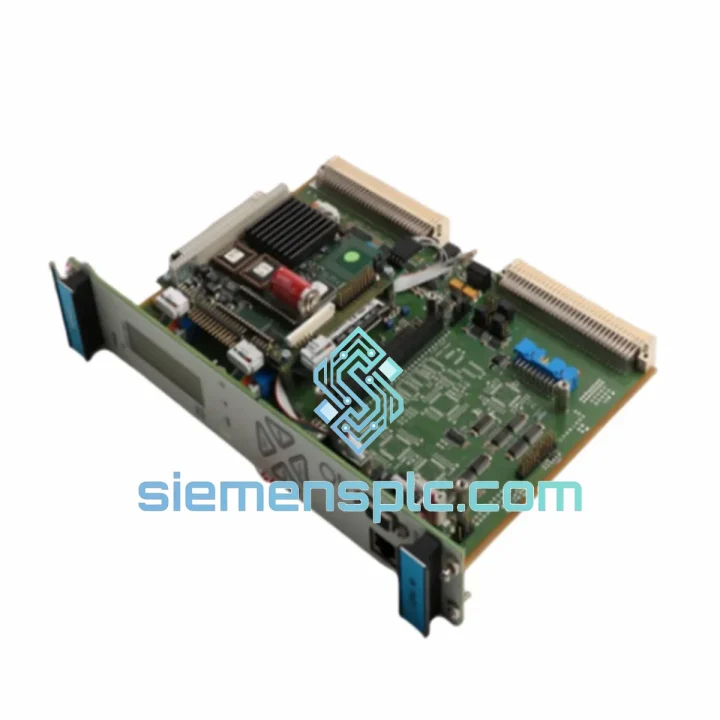

VIBRO METER GSI122 I/O Card – VM600 Series

VIBRO METER GSI122 Machinery Protection I/O Card — Signal Interface Architecture for Rotating Equipment Monitoring

The VIBRO METER GSI122 is a rack-mount Input/Output card engineered for deployment within VIBRO METER modular machinery protection systems, most notably the VM600 series chassis. Its primary function is to serve as the conditioned signal interface layer between field-mounted transducers — eddy-current proximity probes, velocity sensors, and accelerometers — and the protection rack’s processing and trip logic modules. In rotating equipment protection architectures, the I/O card is not a passive connector block; it is an active signal conditioning and routing element whose electrical characteristics directly determine the fidelity of the measurement chain from sensor to trip relay.

In API 670-compliant turbomachinery protection systems, every signal path must maintain defined impedance, bandwidth, and isolation characteristics to ensure that a 25 µm shaft displacement event at 3,000 RPM translates into a deterministic voltage change at the monitoring module input — without ground loop contamination, common-mode noise injection, or cross-channel crosstalk. The GSI122 addresses these requirements through its hardware-level channel isolation design and OEM-matched signal conditioning circuitry.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The GSI122’s hardware architecture is built around three core design imperatives: signal fidelity, channel independence, and backplane bus determinism.

Per-Channel Galvanic Isolation: Each input channel on the GSI122 employs galvanic isolation — typically implemented via transformer-coupled or optocoupler-based front-end circuitry — that breaks the DC conduction path between the field wiring and the rack’s internal signal bus. In turbomachinery installations, field cables often run hundreds of meters through cable trays shared with high-voltage motor feeders and variable-frequency drives. Without galvanic isolation, induced common-mode voltages of 50–200 V can appear on sensor signal lines, saturating the input amplifier stage and producing false vibration readings or spurious trip events. The GSI122’s isolation barrier maintains channel integrity under these conditions, with common-mode rejection ratios (CMRR) sufficient to suppress industrial-frequency interference.

Backplane Bus Interface Logic: The VM600 chassis uses a proprietary high-speed backplane bus to transfer conditioned measurement data from I/O cards to the central processing and trip logic modules. The GSI122’s bus interface logic handles data serialization, slot addressing, and handshake protocols that ensure each channel’s measurement value is transferred within the rack’s defined scan cycle. This deterministic data transfer is essential for trip logic modules that must evaluate multiple channel states — radial vibration, axial position, speed — within a single protection cycle to execute a coordinated machine trip.

EMC Shielding Architecture: The card’s PCB layout follows IEC 61000-4 design practices, with separate ground planes for analog signal processing and digital logic sections, minimizing high-frequency switching noise from the bus interface from coupling into the analog measurement chain. The card’s front panel and chassis contact points provide a low-impedance RF ground path to the rack frame, contributing to the system’s overall radiated emissions performance and immunity to external electromagnetic fields — a critical consideration in substations and offshore platform environments where high-power RF transmitters operate in proximity to control panels.

Transducer Bias Supply: For eddy-current proximity probe channels, the GSI122 provides the regulated negative DC bias voltage required to operate the proximitor/driver electronics. This bias supply is generated on-card with tight regulation tolerances, ensuring that the probe’s output sensitivity (typically −7.87 V/mm for standard Bently Nevada-compatible probes, or per VIBRO METER’s own transducer specifications) remains within calibration across the full operating temperature range of the card.

System Integration Benefits

• Zero Re-engineering for Slot Replacement: The GSI122 is a direct form-fit-function replacement for existing slots in installed VM600 racks. Connector pinout, card dimensions, and bus protocol are OEM-matched, eliminating the need for wiring modifications, software reconfiguration, or re-calibration of the protection system upon card swap.
• Deterministic Scan Cycle Contribution: Because the card’s backplane interface adheres to the VM600 bus timing specification, its data is available to the trip logic module within the guaranteed scan window — typically sub-10 ms for the VM600 architecture — preserving the system’s overall protection response time budget.
• Multi-Transducer Type Support on a Single Platform: A single GSI122 card can interface with multiple transducer types (proximity, velocity, acceleration) depending on channel configuration, reducing the number of distinct card types required in a mixed-measurement protection rack and simplifying spare parts inventory management.
• Diagnostic Transparency via Backplane: The card reports channel-level diagnostic status — open circuit, short circuit, transducer bias fault — to the VM600 system software, enabling operators to identify a failing field sensor or wiring fault without removing the card or interrupting the protection function on adjacent channels.
• Reduced Ground Loop Risk in Multi-Machine Installations: In plants where multiple machines share a common monitoring network, per-channel galvanic isolation prevents a ground fault on one machine’s sensor wiring from propagating into the monitoring rack and corrupting measurements on other channels or machines.
• Compatibility with Redundant Power Architectures: The card draws power exclusively from the VM600 backplane bus, which supports redundant 24 VDC power supply modules. This means the GSI122 inherits the rack’s power redundancy without requiring any additional field wiring or power conditioning at the card level.
• Long-Term Availability for Installed Base Support: VIBRO METER VM600 series racks have been installed in power generation, oil & gas, and petrochemical plants globally since the 1990s. Sourcing genuine GSI122 cards from verified supply channels extends the operational life of these installed systems without requiring a full rack replacement — a significant capital expenditure avoidance for plant operators.
• API 670 Compliance Preservation: Substituting a non-OEM I/O card in an API 670-compliant protection system can invalidate the system’s compliance documentation and void the OEM’s system-level warranty. Using a genuine GSI122 maintains the integrity of the protection system’s compliance record, which is auditable by insurance underwriters and regulatory bodies in many jurisdictions.

Quality Assurance & Global Logistics

Every GSI122 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual inspection confirms OEM labeling authenticity, part number silk-screen conformance, and absence of physical damage or rework indicators. Functional verification checks are performed where test equipment is available for the specific card type. Units are packed in ESD-safe anti-static bags, placed in foam-lined rigid cartons, and outer-packed in double-wall corrugated export cartons rated for international air and sea freight handling.

Xiamen’s geographic position — direct access to Xiamen Gaoqi International Airport and Xiamen Port, both with established freight forwarding infrastructure — enables same-day or next-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent shipments. Standard commercial invoice, packing list, and certificate of origin documentation are prepared for all international shipments. HS code classification and customs value declaration are handled accurately to minimize clearance delays at destination ports. Incoterms options include EXW, FOB Xiamen, CIF, and DAP depending on the buyer’s logistics preference.

A 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions. Warranty claims are processed via email with photographic evidence and a failure description; replacement or credit is issued upon verification. Technical support for installation, compatibility confirmation, and system integration questions is available via email and WhatsApp throughout the warranty period and beyond.
