VM600 IOCN 200-566-000-113: Rack-Level Communication Arbiter for Deterministic Vibration Data Transmission

In turbomachinery protection architectures governed by API 670, the integrity of the communication layer is as operationally critical as the measurement layer itself. The VIBRO-METER VM600 IOCN 200-566-000-113 is the I/O Communication Node Board purpose-built for the VM600 rack-based condition monitoring and machinery protection platform. Its function is not supplementary — it is the sole interface through which all rack-resident signal processing modules exchange structured data with external supervisory systems including DCS, SCADA, and safety PLCs.

The VM600 platform is deployed across gas turbines, steam turbines, centrifugal compressors, and large motor-driven trains in power generation, LNG processing, upstream oil & gas, and petrochemical refining. Within this architecture, the IOCN board manages the arbitration of inter-module communication on the VM600 backplane bus, coordinates the serialization of vibration amplitude, phase angle, and rotational speed data, and maintains the timing synchronization required for deterministic alarm and trip relay actuation. A failed or absent IOCN board does not degrade system performance — it eliminates it. The rack continues to acquire signals, but no data reaches the control room.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

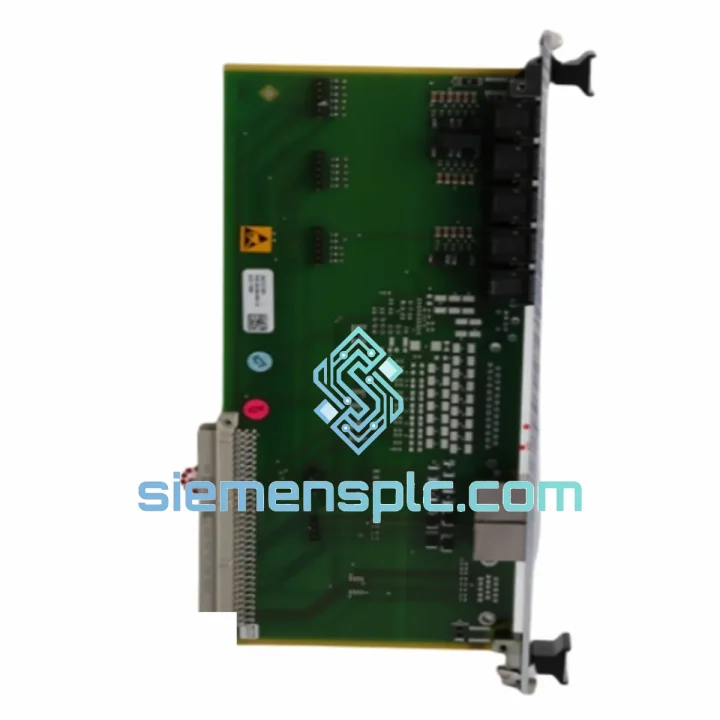

The IOCN board operates at the intersection of two distinct signal domains within the VM600 rack: the high-speed internal backplane bus and the lower-speed, noise-tolerant external fieldbus interface. This dual-domain architecture imposes specific hardware design requirements that VIBRO-METER addresses through several engineering decisions visible in the board’s physical and logical structure.

Backplane Bus Arbitration: The VM600 backplane uses a parallel bus topology where multiple measurement cards — MPC4 (4-channel machinery protection), AMC8 (8-channel analog monitoring), and speed measurement modules — share a common data path. The IOCN board implements bus arbitration logic that prevents data collision between simultaneously active modules. This is not a software-managed process; the arbitration is handled at the hardware level through dedicated bus controller circuitry, which eliminates the latency variability that software-based arbitration would introduce. For a protection system where trip relay actuation must occur within a defined time window, this determinism is non-negotiable.

Galvanic Isolation at the External Interface: The boundary between the rack’s internal bus and the external communication port is a high-risk zone for ground loop currents and common-mode noise injection, particularly in plant environments where cable runs may span hundreds of meters across electrically noisy switchgear rooms. The IOCN board incorporates galvanic isolation at this interface boundary, decoupling the rack’s internal reference ground from the external cable shield ground. This prevents noise currents from the plant’s electrical infrastructure from corrupting the data stream or, in worst-case scenarios, damaging the board’s communication transceiver circuitry.

EMC Hardening: The board’s PCB layout follows controlled-impedance trace routing for high-frequency signal lines, with ground plane segmentation that separates the analog signal domain from the digital processing domain. Bypass capacitors are placed at the power supply pins of each active IC to suppress high-frequency switching transients. The edge connector interface to the backplane uses a low-inductance contact geometry that minimizes ground bounce during simultaneous switching of multiple data lines.

Watchdog and Fault Detection Logic: The IOCN board includes onboard watchdog circuitry that monitors the health of the communication processor. If the processor fails to service the watchdog within the defined timeout interval — indicating a firmware hang or hardware fault — the watchdog asserts a reset signal and logs a diagnostic event to the rack’s status register. This self-recovery mechanism prevents a silent communication failure from going undetected, which is a critical requirement in unattended machinery protection installations.

System Integration Benefits

• Deterministic Data Delivery: Hardware-level bus arbitration ensures that vibration amplitude and phase data from all rack modules are transmitted to the DCS within a fixed, repeatable time window — no jitter introduced by software scheduling.
• Zero-Reconfiguration Replacement: The IOCN board carries the rack’s communication configuration in non-volatile memory on the board itself. Replacing a failed IOCN with a pre-configured spare restores full communication without requiring re-parameterization of the rack or the DCS interface.
• Transparent Diagnostic Reporting: The board exposes a structured diagnostic register accessible via the external communication interface. Maintenance engineers can query module health, communication error counts, and bus arbitration statistics without interrupting the protection function.
• Multi-Protocol Compatibility: Depending on the VM600 rack firmware revision, the IOCN board supports multiple external communication protocols, allowing integration into both legacy DCS architectures using serial Modbus and modern systems using Ethernet-based fieldbus variants.
• Alarm and Trip Relay Coordination: The IOCN board participates in the rack’s alarm and trip relay logic by providing the communication path through which the supervisory system can acknowledge alarms, inhibit channels, and perform remote bypass operations — all with full audit trail logging.
• Hot-Swap Awareness: The VM600 rack architecture supports controlled module insertion and removal. The IOCN board’s bus interface logic includes insertion detection circuitry that prevents bus contention during the brief period when the board’s edge connector is making partial contact during insertion or extraction.
• Synchronized Timestamp Distribution: The IOCN board distributes a common time reference to all measurement modules in the rack, ensuring that vibration events recorded by different channels carry synchronized timestamps. This is essential for post-event analysis where the relative timing of vibration anomalies across multiple measurement points determines the root cause.
• Reduced Integration Engineering Effort: Because the IOCN board handles all protocol translation and data formatting internally, the DCS integration engineer works with a clean, structured data interface rather than raw measurement data. This reduces commissioning time and eliminates a class of integration errors associated with manual data scaling and unit conversion.
