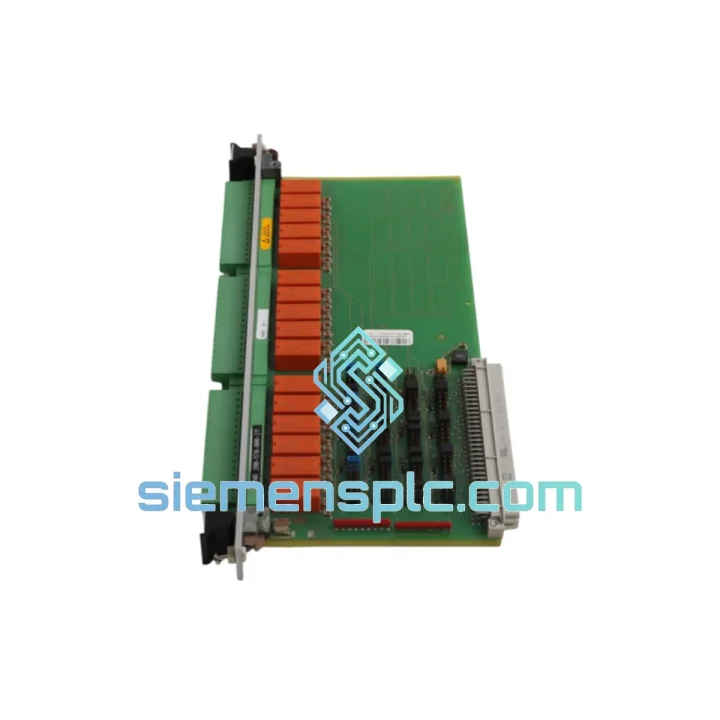

VIBRO-METER VM600 RLC16 200-570-000-211 Relay Output Card

VM600 RLC16 200-570-000-211 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your turbine tripped at 03:00. The DCS is screaming. Maintenance is on-site and the relay output card is dead. Every hour offline costs you real money — production loss, penalty clauses, emergency crew overtime. The VIBRO-METER VM600 RLC16 (P/N: 200-570-000-211) is on our shelf in Xiamen right now. We cut the lead time from weeks to days. That is the only number that matters when your plant is down.

We supply 100% original VIBRO-METER (Meggitt SA) hardware sourced through verified industrial channels. No grey-market substitutes. No remarked boards. Serial numbers traceable. Units bench-tested before dispatch. If you need it fast, you are in the right place.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The VM600 RLC16 fails in predictable ways. Here is what ten years of field calls have taught us about this card:

Fault 1 — Relay contact welding. High-inductive loads (solenoid valves, contactor coils) without proper arc suppression will weld SPDT contacts closed over time. The VM600 system will report a relay output discrepancy alarm. Before fitting the replacement, install RC snubbers or MOVs across every inductive load on the output wiring. Skipping this step will kill the new card within months.

Fault 2 — Backplane connector oxidation. In humid coastal or offshore environments, the gold-plated backplane edge connector corrodes. Symptoms: intermittent relay chatter, spurious trip outputs, or the rack failing to recognise the card at all. Clean the connector with IPA and a lint-free swab before seating the replacement. Do not use abrasive contact cleaner — it strips the plating.

Fault 3 — Firmware revision mismatch. The VM600 rack RCOM module maintains a firmware compatibility table. If your rack is running an older RCOM firmware, a newer RLC16 hardware revision may not initialise correctly. Check the RCOM firmware version via the VM600 configuration software before ordering. We can advise on hardware revision availability — just provide your RCOM firmware string.

Replacement procedure (field-verified):

• Inhibit all relay outputs via the VM600 configuration software before card removal — do not rely on the rack power-down alone if other cards remain live.
• Document the existing relay assignment map (which relay channel drives which field device) before pulling the card. The RLC16 does not store this mapping internally — it lives in the RCOM configuration file.
• Seat the replacement card firmly until the ejector levers click. A partially seated card will power up but produce erratic relay behaviour.
• After insertion, perform a full relay output test from the VM600 software: energise each of the 16 channels individually and verify field-side continuity with a multimeter before releasing the inhibit.
• Log the new card serial number in your site CMMS against the rack slot position. Meggitt service engineers will ask for this during any future SIL validation audit.

Reliability in Harsh Conditions

The VM600 RLC16 was not designed for a climate-controlled server room. It was built for the conditions you actually work in: gas turbine enclosures running at 55 °C ambient, offshore platforms with salt-laden air and constant vibration, petrochemical plants where the atmosphere carries corrosive vapours year-round.

The card’s PCB uses a conformal coating that resists moisture ingress and prevents dendritic growth on signal traces — a common failure mode on uncoated boards in high-humidity environments. The electromechanical relays are enclosed in sealed housings that block airborne contaminants from reaching the contact surfaces. The backplane connector is rated for thousands of insertion cycles, which matters when your maintenance schedule involves quarterly card pulls for inspection.

Vibration tolerance is not an afterthought. The VM600 rack system is designed to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-64 (random vibration) test profiles. The RLC16 card passes these tests as part of the rack assembly — meaning the card, its solder joints, and its connector interface are all validated to survive the mechanical environment of rotating machinery installations. A card that rattles loose or develops dry solder joints under vibration is a liability. This one does not.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures. This is not a drop-ship operation. The card is physically on our shelf. When you confirm payment, our logistics team books the courier slot the same day.

Standard export flow:

• Day 0: Payment confirmed → export documentation prepared (commercial invoice, packing list, certificate of origin, EAR99 classification).
• Day 1: Unit packed in anti-static shielding bag, placed in foam-lined export carton, labelled with courier tracking number. DHL Express or FedEx International Priority booked.
• Day 2: Airfreight departure from Xiamen. Tracking number sent to you via email and WhatsApp.
• Day 3–5: Delivery to most destinations in Europe, Middle East, Southeast Asia, and North America, subject to customs clearance.

We handle HS Code 8537.10 classification and can provide a detailed customs description to minimise clearance delays at your end. For destinations with complex import requirements (India, Brazil, Indonesia), contact us before ordering — we have routed shipments to these markets before and know the documentation requirements.

Bulk orders (3+ units) qualify for negotiated freight rates and consolidated shipment. Contact us for a formal quotation with freight included.
