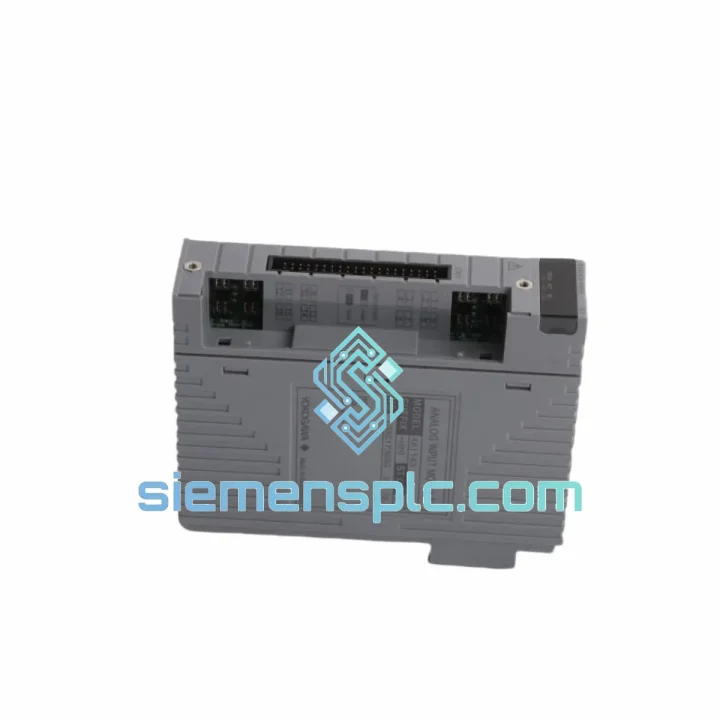

YOKOGAWA AAI143-H03 Analog Input Module

AAI143-H03 In Stock — Every Hour of Downtime Costs You More Than This Module

Your CENTUM CS 3000 just threw a fault on the analog input card. Sixteen channels of 4–20 mA process data — temperature, pressure, flow — have gone dark. The operator is on the phone. The shift supervisor is walking over. You have maybe 30 minutes before this becomes a production incident report with your name on it.

The YOKOGAWA AAI143-H03 is on the shelf in Xiamen right now. We ship DHL Express and FedEx International Priority daily. Most destinations in Southeast Asia, the Middle East, and Europe receive within 3–5 business days from order confirmation. That is the fastest path back to full process visibility — and it starts with one email.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on CENTUM systems teach you the same lessons repeatedly. Here is what actually matters when you are standing in front of a failed AAI143-H03:

Common Fault Codes & What They Mean:

• IOM FAIL / Module Fault LED solid red: The module has lost communication with the node unit or has an internal hardware failure. Power-cycle the node first — if the fault persists after 60 seconds, the card is dead. Pull it.
• CH FAIL on specific channels only: Before condemning the module, check the field wiring at the ATB terminal board. Broken shield, corroded terminal, or a transmitter that has failed open-circuit will throw a channel fault that looks like a card fault. Disconnect the field wiring and apply a 4–20 mA loop calibrator directly to the terminal board. If the channel clears, the module is fine — the problem is upstream.
• All channels reading 0 mA or pegged at 20 mA: Check the node unit power supply (APW series). A sagging bus voltage will cause systematic AI errors across the entire card before the PSU throws its own fault. Measure the 24 VDC rail at the node backplane connector.
• Intermittent faults that clear on their own: Classic symptom of a failing ESB bus connector or a card that is not fully seated. Re-seat the module with the node powered down. If the fault returns within 48 hours, replace the card — intermittent faults in process control are not acceptable.

Replacement Procedure — Step by Step:

1. Confirm Style S1 compatibility. Check the label on the existing module. The suffix H03 denotes a specific hardware variant. Do not substitute an H00 or S03 suffix without engineering sign-off — the hardware revision affects internal component specifications even though the form factor is identical.
2. Check hot-swap eligibility. The AAI143-H03 supports online replacement in most CENTUM CS 3000 node configurations, but this depends on your node unit type (ANB10D vs ANB11D) and your FCS firmware version. Verify in your system’s engineering documentation before pulling the card live. If in doubt, take the node offline.
3. No DIP switches or address jumpers on this module. The AAI143-H03 uses automatic slot addressing via the ESB bus — the node unit assigns the I/O address based on physical slot position. Do not move the replacement card to a different slot than the failed unit unless you have updated the FCS I/O map accordingly.
4. Seat the module firmly. The ESB connector requires positive engagement. You should feel and hear a definite click. A partially seated card will communicate intermittently and generate nuisance faults.
5. Verify channel-by-channel after insertion. Use the CENTUM CS 3000 HIS (Human Interface Station) to confirm all 16 channels are reading correctly. Cross-check against your loop drawings. Do not sign off the replacement until every channel is verified against a known-good reference signal.
6. HART device re-commissioning. If your transmitters use HART for remote configuration, re-establish HART communication from the HIS or a handheld HART communicator after the module swap. The HART pass-through on the AAI143-H03 does not require reconfiguration, but device descriptors may need to be re-polled.
7. Document the swap. Log the failed module’s serial number, the replacement module’s serial number, date, and the fault condition that triggered the replacement. This data is essential for warranty claims and for identifying systemic failure patterns across your installed base.

Reliability in Harsh Conditions

The AAI143-H03 was not designed for a climate-controlled server room. It was built for the reality of industrial process environments — and that reality is unforgiving.

YOKOGAWA’s CENTUM I/O hardware is rated for continuous operation across an ambient temperature range of 0°C to 55°C, with storage tolerance down to -25°C. In practice, this means the module survives the heat soak of a poorly ventilated marshalling cabinet in a Middle Eastern refinery summer, where ambient temperatures inside the cabinet can exceed 45°C even with forced-air cooling.

Vibration resistance is validated to IEC 60068-2-6 standards — the same test profile used for shipboard and heavy industrial equipment. The ESB bus connector uses a positive-locking mechanism specifically to prevent contact intermittency under sustained mechanical vibration, which is a known failure mode for older-generation I/O cards with friction-fit connectors.

Humidity tolerance extends to 95% RH non-condensing. The conformal coating on the PCB provides a meaningful barrier against moisture ingress in coastal or high-humidity environments. That said, if your marshalling cabinet has been flooded or subjected to direct water ingress, inspect the terminal board (ATB series) and backplane connectors before assuming the I/O card itself is the failed component — water damage typically attacks the wiring terminations first.

EMC performance meets IEC 61000-4 series requirements for conducted and radiated immunity. In environments with significant variable-frequency drive (VFD) noise or high-current switching loads nearby, ensure your cable routing separates signal cables from power cables by at least 300 mm, and verify that cable shields are grounded at a single point only. Improper shielding practice is responsible for a disproportionate share of analog signal quality complaints that get misdiagnosed as module failures.

Every unit we ship has been inspected for physical integrity, connector condition, and label authenticity. Modules are packed in ESD-safe bags with moisture barrier protection and shock-absorbing foam inserts — because a module that survives 15 years in a refinery should not be damaged in transit.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It gives us same-day handoff to DHL Express and FedEx International Priority for urgent shipments.

Standard Express Transit Times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days
• Europe (Germany, Netherlands, UK, France): 4–5 business days
• North America (USA, Canada): 4–6 business days
• South Asia (India, Pakistan, Bangladesh): 3–5 business days
• Australia / New Zealand: 4–5 business days

All shipments include full export documentation: commercial invoice, packing list, and certificate of origin. For destinations requiring import permits or specific customs declarations for industrial automation equipment, contact us before placing your order — we have handled export compliance for controlled industrial goods across more than 40 countries and can advise on documentation requirements specific to your destination.

Tracking numbers are provided within 24 hours of shipment. For critical downtime situations, we can arrange same-day dispatch for orders confirmed before 14:00 CST. Contact us directly via WhatsApp for urgent coordination — email response times are under 4 hours during business hours, but WhatsApp gets you a faster answer when every hour counts.

We support T/T bank transfer, L/C at sight, and PayPal for smaller orders. MOQ is 1 piece. No minimum order value for emergency replacement scenarios.
