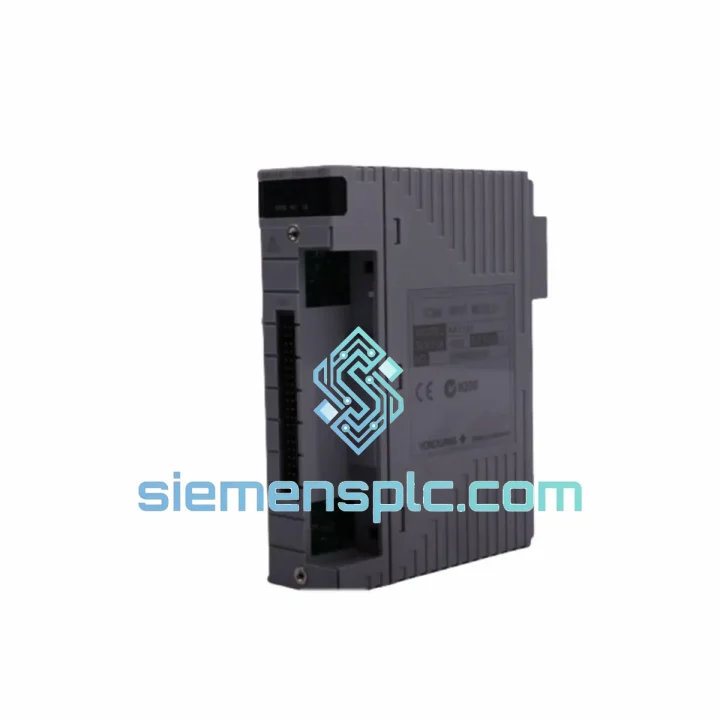

Yokogawa SDV541-S23 Digital Output Module

SDV541-S23 Down? Every Minute of Downtime Costs You — We Ship Today

Your CENTUM CS3000 or CENTUM VP field control station just threw a fault. The SDV541-S23 digital output module is dead. The line is stopped. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option.

We stock the Yokogawa SDV541-S23 in Xiamen. Verified original. Tested before dispatch. DHL Express to your plant in 48–72 hours. While your team is still diagnosing the fault, we’re already pulling the unit off the shelf.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work tells you the SDV541-S23 does not fail randomly — it fails in patterns. Here is what you are most likely dealing with and how to handle the swap without creating a second problem.

Common Fault Signatures:

• ALM LED solid red, no DO response: Internal transistor array failure. Usually triggered by a field-side short or inductive load spike without proper flyback suppression. Check your field wiring for shorts before inserting the replacement — or you will kill the new card within hours.
• Intermittent channel dropout (channels 17–24 most common): Connector oxidation on the terminal block. Clean the nest connector pins with IPA before seating the new module. If the fault persists after swap, the nest backplane connector may be damaged.
• Module recognized by FCS but outputs stuck LOW: Firmware mismatch between the module revision and the FCS software version. Check the module hardware revision label stamped on the PCB edge. CS3000 R3.08 and below may require a configuration download after hot-swap.
• FCS reports IOM communication error immediately on insertion: ESB bus address conflict. The SDV541-S23 uses auto-addressing via the nest slot position — verify no other module is occupying the same logical slot in the FCS configuration. If you moved the module to a different physical slot, update the I/O assignment in CENTUM VP Builder before going live.

Replacement Procedure — Hot-Swap Capable in Most Configurations:

• Confirm the FCS is in MANUAL mode for all loops tied to this DO card before extraction.
• Loosen the module locking screw — do not yank. The ESB connector is fragile under lateral force.
• Seat the replacement SDV541-S23 firmly until the locking tab clicks. Partial insertion causes intermittent bus errors that are extremely difficult to diagnose.
• Monitor the FCS status display for 60 seconds post-insertion. The module self-initializes and should report NORMAL within 30 seconds on CS3000 R3.x systems.
• For CENTUM VP systems, verify the module status in System View before returning loops to AUTO.
• Document the replaced module serial number and installation date in your maintenance log. Yokogawa MTBF data shows clustering of failures in modules over 12 years of continuous service.

Suffix Code S23 — What It Means: The S23 suffix designates a specific terminal block type and isolation class. Do not substitute an S13 or S33 without verifying field wiring connector compatibility. The channel mapping is identical, but the terminal block pitch differs — forcing an incompatible suffix will damage the wiring harness.

Reliability in Harsh Conditions

The SDV541-S23 was engineered for environments that would destroy consumer-grade electronics in weeks. Yokogawa industrial qualification subjects this module to conditions that mirror the worst-case scenarios found in petrochemical plants, offshore platforms, and heavy manufacturing facilities.

Optical isolation between the field terminals and the system bus means that a 500V transient on your output wiring — from a valve actuator coil or a relay arc — does not propagate to the FCS backplane. The transistor output stage handles continuous inductive loads with proper external suppression, and the conformal-coated PCB resists moisture ingress in high-humidity environments common in coastal and tropical plant locations.

Vibration tolerance is validated to IEC 60068-2-6 standards, making the SDV541-S23 suitable for installation in compressor buildings and pump houses where structural vibration is constant. The module locking mechanism maintains positive electrical contact under vibration conditions that would cause unseated modules to generate intermittent faults.

Operating temperature ceiling of 55°C covers the majority of industrial control room environments, including those without dedicated HVAC where ambient temperatures spike during summer shutdowns. For installations approaching this limit, ensure FCS cabinet ventilation is unobstructed and nest fan units are functional before assuming the module is at fault.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. This is not a drop-ship operation. The unit is physically on our shelf, inspected, and ready to pack the moment your order is confirmed.

• Order cutoff: Orders confirmed before 15:00 CST ship same business day.
• DHL Express: Southeast Asia 24–36 hrs | Middle East 48–72 hrs | Europe 48–72 hrs | Americas 72–96 hrs
• FedEx International Priority: Available as alternative carrier on request — useful for destinations where DHL has service disruptions.
• Export documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS Code 8537.10.99 declared accurately — no customs surprises.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments actively and flag any customs holds immediately.
• Emergency freight: For critical shutdowns requiring next-flight-out courier, contact us directly on WhatsApp. We have handled plant emergency logistics to 40+ countries.

A module sitting in customs clearance is as useless as one still on our shelf. Our export team handles documentation proactively to minimize clearance delays, particularly for destinations with strict import controls on electronic components.
