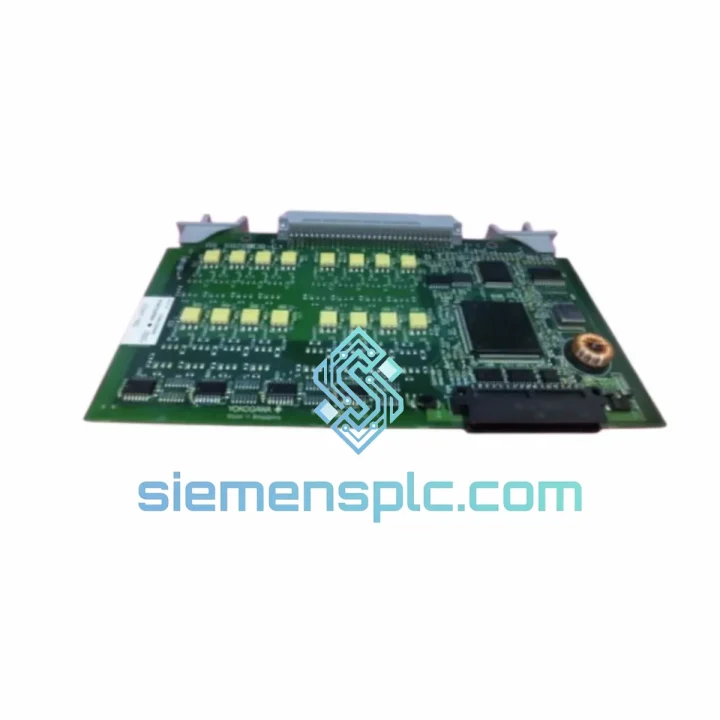

YOKOGAWA ADM51-2 S4 DCS Analog Output Module – CENTUM CS CS3000

YOKOGAWA ADM51-2 S4 — 8-Channel Analog Output Card in the CENTUM CS/CS3000 Control Loop Architecture

The ADM51-2 S4 is a field-hardened analog output card engineered for YOKOGAWA’s CENTUM CS and CENTUM CS3000 Distributed Control Systems. In the control loop hierarchy, this card occupies the final digital-to-analog conversion stage between the Field Control Station (FCS) and the physical process: it receives 12-bit digital output values from the FCS over the I/O backplane bus and converts them into precision 4–20 mA current loop signals that drive final control elements — pneumatic valve positioners, variable-frequency drives, electro-hydraulic actuators, and current-input transmitters operating in reverse-acting configurations.

The S4 hardware revision represents YOKOGAWA’s fourth-generation PCB layout for this card family, incorporating revised EMC suppression components and improved thermal dissipation traces compared to S1 through S3 revisions. Electrically and functionally, the S4 is fully backward-compatible with all CENTUM CS and CS3000 I/O nests — no FCS re-engineering, tag reassignment, or software modification is required when substituting an S4 for an earlier revision.

For process plants operating CENTUM CS or CS3000 systems with 10–25 year operational horizons, maintaining a verified stock of ADM51-2 S4 cards is a standard spare-parts strategy. Unplanned analog output card failures in critical loops — reactor feed, turbine governor, boiler combustion air — carry significant production risk. Having a pre-qualified replacement on the shelf reduces mean time to repair (MTTR) from days to under one hour.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

D/A Conversion Architecture: Each of the eight output channels on the ADM51-2 S4 is served by a dedicated digital-to-analog converter cell. The 12-bit resolution maps the FCS output range (0–4095 counts) to the 4–20 mA span with a step size of approximately 3.9 µA per count — sufficient for sub-0.1% positioning accuracy on most pneumatic valve positioners. The active current source topology means the card drives the loop current directly, rather than relying on a voltage-to-current converter at the field terminal, which eliminates one potential source of calibration drift in long cable runs.

Channel-to-Channel Isolation: Each output channel is galvanically isolated from adjacent channels and from the backplane bus logic. This isolation architecture prevents ground loop currents — common in multi-instrument field wiring where cable shields are grounded at multiple points — from coupling noise between channels. In petrochemical environments where field wiring may run parallel to high-voltage motor cables for tens of meters, this isolation is a functional requirement, not a convenience feature.

EMC Design (S4 Revision): The S4 PCB revision incorporates revised transient suppression components on the field-side output lines, improving compliance with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) test levels. In environments with frequent switching of large inductive loads — motor starters, solenoid valves — the S4 revision demonstrates measurably lower susceptibility to output glitches compared to S1/S2 revisions under the same EMC test conditions.

Fail-Safe Output Behavior: On loss of communication with the FCS (backplane bus timeout), the ADM51-2 S4 supports configurable fail-safe output modes: hold last value (HOLD) or drive to a preset engineering-unit value (PRESET). The fail-safe mode and preset value are configured in the FCS I/O builder and stored in non-volatile memory on the card. This behavior is critical for safety-instrumented loops where an undefined output state on communication loss is unacceptable.

Thermal Management: The S4 PCB layout redistributes power dissipation components to reduce localized hot spots that were identified in S3 field returns. Operating at the rated maximum ambient of 55°C, the S4 revision maintains junction temperatures within component derating curves, contributing to extended MTBF in high-ambient enclosures common in tropical process plants.

System Integration Benefits

• Zero-Configuration Drop-In Replacement: The ADM51-2 S4 is electrically and mechanically identical to all prior ADM51-2 revisions. Swapping a failed card requires no FCS download, no tag reassignment, and no I/O builder modification — the replacement card inherits all configuration from the FCS on power-up.
• Hot-Swap Support in Redundant Configurations: In CENTUM CS3000 redundant I/O configurations, the ADM51-2 S4 supports online card replacement without interrupting the active output channel. The standby card mirrors the active card’s output state continuously, enabling sub-second switchover on active card failure.
• Deterministic Output Update Rate: Output values are refreshed at the FCS scan period (typically 100 ms or 500 ms, configurable), ensuring that control loop output updates are synchronous with the FCS control calculation cycle. This determinism is essential for cascade control structures where output timing affects inner-loop stability.
• Integrated Diagnostic Transparency: The card reports channel-level diagnostic status to the FCS, including open-loop detection (output current below 3.8 mA indicating a broken field wire or disconnected device) and over-range conditions. These diagnostics surface as alarm tags in the CENTUM HIS operator station without requiring additional field instrumentation.
• Backplane Bus Integrity Monitoring: The ADM51-2 S4 participates in the CENTUM I/O bus health monitoring protocol. Communication errors between the FCS and the card are logged with timestamp and error code in the FCS event log, providing a traceable maintenance record for reliability engineers.
• Multi-Loop Density: Eight independently isolated output channels per card slot reduces the number of card slots required for multi-loop output sections. In a 16-loop analog output section, two ADM51-2 S4 cards replace what would require four 4-channel cards in older I/O architectures, freeing nest slots for additional I/O types.
• Compatibility with CENTUM CS3000 R3 and Later Software: The ADM51-2 S4 is recognized by CENTUM CS3000 R3.08 and all subsequent software releases. No special I/O builder patch or firmware update is required for S4 revision recognition — the FCS identifies the card by its hardware ID register on initialization.
• Support for Reverse-Acting and Split-Range Configurations: The FCS I/O builder allows per-channel engineering unit scaling, enabling reverse-acting output (20 mA = 0% output) and split-range configurations (two channels driving complementary valve pairs from a single PID output) without external signal conditioning hardware.

Quality Assurance & Global Logistics

Every ADM51-2 S4 unit supplied by siemensplc.com is sourced through verified industrial automation supply channels. Units are inspected prior to dispatch: PCB surface condition, component integrity, revision label (S4 silkscreen marking on PCB and product label), and edge connector pin condition are verified against acceptance criteria. Cards are shipped in ESD-safe anti-static bags inside foam-lined cartons rated for international air freight handling.

Shipments originate from Xiamen, China, via DHL Express or FedEx International Priority. Typical transit times: 3–5 business days to Southeast Asia and East Asia; 5–7 business days to Europe, the Middle East, and North America; 7–10 business days to South America and Africa. Export documentation — commercial invoice, packing list, and HS code declaration — is prepared for each shipment to facilitate customs clearance. For orders requiring an Importer of Record (IOR) service or specific country-of-origin certification, contact us prior to order placement.

All units carry a 12-month warranty from the date of shipment. Units that exhibit functional failure under normal operating conditions within the warranty period will be replaced or credited. Warranty claims require a brief failure description and, where possible, the FCS diagnostic log entry associated with the failure event.
