YOKOGAWA AMN21 Analog Input Module

YOKOGAWA AMN21 — When Your DCS Goes Blind, Every Minute Costs Money

It’s 2:47 AM. Your CENTUM CS3000 FCS throws a module fault. Analog inputs on the affected nest go to BAD status. The operator switches to manual, but with 32 channels dead, your refinery unit is running on instinct, not data. You need an AMN21 on the rack before the next shift handover — not in three weeks. That’s exactly why we stock it in Xiamen, ready to clear customs and land on your doorstep via DHL Express within 3–5 business days, anywhere on the planet.

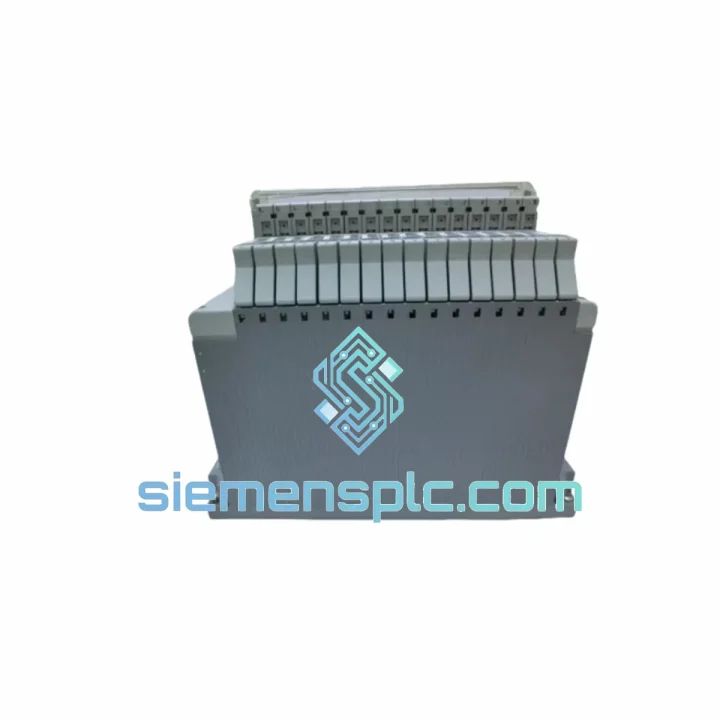

The YOKOGAWA AMN21 is a multi-channel analog input module native to the CENTUM CS3000 and CENTUM VP distributed control systems. It sits inside the I/O nest, converts 4–20 mA and voltage field signals into the digital process values your FCS uses for PID loops, safety interlocks, and historian logging. No AMN21 means no closed-loop control. The math is simple: get the module, restore the loop, protect the process.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault indicators that point to a failed AMN21:

• CENTUM HIS alarm: IOM FAIL or AI CARD FAULT on the affected nest slot
• All channels on the nest reporting BAD quality or fixed value (e.g., 0.0 or –999)
• FCS diagnostic log showing Module Communication Error on the I/O bus address
• LED status on the module: RUN LED off, ERR LED solid red or fast-blinking
• Intermittent channel dropouts that correlate with ambient temperature spikes — early sign of capacitor aging

Before you pull the card — verify these first:

• Check the I/O nest power supply (ANB10/ANB11 PSU). A sagging 5 V rail will kill the module before the module kills itself.
• Confirm the nest bus terminator is seated. A missing terminator causes cascading communication errors across all slots.
• Run CENTUM’s IOM Self-Test from the FCS maintenance menu. If the test passes, the fault is upstream (field wiring or transmitter), not the AMN21.

Replacement procedure — field-tested steps:

1. Inhibit the I/O block in CENTUM Engineering Builder before touching the card. This prevents the FCS from generating spurious alarms and writing bad values to the historian during the swap.
2. Hot-swap is supported — you do not need to power down the nest. However, confirm your FCS revision supports online replacement for the AMN21 slot type. CS3000 R3.x and VP R6.x and later are generally safe.
3. No address DIP switches on the AMN21 — the module address is determined by physical slot position in the nest. Seat the replacement in the identical slot. The FCS auto-recognizes it within 10–30 seconds.
4. Firmware matching: The AMN21 carries embedded firmware. CENTUM VP systems running R6.06 or later may flag a firmware mismatch warning if the replacement module carries an older firmware revision. This is a warning, not a hard fault — the module will operate, but schedule a firmware update during the next maintenance window via CENTUM’s IOM Firmware Download tool.
5. Re-enable the I/O block and verify all channels return to GOOD quality. Cross-check live readings against field transmitter local indicators on at least 3 channels before releasing the loop to automatic.
6. Document the swap: Record the replaced module’s serial number, slot address, nest ID, and FCS tag in your plant maintenance system. YOKOGAWA support may request this for warranty or reliability tracking.

Post-replacement calibration check: The AMN21 does not require field calibration after replacement — calibration data is stored in the FCS, not the module. However, if your process uses HART pass-through on any channel, re-initiate the HART communication scan from the FCS after the swap to re-establish device descriptors.

Reliability in Harsh Conditions

The AMN21 was not designed for a climate-controlled server room. It was built for the realities of a process plant: heat, vibration, humidity, and the occasional power transient that would kill consumer-grade electronics outright.

YOKOGAWA subjects CENTUM I/O modules to IEC 61131-2 environmental testing as part of the product qualification cycle. The AMN21 is validated against sinusoidal vibration profiles up to 10–57 Hz at 0.075 mm amplitude and 57–150 Hz at 1 g — covering the frequency range generated by rotating machinery, compressors, and pump skids mounted near the control cabinet. Shock resistance is tested to 15 g, 11 ms half-sine pulse, which accounts for the mechanical impacts common during panel installation and maintenance.

Thermal cycling tests push the module through repeated excursions between operating extremes, verifying that solder joints, connector contacts, and onboard components maintain integrity after hundreds of thermal cycles — the kind of stress that accumulates over a 15-year DCS lifecycle. Humidity testing at 95% RH non-condensing ensures the conformal coating on the PCB prevents corrosion in coastal refineries, offshore platforms, and tropical chemical plants where ambient moisture is a constant threat.

EMC compliance (IEC 61000-4 series) covers conducted and radiated immunity, ESD protection, and fast transient burst immunity — critical in environments where VFDs, large motor starters, and high-voltage switchgear share the same cable trays as instrument signal wiring. The AMN21 will not drop a channel because a nearby 400 kW motor started up.

Every unit we ship has been stored in climate-controlled, ESD-safe conditions. Modules are inspected for connector pin integrity, PCB surface condition, and label authenticity before packaging. You are not getting a module that sat in a damp warehouse for five years.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible access to DHL Express, FedEx International Priority, and UPS Worldwide Express services for urgent industrial shipments.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Australia / New Zealand: 3–4 business days via DHL Express

Our export process for industrial modules:

1. Order confirmation: We issue a proforma invoice within 4 business hours of inquiry. Payment terms are confirmed at this stage (T/T, wire transfer, or agreed credit terms for established accounts).
2. Pre-shipment inspection: The AMN21 unit is pulled from stock, photographed, and inspected. You receive photo documentation before we pack.
3. ESD-safe packaging: The module is wrapped in anti-static poly bag, placed in foam-lined inner box, and packed in a double-wall corrugated outer carton. Fragile and ESD-sensitive labels are applied.
4. Export documentation: We prepare the commercial invoice, packing list, and certificate of origin. For destinations requiring HS code declaration, we use HS 8537.10 (control panels for voltage ≤1,000 V) or the applicable subheading for your customs authority. We can provide a formal letter of conformity on request.
5. Tracking: AWB number is sent to you within 2 hours of carrier pickup. You receive real-time tracking via DHL/FedEx portal.
6. Customs clearance support: For destinations with complex import requirements (India, Brazil, Indonesia), we provide additional documentation support to minimize customs hold delays.

For genuine plant emergencies — production stopped, safety system degraded — contact us directly on WhatsApp. We will prioritize your order and arrange same-day dispatch if stock is confirmed before 3:00 PM CST.
