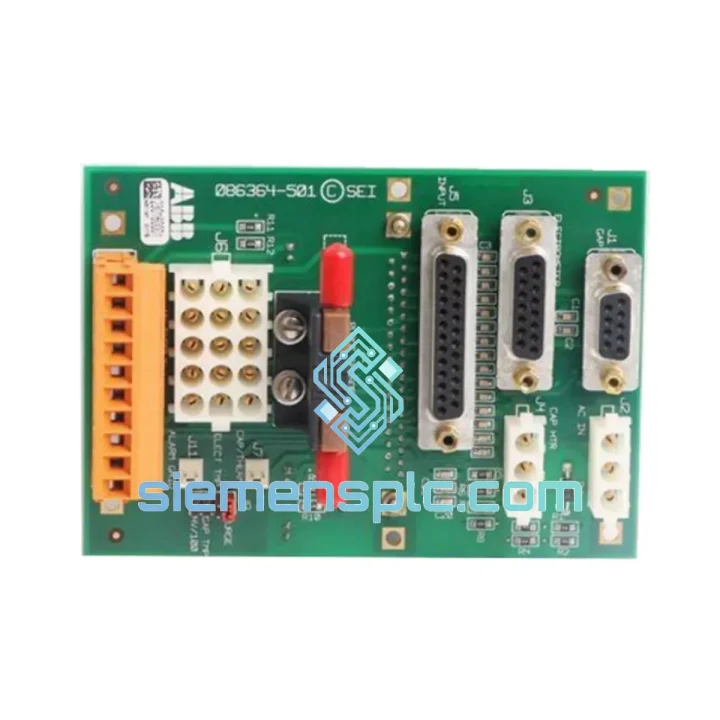

ABB 3BHE022287R0001 UCD240A01 Converter Module

ABB 3BHE022287R0001 UCD240A01 — Stop the Bleeding: Get Your Drive Back Online Before the Next Shift

Your ACS/ACS800 or medium-voltage drive cabinet just tripped. The HMI is dark, the motor is locked out, and your maintenance team is staring at a fault code that points straight to the converter control board. You already know what needs to happen — the ABB 3BHE022287R0001 (UCD240A01) has to come out and a verified replacement has to go in. The question is not what to do. It is how fast you can get the part.

We stock the 3BHE022287R0001 UCD240A01 at our Xiamen warehouse. Same-day dispatch is available for orders confirmed before 15:00 CST. DHL Express and FedEx International Priority put this module on your bench in 2–5 business days, anywhere from Rotterdam to Riyadh to Rayong. Every hour your line sits idle costs real money — we exist to cut that number down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed 3BHE022287R0001:

• Fault 7001 / 7002 (PPCS Link Fault): The drive loses fiber-optic communication with the inverter or rectifier section. Before condemning the PPCS board, swap the UCD240A01 first — it is the more common failure point and far cheaper to replace.
• Fault 3210 (DC Bus Overvoltage at Light Load): Erratic DC bus readings with no load change often indicate a degraded voltage feedback path on the converter module. Check for burnt smell or discolored components around the signal conditioning section of the board.
• Intermittent Drive Trips with No Repeatable Fault Code: Thermal cycling causes micro-fractures in solder joints on the UC D240 A01 board. If the drive runs fine in the morning and trips after 2–3 hours of operation, this module is a prime suspect.
• Gate Drive Asymmetry (Fault 2310): Uneven IGBT firing patterns traced back to the converter control signal path — the UCD240A01 generates and conditions these gate pulses.

Step-by-step replacement procedure (field-verified):

1. Full lockout/tagout. Verify DC bus is fully discharged — minimum 5 minutes after main contactor opens, confirm with a calibrated meter across the DC bus terminals. Do not skip this. The capacitor bank in ACS800 cabinets holds lethal charge.
2. Document fiber connections before removal. The PPCS fiber cables on the UCD240A01 are color-coded but the routing can be ambiguous in cramped cabinets. Photograph the as-found state.
3. Check DIP switch / jumper settings on the old board. The UC D240 A01 has address jumpers that configure the module’s position in the drive’s internal communication ring (typically SW1 on the PCB edge). Record the exact setting before pulling the board — the replacement must match identically or the drive will fault on startup with a node address conflict.
4. Firmware version check. After installation, connect the ABB Drive Composer or DriveWindow tool and verify the firmware version reported by the new module matches the drive’s parameter set. A mismatch between the UCD240A01 firmware and the RDCU/RMIO control unit firmware will cause Fault 6310 (Parameter Restore Error). If versions differ, perform a parameter backup from the old drive before the swap and restore after.
5. Cold start sequence. Power up the drive in local control mode first. Monitor the DC bus charge sequence and verify the converter module’s status LED sequence: steady green within 8 seconds of power-on indicates successful PPCS link establishment. Flashing amber means the fiber link is not established — recheck fiber seating and address jumpers.
6. Load test at 25%, 50%, 75%, 100%. Do not return the drive to automatic production control until you have confirmed stable operation across the load range. Log the DC bus voltage, output current, and heatsink temperature at each step.

Configuration items that are frequently missed:

• Node address jumpers (SW1) — must match the original board’s position in the PPCS ring.
• Firmware compatibility — UCD240A01 firmware must align with the RDCU/RMIO version in the same cabinet.
• Fiber cable bend radius — PPCS fiber is fragile. Any kink introduced during the swap will cause intermittent link faults that are extremely difficult to diagnose.
• ESD precautions — the signal conditioning circuitry on this board is sensitive. Use a grounded wrist strap. Do not place the board on an ungrounded metal surface.

Reliability in Harsh Conditions

The UC D240 A01 platform was designed for environments that would destroy consumer-grade electronics in hours. ABB’s manufacturing specification for this module series includes:

• Vibration resistance: Qualified to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-64 (random vibration), covering the mechanical stress profiles typical of compressor rooms, pump stations, and marine engine rooms.
• Thermal cycling endurance: The PCB substrate and component selection are rated for continuous operation at +55 °C ambient, with short-term excursions to +70 °C. Conformal coating on production variants provides additional protection against condensation during thermal cycling.
• Humidity tolerance: Designed to IEC 60068-2-78 (damp heat, 40 °C / 93% RH) — relevant for coastal installations, tropical climates, and poorly ventilated switchgear rooms.
• EMC immunity: The PPCS fiber-optic interface eliminates ground loop issues and provides inherent galvanic isolation between the control section and the power section, a critical reliability factor in high-power drive cabinets where common-mode noise is severe.
• Component longevity: ABB specifies industrial-grade electrolytic capacitors with 105 °C ratings throughout the power supply section of the UC D240 A01. This directly extends MTBF in thermally stressed installations compared to modules using 85 °C-rated components.

In wind turbine nacelle applications — one of the most demanding environments for electronics, combining vibration, wide temperature swings, and high humidity — the 3BHE022287R0001 has demonstrated multi-year service intervals when installed correctly and maintained per ABB’s recommended inspection schedule.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian, China — a major international cargo gateway with direct DHL, FedEx, and UPS connections to all major global hubs. Here is how a typical urgent order moves:

• Order confirmed before 15:00 CST: Same-day packing and dispatch. Export documentation (commercial invoice, packing list, HS code declaration) prepared in parallel.
• DHL Express Worldwide: Xiamen → Frankfurt: ~2 business days. Xiamen → Dubai: ~2 business days. Xiamen → Singapore: next business day. Xiamen → Houston: ~3 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage (e.g., parts of Southeast Asia and the Middle East).
• Export compliance: The 3BHE022287R0001 is an industrial automation component with no ITAR/EAR restrictions. Standard commercial export documentation is sufficient for all destinations we serve.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds immediately.
• Customs value declaration: Accurate and compliant. We do not under-declare. This protects you from customs delays and penalties at the destination port.

For customers in the EU, we can ship DDP (Delivered Duty Paid) on request, eliminating customs clearance burden on your end entirely. Contact us to confirm DDP availability for your country.
