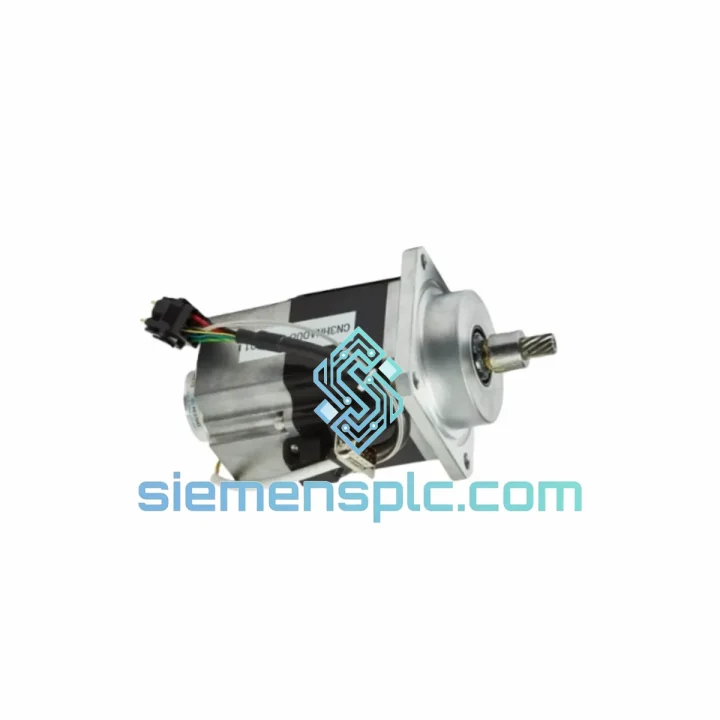

ABB 3HAC030006-001 AC Servo Motor M41 – IRB2600 IRB6600 Series

ABB 3HAC030006-001 / 3HAC022544-008 / 3HAC069655-001 — Rotational AC Servo Motor M41 for IRB2600 & IRB6600 Industrial Robot Platforms

The ABB M41 rotational AC servo motor — cross-referenced under part numbers 3HAC030006-001, 3HAC022544-008, and 3HAC069655-001 — is the axis-drive component responsible for closed-loop torque and velocity control on the IRB 2600 and IRB 6600 robot families. Within the ABB IRC5 motion control architecture, each axis motor operates under direct command from the drive module (DSQC 661 or equivalent), receiving sinusoidal PWM excitation at switching frequencies typically in the 4–8 kHz range. The motor’s resolver or encoder feedback is routed through the Serial Measurement Board (SMB), which samples position data at sub-millisecond intervals and feeds it back to the axis computer for real-time trajectory correction. This closed-loop chain — drive → motor → resolver → SMB → axis computer — defines the deterministic motion performance that ABB’s IRC5 platform is engineered to deliver.

The M41 designation within ABB’s internal motor classification indicates a mid-frame brushless AC servo unit optimized for the payload and reach envelope of the IRB 2600 (12 kg / 1.65 m) and the heavier IRB 6600 (125–175 kg payload) configurations. While both robot families share the M41 motor in specific axis positions, the mechanical mounting interface, cable harness routing, and resolver phasing may differ by axis number and robot generation — always cross-reference the robot’s serial number and axis configuration before ordering.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The M41 motor’s permanent magnet rotor construction eliminates the rotor copper losses inherent in induction motor designs, yielding a higher torque-to-inertia ratio that is critical for the high-acceleration, short-stroke move profiles common in arc welding and machine-tending applications. The stator windings are wound in a distributed configuration to minimize cogging torque — a parameter that directly affects path accuracy at low speeds, where ABB specifies path repeatability of ±0.04 mm for the IRB 2600.

The resolver feedback mechanism deserves particular attention from a maintenance engineering perspective. Unlike optical encoders, the resolver is a transformer-based device with no active electronics in the motor body. It generates sine and cosine output voltages proportional to rotor angle, which the SMB digitizes using a resolver-to-digital converter (RDC) with 16-bit angular resolution. This architecture is inherently robust against vibration, contamination, and temperature extremes — conditions that would degrade optical encoder performance in foundry or press-shop environments.

EMC design on the M41 follows ABB’s standard for industrial servo motors: the motor cable shield is terminated at both the motor housing and the drive cabinet entry point, creating a low-impedance return path for high-frequency common-mode currents induced by the PWM drive output. The motor housing itself is die-cast aluminum, providing both structural rigidity and a Faraday shield effect that attenuates radiated emissions from the stator windings. Bearing currents — a known failure mode in PWM-driven servo motors — are mitigated through insulated bearing designs on selected axis positions, consistent with ABB’s IRC5 drive architecture guidelines.

The thermal management strategy relies on the motor’s thermal mass and the IRC5 drive’s software-based thermal model. The drive continuously estimates winding temperature using a motor thermal model parameterized during commissioning, and will derate output current before the physical winding temperature reaches the Class F limit of 155°C. This predictive derating prevents insulation degradation without requiring a physical temperature sensor in the motor body — a design choice that reduces connector count and improves long-term reliability.

System Integration Benefits

• Direct drop-in replacement: The M41 motor is a factory-matched component for the IRB 2600 and IRB 6600 axis positions it serves. No drive re-parameterization is required when replacing a failed unit with the same part number — the IRC5 motor parameter files are pre-loaded for this motor type.
• Resolver-based feedback eliminates encoder battery dependency: Unlike absolute multi-turn encoders that require battery backup for position retention, the ABB resolver system performs a calibration routine (revolution counter update) on power-up, removing the risk of position loss due to battery failure during extended shutdowns.
• Thermal model integration with IRC5: The drive’s built-in motor thermal model provides continuous winding temperature estimation without additional hardware, enabling predictive maintenance alerts through the FlexPendant or RobotStudio without modifying the robot’s wiring harness.
• Consistent path accuracy across axis positions: The M41’s low cogging torque and high resolver resolution (16-bit) support the IRC5’s path interpolation algorithm, maintaining the IRB 2600’s rated path repeatability of ±0.04 mm even at reduced speeds where cogging effects are most pronounced.
• Foundry-rated variants available: For IRB 6600 Foundry Plus configurations, the M41 motor is available with IP67 sealing and high-pressure wash-down resistance, allowing direct replacement in harsh environments without compromising the robot’s environmental protection rating.
• Compatibility with IRC5 diagnostic tools: The motor’s resolver signal quality can be assessed directly through ABB’s Service Information System (SIS) and RobotStudio’s diagnostic interface, enabling non-invasive condition monitoring without disassembly.
• Reduced MTTR (Mean Time To Repair): Because the M41 is a self-contained motor-resolver assembly with a single multi-pin connector, field replacement requires only mechanical disassembly and connector re-mating — no resolver phasing adjustment or encoder calibration is needed, reducing typical axis motor replacement time to under two hours for a trained technician.
• Supply chain traceability: Each genuine ABB motor carries a traceable serial number cross-referenced in ABB’s parts database, enabling warranty validation and counterfeit detection through ABB’s official verification channels.

Quality Assurance & Global Logistics

Every unit of ABB 3HAC030006-001 / 3HAC022544-008 / 3HAC069655-001 dispatched from our Xiamen, China facility is a genuine ABB OEM component sourced through verified industrial supply channels. Prior to shipment, each motor undergoes a structured inspection protocol: visual examination of OEM labeling, connector pin integrity, housing condition, and resolver connector seating. Part numbers and serial numbers are cross-referenced against ABB’s official parts database to confirm authenticity before packaging.

Packaging follows anti-static and mechanical shock protection standards appropriate for precision servo motors: individual anti-static bags, foam-lined cartons, and moisture-desiccant inserts for sea freight consignments. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments, with HS code guidance provided to facilitate customs clearance in major import markets including the EU, USA, Southeast Asia, and the Middle East.

Logistics options from Xiamen include DHL Express (2–4 business days to most destinations), FedEx International Priority, UPS Worldwide Express, and consolidated air freight for multi-unit orders. In-stock units ship within 1–2 business days of order confirmation. A 12-month warranty against manufacturing defects is provided on all units, with documented RMA procedures for warranty claims.
