ABB 3HAC037635-002 RV Gear 70F-125.8 — Your IRB6600 Joint Is Down. Every Minute Costs You.

Axis position error. Torque deviation alarm. The IRB6600 is locked out and the line is stopped. You’ve isolated the fault to the joint reducer — the 3HAC037635-002 RV Gear 70F-125.8. This is not a part you improvise around. The RV reducer is the mechanical heart of the robot’s joint; without it, you have a 200 kg paperweight. We have this unit in Xiamen, cleared for same-day dispatch. The question is how fast you can get it moving.

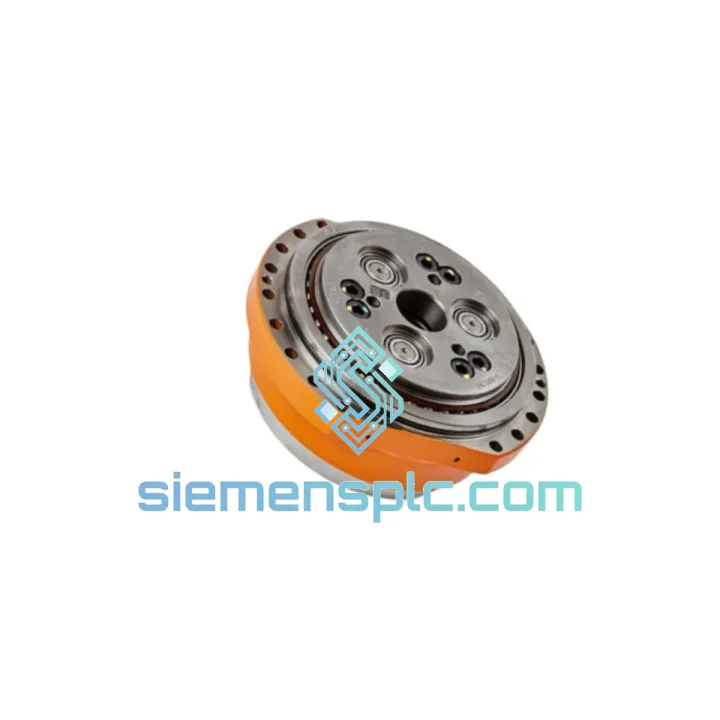

The 3HAC037635-002 is ABB’s OEM-specified Rotate Vector (RV) reducer for the IRB6600 series — a high-payload robot deployed across automotive body-in-white lines, heavy press tending, and palletizing cells. The 70F frame with 125.8 reduction ratio is precision-matched to the joint’s torque and speed envelope. Aftermarket substitutes with similar ratios will not hold positional accuracy under load. This is the part ABB specifies. This is what we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point to the RV reducer on IRB6600:

• 50024 — Joint speed too high: The reducer’s internal cycloidal elements wear unevenly over high-cycle operation. As backlash increases, the servo loop overcompensates, triggering speed overshoot faults. If tuning the axis servo parameters doesn’t resolve it, the reducer is the root cause.
• 50296 — Motor temperature too high: A worn reducer increases the mechanical load on the drive motor. If the motor runs hot with no change in ambient temperature or duty cycle, check reducer drag torque before condemning the motor.
• 38013 / 38014 — Motor current deviation: Excessive internal friction in a degraded RV gear causes current draw to spike beyond the drive’s expected envelope. This fault often appears intermittently before becoming permanent.
• 90501 — Path accuracy error: The most direct indicator of reducer wear. When the robot can no longer hold programmed path accuracy within tolerance, and calibration does not recover it, the reducer’s backlash has exceeded the servo system’s compensation range.

Replacement procedure — field-tested sequence:

1. LOTO first. Robot in manual mode, brakes engaged, IRC5 cabinet de-energized. Confirm zero stored energy in the drive section before opening the arm.
2. Record calibration data. Pull the current fine calibration offsets from the FlexPendant (Calibration → Fine Calibration → View). Write them down or photograph the screen. You will need these after reinstallation.
3. Drain joint lubrication. The IRB6600 joint housing retains grease. Place a catch tray and remove the drain plug before disassembly. Reuse of contaminated grease after reducer replacement accelerates wear on the new unit.
4. Mark shaft orientation. Before removing the motor, mark the output shaft and housing with a paint pen. The RV gear’s input shaft must be reinstalled in the same rotational position to preserve the calibration reference point.
5. Remove motor and coupling. Disconnect motor power and brake cables at the arm connector block. Remove the coupling between motor shaft and reducer input. Do not allow the joint to move freely under gravity — support the arm segment.
6. Extract the reducer. Remove the mounting bolts in a cross pattern to release the reducer from the joint housing. The unit may require light tapping to break the sealing compound — do not use a pry bar against the gear face.
7. Install 3HAC037635-002. Clean the mating surfaces. Apply fresh sealing compound per ABB specification. Torque mounting bolts to the value specified in the IRB6600 product manual (section on joint overhaul). Do not over-torque — the housing is aluminum.
8. Repack with fresh grease. Use only ABB-specified grease type for this joint. Quantity is specified in the maintenance manual. Under-greasing causes premature failure; over-greasing causes seal blowout and contamination.
9. Reconnect motor and cables. Verify brake cable polarity before powering up. A reversed brake connection will cause an immediate fault and potential uncontrolled axis movement on power-up.
10. Fine calibration. Use the calibration pendulum or Levelmeter 2000 per ABB procedure. Do not skip or approximate this step — path accuracy depends entirely on it.
11. Slow-speed validation. Run the axis at 10% speed through its full range. Monitor current draw on the IRC5 drive module. Listen for any abnormal noise from the joint. Confirm no fault codes before returning to production speed.

Configuration note: The 3HAC037635-002 is a passive mechanical assembly — no DIP switches, no firmware, no address configuration required. However, if the robot’s MOC.cfg (Motor Calibration Configuration) has been manually edited at any point, verify that the gear ratio parameter for the affected axis still matches 125.8 after reinstallation. A mismatch here will cause persistent path errors that look like a calibration problem but are actually a configuration fault.

Reliability in Harsh Conditions

The IRB6600 operates in environments that are genuinely hostile to precision mechanical components. Automotive press lines run at sustained high ambient temperatures with vibration transmitted through the robot base from press impact cycles. Foundry and die-casting cells add thermal cycling, airborne particulate, and coolant mist to the equation. The 3HAC037635-002 is built to ABB’s specifications for exactly these conditions.

The RV gear’s cycloidal reduction mechanism inherently handles shock loads better than planetary or harmonic drive alternatives — the load is distributed across multiple contact points simultaneously, which is why ABB specifies this design for high-payload joints. The housing is sealed to the IRB6600’s protection class rating. Internal bearing races are hardened and ground to tolerances that maintain backlash within specification across the rated service interval, even under continuous high-cycle operation.

Units in our inventory are stored in controlled conditions — temperature-regulated, humidity-monitored, and protected from vibration. Incoming units undergo visual inspection of housing integrity, gear face condition, and label authenticity before being cleared for stock. We do not hold units that show any sign of prior installation, repackaging, or label tampering. What ships to you is what ABB manufactured.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — a primary export hub with direct DHL Express and FedEx International gateway access. Here is the exact sequence from your order confirmation to the part in your hands:

• Order confirmed before 15:00 CST: Same-day pick, pack, and carrier handover. No next-day processing delays.
• DHL Express Worldwide: Xiamen to Western Europe — 2 to 3 business days. Xiamen to North America — 3 to 4 business days. Xiamen to Southeast Asia — 1 to 2 business days.
• FedEx International Priority: Available for destinations with stronger FedEx coverage — Middle East, East Africa, South America.
• Export documentation: Commercial invoice, packing list, and certificate of conformity prepared for every shipment. HS code 8483.40.90 declared correctly. No under-declaration, no misdescription — your import compliance is protected.
• Tracking: AWB number sent within 2 hours of carrier pickup. Direct tracking link provided. No chasing required.
• Emergency protocol: For active production shutdowns, contact us on WhatsApp before placing the order. We confirm stock, stage the shipment, and have it moving before the paperwork is complete. That is how field emergencies get handled.
