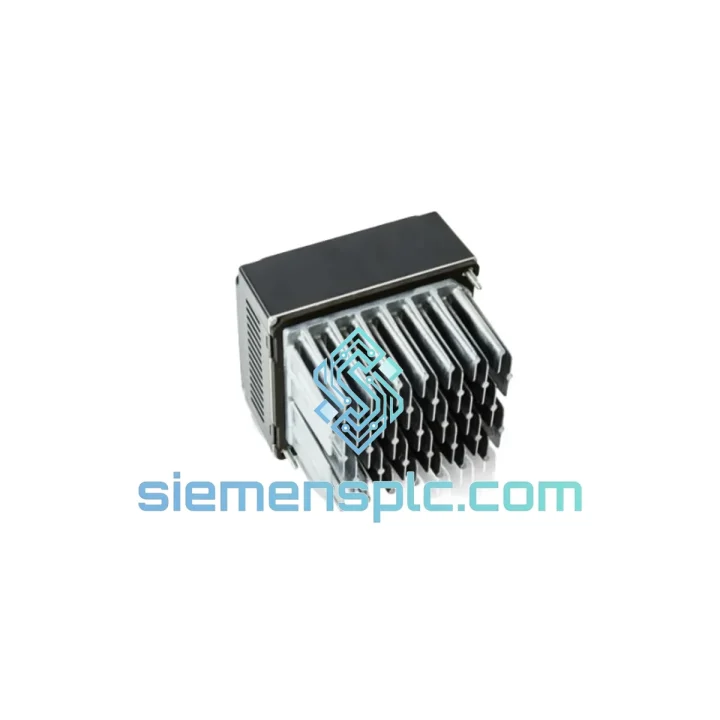

ABB PDB-02 3HNA023093-001 Rectifier Module

ABB PDB-02 3HNA023093-001 — Stop the Clock on Your IRB2400 Downtime

Every minute your IRB2400 line sits dead costs real money. A failed PDB-02 rectifier board is one of the most common single-point failures in the ABB S4C+ controller cabinet — and it’s also one of the fastest to fix when you have the right part on hand. We stock the ABB PDB-02 (3HNA023093-001) in Xiamen and ship globally via DHL/FedEx Express. From your purchase confirmation to the part clearing customs, we move faster than your maintenance window allows you to wait.

This is not a catalog listing. This is a field-ready replacement sourced, tested, and packed for engineers who cannot afford a second trip to the parts room.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The PDB-02 sits at the heart of the S4C+ power chain. When it fails, the controller typically throws one or more of the following fault codes before going dark:

• Error 20001 / 20002 — DC bus undervoltage. The rectifier is no longer delivering regulated DC to the drive section. First suspect: PDB-02 capacitor bank or rectifier bridge failure.
• Error 20010 — Power supply fault. Check the 24V auxiliary rail on the PDB-02 output connector before condemning the board — a blown fuse on the distribution side can mimic a board failure.
• Error 38001 — Drive unit communication lost. If this appears immediately after a power event (surge, brownout), the PDB-02 is the first board to inspect.

Replacement procedure — field notes:

1. De-energize the controller cabinet and lock out / tag out per your site LOTO procedure. Verify zero energy with a multimeter on the DC bus rails — residual charge on the capacitor bank can persist for 3–5 minutes after shutdown.
2. Photograph the existing wiring harness routing before disconnecting. The PDB-02 has multiple connectors (X1–X6 on most revisions); incorrect reconnection is the leading cause of post-replacement faults.
3. Note the board revision label (REV A / B / C). The 3HNA023093-001 is the primary assembly number; cross-check against 3HAC0017328-1/01 if your unit shows the alternate label. Both are electrically identical for IRB2400/10 and IRB2400/16 variants.
4. There are no DIP switches or address jumpers on the PDB-02 itself — it is a passive power distribution board. No firmware flashing is required post-installation.
5. After installation, perform a cold boot and monitor the DC bus voltage on the teach pendant diagnostics screen. Nominal reading: 560–600V DC on a 400V AC supply. If the bus comes up clean, clear all faults and run a slow-speed axis jog test before returning to production.
6. If the bus voltage is correct but Error 38001 persists, the issue has migrated downstream to the drive unit — the PDB-02 replacement was still necessary but not sufficient. Proceed to inspect the DSQC 346 or equivalent drive board.

Reliability in Harsh Conditions

The ABB PDB-02 was engineered for continuous-duty industrial environments, not climate-controlled server rooms. The board’s conformal coating protects the PCB traces and solder joints against condensation cycles common in foundry and food-processing facilities. The rectifier bridge components are rated for ambient temperatures up to 55°C, with the thermal design accounting for the heat load generated inside a sealed S4C+ cabinet during sustained production cycles.

Vibration is the silent killer of rectifier boards in press-shop and stamping-line installations. The PDB-02’s through-hole component construction — rather than surface-mount — gives it superior mechanical bond strength under the 10–150 Hz vibration profiles typical of heavy press environments. Capacitor leads are clinched and wave-soldered, not just reflowed, which matters when the cabinet is bolted to a press bed that cycles 60 times per minute.

All units we ship — whether new OEM or tested refurbished — are inspected under load before packing. Refurbished units are recapped with industrial-grade capacitors rated at 105°C / 10,000-hour life, not the consumer-grade 85°C components that cause premature failures in hot cabinets. Each unit ships in an anti-static bag inside a foam-lined carton with desiccant. If it arrives damaged in transit, we replace it — no argument, no RMA delay.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. This matters when you are counting hours, not days.

• Order cutoff: Orders confirmed and paid before 14:00 CST ship same business day.
• DHL Express Worldwide: Xiamen → Europe: 3–5 business days. Xiamen → North America: 4–6 business days. Xiamen → Southeast Asia: 1–3 business days.
• FedEx International Priority: Available for time-critical shipments. Tracking number provided within 2 hours of dispatch.
• Customs documentation: We prepare the commercial invoice, packing list, and HS code declaration (HS 8537.10) for every shipment. For EU customers, we can provide EUR.1 or origin certificates on request to support duty preference claims.
• Dangerous goods: Not applicable — the PDB-02 ships as standard electronics cargo, no special handling surcharges.
• Bulk orders: For quantities of 3 or more units, contact us for consolidated freight options and volume pricing.

We have shipped to automotive plants in Germany, semiconductor fabs in Taiwan, food processing lines in Australia, and mining operations in Chile. The logistics process is the same every time: fast, documented, and tracked end-to-end.
