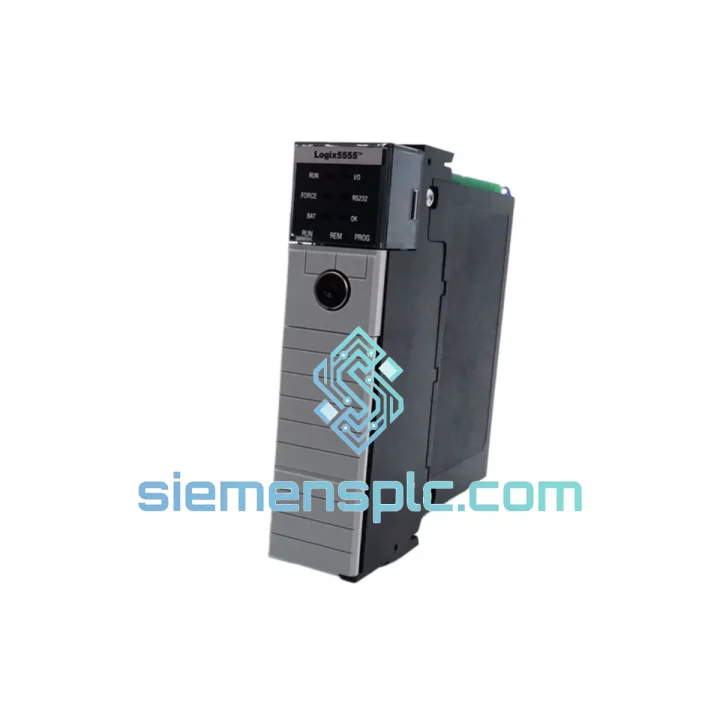

Allen-Bradley 1756-L55M13 ControlLogix Processor

Allen-Bradley 1756-L55M13: Stop the Clock on Your Downtime — Ship Today

Your line is down. Every minute costs real money — whether that’s $5,000/hr on an automotive transfer press or $20,000/hr on a continuous chemical reactor. The 1756-L55M13 Logix5555 processor is a legacy module, and when it fails, the clock starts immediately. We stock it. We ship it today. That’s the only thing that matters right now.

The Allen-Bradley 1756-L55M13 is a ControlLogix platform processor carrying 1.5 MB of user memory. It runs the Logix5555 execution engine — deterministic, IEC 61131-3 compliant, and deeply embedded in critical infrastructure across oil & gas, automotive, water treatment, and power generation. When this processor faults, there is no software workaround. You need the hardware. We have it, verified, boxed, and ready to move.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Fault Indicators on the 1756-L55M13:

• Solid Red FAULT LED: Non-recoverable major fault. The processor has halted execution. Pull the fault log via RSLogix 5000 before swapping — fault code 0x0004 (memory checksum failure) and 0x0020 (I/O connection timeout) are the two most common culprits on aging L55 hardware. If the fault code is 0x0004, the processor NVRAM has degraded. Replacement is the only fix.
• Flashing Red/Green STATUS LED: Processor is in Program mode but unable to transition to Run. Check if the keyswitch is physically stuck in PROG position. If keyswitch is in RUN and the LED still flashes, suspect firmware corruption — attempt a firmware flash via ControlFLASH before condemning the unit.
• No LED activity at all: Backplane power issue first. Measure 5 VDC and 24 VDC rails on the 1756-PA72/PB72 power supply. If rails are good and the processor shows no sign of life, the internal DC-DC converter on the processor board has likely failed. Replace the module.
• Intermittent I/O connection drops (Error Code 16#0203): On L55 processors, this is frequently caused by degraded SRAM causing the I/O scan task to miss its RPI window. Monitor the scan time in RSLogix 5000 Task Monitor. If the scan time is creeping up over weeks, the processor is failing progressively — plan a controlled replacement during the next maintenance window rather than waiting for a hard fault.

Step-by-Step Hot-Swap Replacement Procedure:

1. Back up the program: Go online with RSLogix 5000, upload the current program to your laptop, and save as an .ACD file. Verify the upload completed — do not skip this. If the processor is already faulted and you cannot go online, check if a backup exists on the 1784-CF64 CompactFlash card seated in the processor. The L55M13 supports program auto-load from CompactFlash on power-up.
2. Note the keyswitch position and firmware revision: Record the firmware revision from the Controller Properties dialog (or from the fault log header). The replacement unit must run the same major firmware revision to ensure program compatibility. Mismatched firmware is the #1 cause of failed replacements in the field.
3. Set the chassis to safe state: Place the keyswitch to PROG. Coordinate with operations to confirm all field devices are in a safe state. Do not rely on the program to hold outputs safe — the processor is being removed.
4. Remove the faulted processor: Press the top and bottom locking tabs simultaneously and slide the module straight out. The backplane remains powered — other modules in the chassis continue to operate normally.
5. Transfer the CompactFlash card: If a 1784-CF64 card is present, transfer it to the replacement processor. This card holds the program and will auto-load on first power-up if the Load Image on Memory Error parameter is set in the controller properties.
6. Insert the replacement 1756-L55M13: Slide in firmly until both locking tabs click. The processor will power up and begin its self-test sequence (approximately 30–45 seconds).
7. Flash firmware if required: If the replacement unit ships with a different firmware revision, use ControlFLASH to update before downloading the program. Attempting to download a program compiled under a different firmware major revision will result in a download error.
8. Download and verify: Download the saved .ACD file, transition to Run mode, and verify all I/O connections establish within the expected RPI timeframe. Check the Task Monitor for scan time anomalies in the first 10 minutes of operation.

Reliability in Harsh Conditions

The 1756-L55M13 was engineered for environments that would destroy consumer-grade electronics. The ControlLogix chassis design isolates the processor board from direct airflow contamination using a sealed backplane connector interface, and the module’s conformal-coated PCB provides resistance against humidity ingress and condensation — a critical factor in coastal industrial facilities and tropical climates where relative humidity regularly exceeds 80%.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal, 5–500 Hz, 2g) and IEC 60068-2-27 (shock, 15g, 11 ms half-sine). In practice, this means the module survives continuous operation adjacent to large reciprocating compressors, stamping presses, and heavy conveyor drives without connector fatigue or solder joint cracking — failure modes that plague lower-spec hardware in the same environments.

Thermal performance is validated across the full 0–60 °C operating range with no derating. The processor’s internal thermal management relies on passive conduction through the chassis backplane rather than active cooling fans, eliminating the single most common mechanical failure point in industrial electronics. Units deployed in ambient temperatures up to 55 °C in Middle Eastern petrochemical facilities have demonstrated multi-year MTBF consistent with Rockwell Automation’s published reliability data.

For FM Class I Division 2 rated installations — common in oil & gas wellhead and pipeline applications — the 1756-L55M13 carries the necessary approvals for Groups A, B, C, and D hazardous locations, allowing deployment in areas where flammable gases or vapors may be present under abnormal conditions.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international cargo gateway with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. Here is exactly how your order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The unit is pulled from stock, passes final pre-ship inspection, is photographed, packed in anti-static shielding with foam insert, and handed to the carrier the same afternoon.
• DHL Express Worldwide: Xiamen → most major industrial hubs in Southeast Asia, Middle East, and Europe in 2–4 business days. Xiamen → North America in 3–5 business days. Real-time tracking from pickup to delivery.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage. Transit times are comparable to DHL.
• Export documentation: Commercial invoice, packing list, and country-of-origin declaration are prepared for every shipment in compliance with destination customs requirements. HS Code 8537.10 is applied for customs classification. We handle all export formalities — you receive a clean AWB and tracking number.
• Bulk orders: For quantities of 5 units or more, air freight consolidation via Xiamen Gaoqi International Airport cargo terminal is available, reducing per-unit freight cost significantly while maintaining 3–5 day transit times to most destinations.

We understand that when you are ordering an emergency replacement processor, you cannot afford a customs hold or a documentation error. Every shipment we prepare is reviewed by our export compliance team before handover to the carrier.
