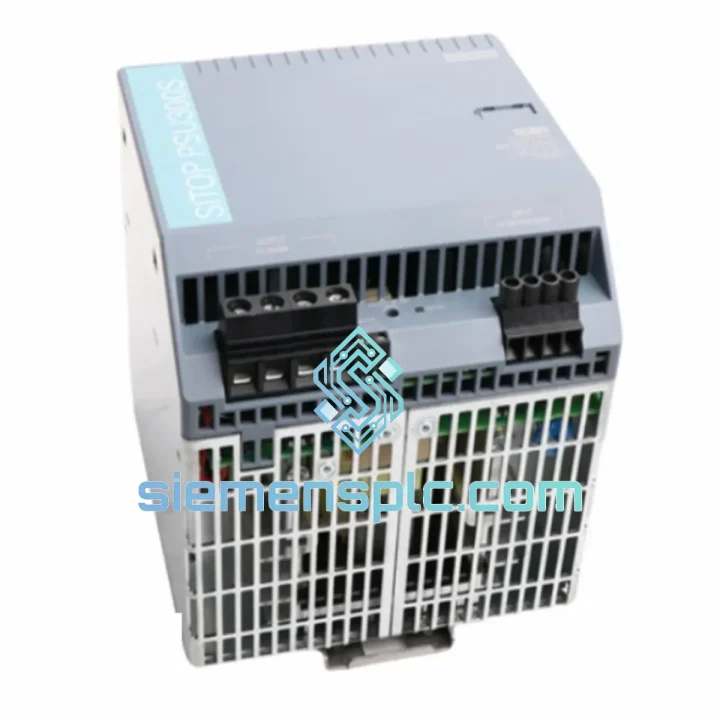

Siemens 6EP1437-2BA20 Industrial Power Supply – SITOP PSU300S

Siemens 6EP1437-2BA20 SITOP PSU300S — 960 W Three-Phase Regulated DC Power Supply for High-Current Industrial Bus Architectures

The 6EP1437-2BA20 occupies a well-defined position in the SITOP PSU300S platform: it converts a three-phase 400–500 V AC supply into a tightly regulated 24 V DC / 40 A output, delivering 960 W of continuous DC power to the 24 V bus of large-format control panels. Its role in the control loop is not passive. The unit actively monitors output voltage, load current, and thermal state, feeding a floating DC OK relay signal directly into the PLC’s digital input layer. This closed-loop diagnostic link means the power supply participates in the system’s fault-detection chain rather than operating as a silent background component. In redundant PSU configurations — common in PCS 7 DCS cabinets and safety-rated SIL 2 panels — the 6EP1437-2BA20 supports parallel operation via SITOP diode decoupling modules, enabling N+1 architectures without external load-sharing circuitry.

The three-phase input topology is a deliberate design choice for high-power industrial supplies. By distributing load across three phases, input current per phase drops to ≤ 4.5 A at full 40 A output — a figure that simplifies upstream fusing, reduces conductor cross-section requirements, and eliminates the neutral conductor entirely (L1/L2/L3 + PE, no N required). This wiring simplification is operationally significant in large panel builds where conductor routing and terminal density are constrained.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6EP1437-2BA20 implements a three-stage switched-mode conversion chain, each stage serving a distinct electrical function:

Stage 1 — EMC Input Filter and Soft-Start Network: A multi-stage LC filter at the AC input attenuates conducted emissions back onto the plant network, maintaining compliance with EN 61000-6-4 Class A without external line reactors. A thermistor-based soft-start circuit limits inrush current to below 30 A peak during cold-start, protecting upstream MCBs and preventing nuisance tripping on shared distribution boards.

Stage 2 — Active Power Factor Correction (PFC) Boost Stage: The PFC stage operates as a continuous-conduction-mode boost converter, shaping the three-phase rectified input into a regulated ~400 V DC intermediate bus. The control loop forces input current to track the rectified AC voltage waveform, achieving λ ≥ 0.99. This near-unity power factor eliminates the reactive current component that would otherwise load the plant transformer and cause harmonic distortion on the distribution network. Compliance with IEC 61000-3-2 Class A is achieved without additional harmonic filters.

Stage 3 — LLC Resonant DC/DC Converter: The isolated DC/DC stage uses an LLC resonant topology operating at high switching frequency (typically 100–300 kHz range). Resonant operation allows zero-voltage switching (ZVS) on the primary MOSFETs and zero-current switching (ZCS) on the secondary rectifier diodes, minimizing switching losses and contributing to the ≥ 93 % efficiency figure. The high-frequency transformer provides galvanic isolation between the 400 V intermediate bus and the 24 V output rail. Output voltage regulation is achieved via frequency modulation of the resonant tank, maintaining ± 1 % regulation across the full 0–40 A load range and 400–500 V input range simultaneously.

EMC Design Architecture: Beyond the input filter, the PCB layout employs separated ground planes for the primary (high-voltage) and secondary (24 V) domains, with a single-point chassis ground connection to prevent ground loop currents. The DC OK relay output is fully floating — no common reference with the 24 V output — allowing it to interface with PLC digital inputs operating at different reference potentials without introducing ground loops into the control system.

Thermal Management: The unit uses a forced-convection cooling path with an internal fan drawing air from the bottom and exhausting from the top, aligned with standard DIN rail panel airflow conventions. Above 60 °C ambient, the control firmware linearly reduces the maximum output current at −4 A/°C to maintain junction temperatures within safe operating limits, preventing thermal runaway without requiring external thermal protection devices.

System Integration Benefits

• Deterministic DC OK signaling: The floating relay contact closes within 20 ms of output voltage reaching 90 % of set point, providing a hardware-level “power good” signal that PLC CPUs can use to sequence startup routines and inhibit I/O scanning until the bus is stable.
• Parallel redundancy without external modules: Two or more 6EP1437-2BA20 units can be paralleled using SITOP diode decoupling modules (e.g., 6EP1961-2BA11), enabling N+1 redundancy configurations. If one PSU fails, the remaining unit assumes full load without interruption to the 24 V bus.
• SITOP UPS compatibility: The 24 V output interfaces directly with SITOP UPS1600 (6EP4134-3AB00-0AY0) and UPS500S series modules, enabling battery-backed ride-through for controlled shutdown sequences during mains failure.
• Reduced panel wiring complexity: Three-phase 3-wire input (no neutral) simplifies terminal block layout and reduces conductor count in the incoming supply section of the panel.
• Harmonic-clean plant network: Active PFC at λ ≥ 0.99 eliminates the need for detuned harmonic filters on the upstream transformer secondary, reducing infrastructure cost in facilities with multiple high-power PSUs.
• Wide input voltage tolerance: The 400–500 V AC input range covers European (400 V), Chinese industrial (380 V with tolerance margin), and Middle Eastern (415 V) grid standards under a single part number, eliminating regional SKU proliferation in global machine builds.
• Enclosure thermal budget reduction: ≥ 93 % efficiency at 960 W rated output means ≤ 67 W of heat dissipation at full load — approximately 30 % less than a comparable 85 %-efficient supply. This directly reduces the required enclosure cooling capacity and extends the service life of adjacent components operating at lower ambient temperatures.
• Diagnostic transparency via SIMATIC integration: The DC OK relay wired to a SIMATIC DI channel enables the PLC program to log PSU status transitions with millisecond timestamp resolution, supporting predictive maintenance workflows and IEC 62443-compliant audit trails for critical infrastructure panels.
• Flexible mounting geometry: DIN rail and screw-mount compatibility allows the unit to be positioned horizontally or vertically within the panel, accommodating constrained enclosure geometries without mechanical adapters.
• Drop-in replacement for 6EP1437-2BA10: Identical form factor and terminal assignment to the predecessor model; no panel modification or wiring change required during upgrade, reducing scheduled maintenance downtime.

Quality Assurance & Global Logistics

Every 6EP1437-2BA20 unit dispatched from our Xiamen facility is a genuine Siemens-manufactured component carrying intact factory labels, date codes, and serial numbers traceable through Siemens Industry Online Support. Units are sourced through verified industrial distribution channels and undergo incoming inspection — visual label verification, DataMatrix code authentication, and functional power-on test — before entering our bonded warehouse stock.

Packaging is maintained in original Siemens retail carton or equivalent ESD-safe foam-insert packaging. The Siemens product datasheet and EU Declaration of Conformity are available on request for regulatory compliance documentation.

Logistics from Xiamen, China: In-stock units are dispatched within 1–2 business days via DHL Express, FedEx International Priority, or SF International, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Each shipment includes a commercial invoice, packing list, and HS code 8504.40 declaration. Certificate of Origin (Form E / CO) is available for destinations eligible under applicable free trade agreements. For urgent project requirements, same-day dispatch is available on confirmed orders placed before 14:00 CST.

A 12-month warranty against manufacturing defects is provided on all units. Dead-on-arrival (DOA) replacements are processed within 7 business days of confirmed fault verification. Technical pre-sales support — including application sizing, redundancy configuration review, and compatibility verification with existing SIMATIC or third-party PLC architectures — is provided at no charge by our engineering team.
