Siemens 6EP1437-3BA10 Industrial Power Supply – SITOP Modular

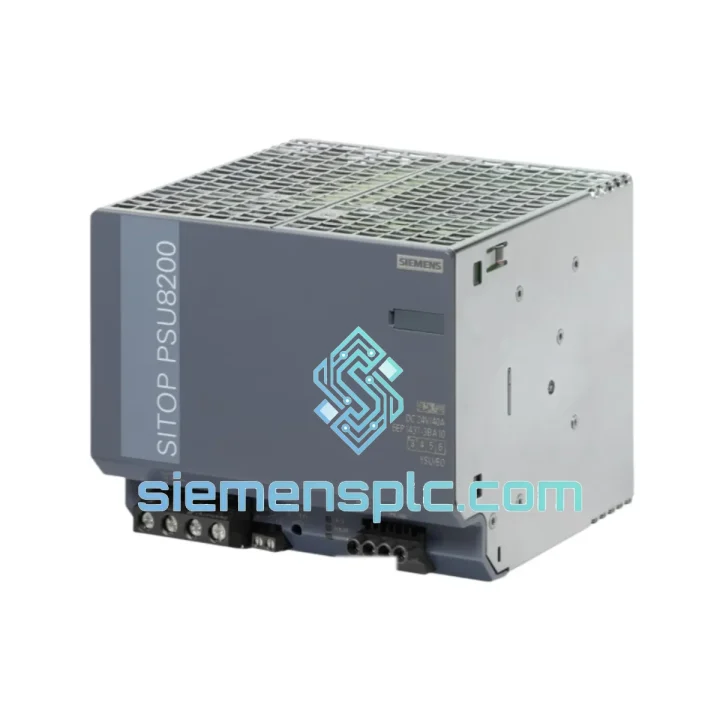

Siemens 6EP1437-3BA10 — 40 A / 24 VDC Three-Phase SITOP Modular Power Supply for High-Demand Control Architectures

The Siemens 6EP1437-3BA10 is a three-phase input, 24 VDC / 40 A stabilized power supply belonging to the SITOP Modular platform — Siemens’ scalable, DIN-rail-mounted power conditioning family designed for continuous-duty industrial environments. At 960 W rated output, this unit occupies the upper tier of the SITOP Modular current range and is specified for control cabinets where aggregate 24 VDC load — spanning PLC backplanes, distributed I/O stations, safety relays, solenoid valve manifolds, and HMI panels — exceeds the capacity of standard 20 A supplies.

In a typical SIMATIC S7-400 or S7-1500 installation, the 24 VDC bus must sustain both steady-state load current and transient inrush from actuator coils and motor starters. The 6EP1437-3BA10 addresses this with a wide-range three-phase input (3 AC 400–500 V, 47–63 Hz), active power factor correction, and an output characteristic that maintains regulation within ±1% across the full 0–40 A load range. The DC OK relay contact — a volt-free changeover output — provides a hardware-level signal to the PLC’s digital input or safety controller, enabling deterministic fault response without polling overhead.

The SITOP Modular architecture is explicitly designed for system expansion. The 6EP1437-3BA10 connects directly to SITOP buffer modules (e.g., 6EP4134-0GB00-0AY0) for bridging mains interruptions up to several seconds, redundancy modules (e.g., 6EP4295-0GB00-0AY0) for N+1 parallel operation with automatic load sharing, and selectivity modules (e.g., 6EP4196-0GB00-0AY0) for branch-level overcurrent protection without tripping the main supply. This modular topology eliminates the need for external UPS hardware in many applications and reduces panel footprint compared to discrete PSU-plus-buffer assemblies.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6EP1437-3BA10 employs a three-stage power conversion topology: an input EMC filter stage, an active PFC boost converter, and a phase-shifted full-bridge DC-DC converter with synchronous rectification. This architecture is significant for several engineering reasons.

Active PFC Stage: The boost converter preceding the isolation stage draws near-sinusoidal current from the three-phase mains, achieving a power factor λ > 0.95. This reduces reactive current demand on the facility transformer and minimizes harmonic injection into the plant distribution network — a compliance requirement under EN 61000-3-2 for equipment above 75 W. In installations with multiple PSUs on a common bus, the aggregate harmonic reduction is substantial.

Phase-Shifted Full-Bridge Topology: The isolated DC-DC stage uses zero-voltage switching (ZVS) on the primary-side MOSFETs, achieved by exploiting transformer leakage inductance. ZVS eliminates capacitive switching losses at turn-on, allowing the converter to operate at elevated switching frequencies (typically 70–120 kHz) without proportional increase in switching losses. Higher frequency reduces the physical size of the transformer and output filter inductors, contributing to the unit’s compact form factor relative to its 960 W rating.

EMC Design: The input filter incorporates common-mode chokes and X/Y capacitors rated to suppress conducted emissions per EN 55011 Class A. The enclosure is a grounded steel chassis with controlled apertures, providing shielding effectiveness against radiated emissions. In environments with variable-frequency drives (VFDs) or arc welding equipment — common in automotive body shops — the 6EP1437-3BA10’s immunity to conducted and radiated disturbances is validated per IEC 61000-4-4 (EFT/Burst, 2 kV) and IEC 61000-4-5 (Surge, 1 kV/2 kV).

Output Impedance and Transient Response: The closed-loop voltage regulation maintains output within ±1% under step load changes from 10% to 100% of rated current. The output capacitor bank is sized to limit voltage undershoot to < 5% during a 20 A load step, with recovery within 1 ms. This characteristic is critical for PLC backplanes where simultaneous module initialization can draw transient currents several times the steady-state value.

Thermal Management: Forced-air cooling via an internal fan maintains junction temperatures within safe limits at full load up to +60 °C ambient. Above +60 °C, a linear derating curve reduces maximum output current to 0 A at +70 °C. The fan speed is thermally controlled, reducing acoustic noise and mechanical wear during partial-load operation — relevant in control rooms where noise levels are regulated.

System Integration Benefits

• Deterministic DC OK signaling: The volt-free relay contact changes state within 20 ms of output voltage falling below the threshold (~21 V), providing a hardware interrupt to the safety PLC or DCS controller without software polling latency.
• SITOP Modular bus compatibility: The unit’s output terminals are mechanically and electrically compatible with SITOP buffer and redundancy modules, enabling system expansion without rewiring the main 24 VDC bus.
• N+1 redundancy via redundancy module: Two 6EP1437-3BA10 units connected through a SITOP redundancy module share load equally in normal operation; on failure of one unit, the other assumes full load within one switching cycle (< 20 µs), maintaining uninterrupted 24 VDC supply to the control system.
• Branch protection via selectivity module: SITOP selectivity modules connected downstream provide electronic circuit-breaker function for individual load branches, isolating faulted branches without tripping the main PSU — preserving availability of unaffected subsystems.
• Wide input voltage tolerance: The –15% / +10% input voltage tolerance accommodates mains fluctuations common in industrial facilities with heavy motor loads, eliminating nuisance trips during motor starting transients.
• Diagnostic transparency: The front-panel LED (DC OK) provides immediate visual status for maintenance personnel during cabinet inspection, reducing mean time to diagnose (MTTD) during fault-finding.
• SIMATIC TIA Portal integration: When the DC OK contact is wired to a SIMATIC digital input module, the PLC program can log PSU status events with millisecond-resolution timestamps, supporting root-cause analysis of process upsets correlated with power events.
• Reduced panel wiring complexity: DIN rail mounting with plug-in screw terminals (up to 16 mm² cross-section on output) and a standardized footprint simplifies panel layout, reduces wiring errors, and accelerates commissioning compared to custom-built PSU assemblies.
• Long-term spare parts availability: As a current-production SITOP Modular component, the 6EP1437-3BA10 benefits from Siemens’ published product lifecycle commitments, reducing obsolescence risk for long-lifecycle plant assets.
• Compliance with machinery directive: CE marking per Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU simplifies the CE declaration of conformity process for OEM machine builders incorporating this PSU into their equipment.

Quality Assurance & Global Logistics

Every Siemens 6EP1437-3BA10 unit dispatched from our Xiamen, China facility is a genuine Siemens-manufactured component sourced through verified supply channels. Our procurement process excludes gray-market and refurbished stock; each unit carries an intact Siemens holographic label, traceable date code, and original factory packaging.

Incoming Inspection Protocol: On receipt, units undergo label authentication (part number, revision index, country of manufacture), visual inspection for transit damage, and a powered functional test verifying output voltage regulation and DC OK relay operation before entering bonded stock.

Packaging for Export: Units are packed in anti-static polyethylene bags with silica gel desiccant, placed in foam-lined cartons rated for international air and sea freight. Export documentation — commercial invoice, packing list, certificate of origin, and where required, ECCN classification — is prepared by our in-house trade compliance team.

Shipping Options from Xiamen: DHL Express (3–5 business days to Europe/North America), FedEx International Priority, UPS Worldwide Express, and sea freight LCL/FCL for bulk orders. We maintain accounts with all major carriers and select the optimal routing based on destination, urgency, and declared value. Tracking numbers are provided within 24 hours of dispatch.

12-Month Warranty: All units carry a 12-month warranty from the date of shipment. Warranty claims are processed with replacement dispatch within 5 business days of confirmed fault verification. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond specified input range, or unauthorized modification.
