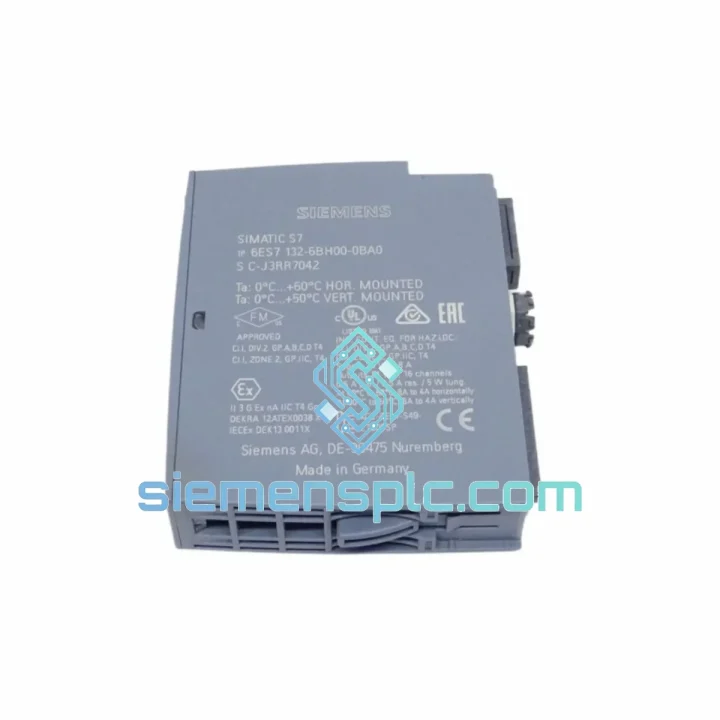

Siemens 6ES7132-6BH00-0BA0 Digital Output Module

6ES7132-6BH00-0BA0 — Stop the Bleeding: Every Minute of Downtime Costs You Money

Your ET 200SP station just dropped a channel fault. The line is stopped. Maintenance is on the phone. You already know the module — Siemens 6ES7132-6BH00-0BA0, the 16-channel 24 VDC digital output card that drives your solenoids, starters, and indicators. The question isn’t what failed. The question is how fast you can get a replacement on the rail and the line back up.

We stock the 6ES7132-6BH00-0BA0 in Xiamen, China. Orders confirmed before 18:00 CST ship same day via DHL Express. Most destinations in Southeast Asia receive within 48 hours. Europe and North America within 72–96 hours. No waiting on factory lead times. No minimum order quantity. One piece ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on ET 200SP stations teach you the same lessons over and over. Here is what actually matters when you are swapping a 6ES7132-6BH00-0BA0 under pressure:

Common Fault Codes You Will See Before Failure

• 0x0200 / Short circuit on output channel: One or more channels show red LED. The module has electronically tripped that channel. Check the field wiring for a shorted solenoid coil or a pinched cable before condemning the module itself. If the fault clears after disconnecting the load, the module is fine — the actuator is not.
• 0x0201 / Wire break (load voltage missing): The 24 V load supply to the BaseUnit terminal is absent or below threshold. Check the L+ and M terminals on the BU before pulling the module.
• 0x0E00 / Module removed or not responding: The backplane bus has lost communication. Reseat the module firmly — the ET 200SP connector requires a positive click. If the fault persists after reseating, the module or the BaseUnit backplane contact is damaged.
• Intermittent output chatter: Usually caused by a failing load-side power supply with excessive ripple, not the module. Measure 24 V supply ripple under load before ordering a replacement.

Replacement Procedure — Step by Step

1. Place the CPU in STOP mode or isolate the ET 200SP station from the PROFINET ring if hot-swap is not configured.
2. Switch off the 24 V load supply feeding the BaseUnit. Do not rely on the module’s electronic protection alone — physically de-energize the load circuit.
3. Press the orange release lever on the top of the module and pull straight out. The module slides off the BaseUnit without tools.
4. Inspect the BaseUnit gold contacts for corrosion or mechanical damage. A damaged BU will kill a new module within hours.
5. Slide the replacement 6ES7132-6BH00-0BA0 onto the BaseUnit until you hear the latch click. No address switches, no DIP settings — the ET 200SP uses automatic slot addressing via the IM interface module. The new module inherits the slot address automatically.
6. Restore the 24 V load supply, then set the CPU back to RUN. The IM will detect the new module, load the stored parameter set, and the station will come back online. No TIA Portal download is required for a like-for-like swap.
7. Verify all 16 channel LEDs respond correctly to your test outputs. Check the diagnostics buffer in TIA Portal for any residual faults.

Firmware Note: The 6ES7132-6BH00-0BA0 hardware revision ES1 and later are compatible with TIA Portal V13 SP1 and above. If your project was created in an older version, verify the HSP (Hardware Support Package) is installed before going online. Mismatched HSP versions will cause the module to appear as “unknown hardware” in the device view.

BaseUnit Color Matters: Light-colored BU (6ES7193-6BP00-0BA0) allows load voltage to pass through to the next slot. Dark-colored BU (6ES7193-6BP00-0DA0) acts as a potential separator. Swapping BU colors changes your load circuit topology — confirm before ordering a BaseUnit replacement alongside the module.

Reliability in Harsh Conditions

The 6ES7132-6BH00-0BA0 was not designed for a climate-controlled server room. It was built for the plant floor — and it shows.

The module’s conformal-coated PCB resists condensation and airborne contaminants common in food processing, chemical dosing, and coastal manufacturing environments. Operating humidity tolerance extends to 95% non-condensing, which covers the majority of tropical and subtropical plant conditions without additional enclosure derating.

Vibration resistance meets IEC 61131-2 requirements: 5–8.4 Hz at 3.5 mm amplitude, 8.4–150 Hz at 1 g. In practice, this means the module survives direct mounting on press frames, compressor skids, and mobile equipment where lesser I/O cards develop intermittent contact faults within months.

Thermal performance is equally robust. The module operates continuously at 60 °C ambient without derating, and the electronic short-circuit protection prevents thermal runaway from a shorted output from propagating to adjacent channels or the backplane bus. In high-ambient installations — foundries, glass plants, outdoor enclosures in summer — this self-protection has saved entire ET 200SP stations from cascading failure.

The compact 15 mm pitch means less surface area exposed to vibration-induced connector fatigue compared to older 25 mm or 40 mm pitch I/O systems. Fewer mechanical stress points translate directly to longer mean time between failures in high-cycle applications like stamping lines and injection molding machines.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily DHL and FedEx consolidation flights.

Standard Express Delivery Timeline (from order confirmation):

• Southeast Asia (SG, MY, TH, VN, ID): 1–2 business days via DHL Express
• East Asia (JP, KR, TW, HK): 1–2 business days via FedEx International Priority
• South Asia (IN, PK, BD): 2–3 business days via DHL Express
• Middle East (AE, SA, QA, KW): 2–3 business days via FedEx
• Europe (DE, FR, NL, PL, IT, ES): 3–4 business days via DHL Express Worldwide
• North America (US, CA, MX): 3–5 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice with accurate HS code classification (HS 8537.10), a packing list, and a certificate of origin where required for import duty reduction under applicable FTAs. For customers in the EU, we provide the necessary documentation for EORI clearance. For US imports, we handle HTS classification and can provide a formal CBP entry summary upon request.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email. For urgent shipments, our logistics team monitors the consignment through customs clearance and proactively contacts the carrier if delays are detected. We have handled emergency shipments to active shutdown sites in Germany, Australia, and the United States — we understand that a tracking number sitting in customs is not an acceptable answer when a line is down.

For pallet quantities or sea freight consolidation, contact us directly for a freight quote. Sea freight from Xiamen to Rotterdam typically runs 28–32 days; to Los Angeles, 14–18 days.

Contact Information

For urgent inquiries, stock confirmation, or bulk pricing — reach us directly. We respond to emergency requests within 30 minutes during business hours (08:00–20:00 CST, Monday–Saturday).

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
