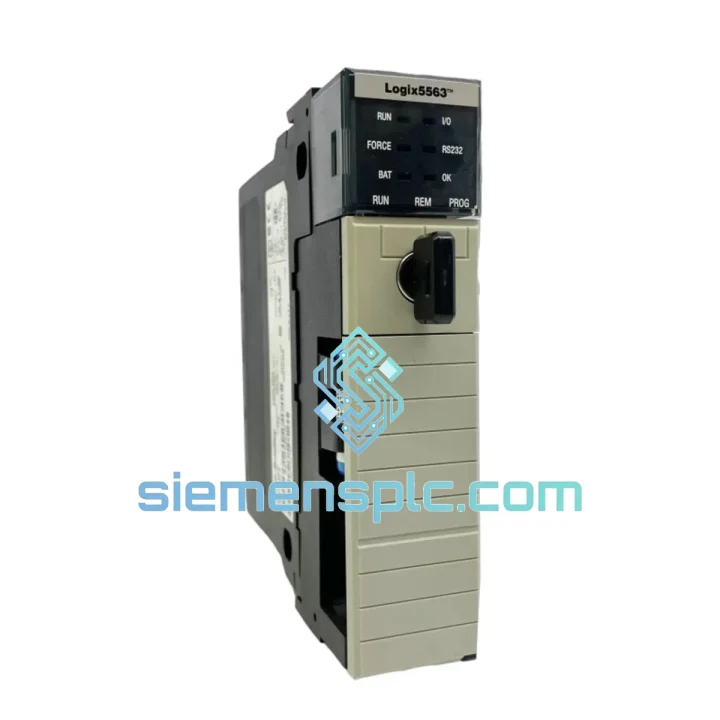

Allen-Bradley 1756-L63/A PLC Processor – ControlLogix Logix5563

Allen-Bradley 1756-L63/A: 8 MB Logix5563 PAC Processor in the ControlLogix 1756 Chassis Architecture

The 1756-L63/A is a mid-to-upper-tier programmable automation controller (PAC) within Rockwell Automation’s ControlLogix 1756 platform. Occupying a single slot in any 1756-Axxx chassis, this processor delivers 8 MB of user memory — sufficient to sustain large tag databases, concurrent multitasking programs, and coordinated motion execution without memory partitioning constraints. Its role in a control loop is that of the primary execution engine: it arbitrates I/O scan cycles, resolves task priority conflicts, manages motion axis updates, and maintains deterministic peer communication across EtherNet/IP and ControlNet network segments.

Within the Logix5563 family, the 1756-L63/A occupies the inflection point between the 4 MB 1756-L62 and the 16 MB 1756-L64. For the majority of mid-complexity process cells — those running 200–600 PID loops, multi-axis servo coordination, and concurrent HMI tag polling — 8 MB provides adequate headroom without the cost premium of higher-memory variants. Series A hardware supports firmware up to v20.054, which defines its compatibility envelope with Studio 5000 Logix Designer project files.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-L63/A executes a preemptive, priority-based multitasking kernel. The continuous task runs at the lowest priority and fills available CPU cycles; periodic tasks interrupt it at fixed intervals (configurable from 1 ms to 2,000 s); event tasks fire on I/O data change, motion axis events, or consumed tag updates. This three-tier scheduling model ensures that time-critical control loops — such as a 2 ms servo position update — are never delayed by lower-priority background logic, regardless of program scan load.

Memory architecture separates user program storage (SRAM, battery-backed) from I/O image memory (478 KB, refreshed each RPI cycle). The 8 MB user space is allocated across tag data, program code, and add-on instruction (AOI) libraries. Because ControlLogix uses a tag-based (not address-based) data model, the processor resolves symbolic tag references at compile time, eliminating runtime address lookup overhead and reducing scan jitter in large programs.

EMC design on the 1756-L63/A follows IEC 61000-4 series immunity requirements. The chassis backplane uses differential signaling at 200 Mbps with ground-plane isolation between the processor card and the chassis frame, attenuating common-mode noise injected through the power supply rail. The RS-232 serial port incorporates optical isolation on the signal lines, preventing ground loop currents from corrupting DF1 or DH-485 communication in installations where the PLC chassis and the connected device share different ground potentials — a common condition in motor control centers (MCCs) and variable-frequency drive (VFD) panels.

The backplane arbitration logic implements a token-passing protocol among all modules in the chassis. Each module is assigned a fixed backplane slot address; the processor polls modules in a deterministic sequence, ensuring that no single high-traffic communication module can monopolize backplane bandwidth. This architecture maintains consistent I/O update latency even when EtherNet/IP bridge modules (1756-EN2T) are handling high-volume explicit messaging traffic simultaneously with implicit I/O connections.

System Integration Benefits

• Deterministic I/O Scan Timing: RPI intervals are configurable per module from 1 ms to 750 ms, allowing engineers to assign tighter scan rates to fast analog loops and relaxed rates to status-only digital inputs — reducing backplane load without sacrificing control resolution.
• Unified Tag Database: All I/O, internal, and produced/consumed tags reside in a single namespace accessible by HMI, SCADA, historian, and peer controllers simultaneously via CIP implicit messaging, eliminating data mapping layers between control and supervisory systems.
• Integrated Motion Coordination: The Logix motion planner executes multi-axis coordinated moves (linear, circular, helical interpolation) directly within the processor task schedule, removing the need for a standalone motion controller and its associated inter-system communication latency.
• Transparent Online Diagnostics: Studio 5000 provides live tag monitoring, cross-reference browsing, and force/inhibit capabilities without interrupting program execution. Fault codes are logged to the processor’s major/minor fault table with timestamp and task context, enabling root-cause analysis without physical access to the panel.
• Produced/Consumed Tag Architecture: The processor can publish up to 100 produced tags to peer ControlLogix controllers over EtherNet/IP, enabling peer-to-peer data exchange without a dedicated communication module or PLC-to-PLC polling routine — reducing network overhead and programming complexity in multi-controller systems.
• Add-On Instruction (AOI) Library Support: Encapsulated control algorithms (PID variants, state machines, equipment phase logic) are stored as AOIs within the 8 MB user space, promoting code reuse across program instances and reducing validation effort in regulated manufacturing environments.
• Scalable Chassis Configuration: The 1756-L63/A operates in 4, 7, 10, 13, or 17-slot chassis without reconfiguration, allowing the same processor to serve a compact standalone panel or a large distributed I/O rack as application scope evolves.
• Redundancy-Ready Architecture: When paired with a 1756-RM2 redundancy module and a mirrored chassis, the 1756-L63/A participates in a hot-standby redundant controller pair. Switchover time is typically under 30 ms, meeting the uptime requirements of continuous process applications where unplanned shutdowns carry significant production cost.

Quality Assurance & Global Logistics

Each 1756-L63/A unit dispatched from our Xiamen, China facility undergoes a structured four-stage verification protocol before packaging:

• Physical Inspection: Housing, label, backplane connector pins, and battery compartment examined against Rockwell Automation cosmetic and mechanical standards. Units with cracked housings, bent pins, or illegible catalog labels are rejected.
• Revision & Firmware Audit: Series letter, catalog suffix, and installed firmware version recorded. Disclosed in the product listing or provided in writing upon request prior to order confirmation.
• Functional Power-On Verification: Module seated in a 1756 test chassis with a 1756-PA72 power supply. Processor brought to RUN mode with a validated test program in RSLogix 5000. Backplane communication with a 1756-EN2T module confirmed. Pass/fail result logged per unit serial number.
• ESD-Safe Packaging: Unit sealed in a conductive anti-static bag, cushioned with closed-cell foam, and placed in a double-wall corrugated carton. Silica gel desiccant included for ocean freight and high-humidity transit routes.

Shipping is executed via DHL Express, FedEx International Priority, or freight forwarder per buyer specification. Transit time from Xiamen to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. A tracking number is issued within 24 hours of dispatch. Commercial invoice, packing list, and certificate of conformance (CoC) are provided as standard export documentation. HS code declaration and country-of-origin certificate available upon request for customs clearance purposes.
