Allen-Bradley 1794-IE4XOE2 Analog Combination Module – FLEX I/O

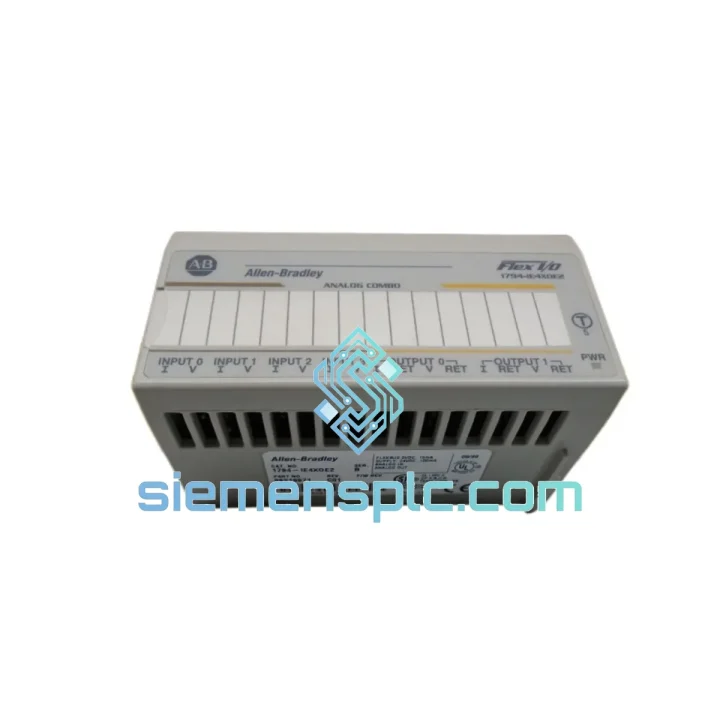

Allen-Bradley 1794-IE4XOE2: Distributed Analog I/O Combination Module for FLEX I/O Control Architectures

The 1794-IE4XOE2 is a compact analog combination module within Rockwell Automation’s FLEX I/O distributed I/O platform. It consolidates four analog input channels and two analog output channels into a single 23 mm-wide module body, enabling engineers to close both measurement and actuation loops from a single terminal base without occupying two separate module slots. This architecture is particularly relevant in distributed control cabinets where DIN-rail space is constrained and per-node wiring density must be minimized.

The module interfaces with the FLEX I/O backplane through a direct edge-connector, communicating with the network adapter — whether EtherNet/IP (1794-AENT), DeviceNet (1794-ADN), ControlNet (1794-ACN15), or PROFIBUS-DP (1794-APB) — via the adapter’s internal backplane bus. The controller reads input channel data and writes output channel data through the adapter’s I/O image table, with channel configuration (signal range, notch filter frequency, fault-mode behavior, program-mode output value) stored in the controller project and downloaded to the module at startup or on connection establishment.

Signal conditioning on the input side employs a successive-approximation ADC with a programmable digital filter. The filter’s notch frequency is selectable at 10 Hz, 50 Hz, or 60 Hz, allowing the engineer to suppress power-line interference appropriate to the installation region without external hardware. On the output side, a 12-bit DAC drives either a voltage buffer (≥ 1 kΩ load) or a current transmitter circuit (0–600 Ω compliance range), with the output holding its last commanded value or reverting to a configurable fault/program-mode preset upon loss of communication — a critical safety behavior in process-control applications.

Each input channel is independently configurable for signal range: 4–20 mA, 0–20 mA, 0–10 V DC, ±10 V DC, or 1–5 V DC. Current-mode inputs use an internal 250 Ω precision shunt resistor, eliminating the need for external burden resistors and reducing wiring termination count. Voltage-mode inputs present an input impedance exceeding 1 MΩ, ensuring negligible loading on high-impedance transmitters. Each output channel is independently configurable for 4–20 mA, 0–20 mA, 0–10 V DC, or ±10 V DC output, covering the full range of standard field actuator signal requirements.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-IE4XOE2 implements channel isolation at the field-to-backplane boundary using a transformer-coupled DC/DC converter and optocoupler signal path rated at 250 V AC continuous. This isolation topology prevents ground-loop currents — common in multi-drop 4–20 mA installations where field instruments share a common return conductor — from corrupting the ADC reference rail or introducing common-mode noise into the digital backplane.

The successive-approximation ADC architecture used on the input channels achieves a conversion cycle of under 5 ms across all four channels sequentially. The ADC reference is derived from an internal precision bandgap source, temperature-compensated to maintain ±0.1% accuracy across the 0–55 °C operating range without field calibration. The programmable notch filter operates as a sinc³ digital filter whose notch frequency is set to the local power-line frequency (50 Hz for European and Asian installations, 60 Hz for North American), attenuating induced interference by greater than 60 dB at the notch frequency.

On the output side, the 12-bit DAC drives a precision voltage-to-current converter for current-loop outputs. The current transmitter circuit maintains output accuracy within ±0.1% across the full 0–600 Ω compliance range, with an output ripple specification below 0.1 mA peak-to-peak — a parameter critical for valve positioners that interpret ripple as a control signal deviation. The voltage output buffer presents a low-impedance drive capable of sourcing or sinking current into loads ≥ 1 kΩ, with short-circuit protection limiting fault current to a safe level without damaging the DAC output stage.

The module’s EMC design follows IEC 61000-4 series test criteria. The PCB layout employs a split ground plane separating the analog signal ground from the digital logic ground, with a single-point star connection at the ADC/DAC reference node. Decoupling capacitors are placed within 2 mm of each IC power pin, and the backplane connector pins are filtered with ferrite beads to suppress high-frequency switching transients from the adapter’s internal DC/DC converter from coupling into the analog measurement circuitry.

Fault detection logic monitors each output channel for open-circuit conditions (current output with no load) and over-range input conditions. Detected faults are reported as status bits in the module’s input data table, accessible to the controller program for alarm annunciation or safe-state logic without requiring additional diagnostic hardware.

System Integration Benefits

• Single-slot analog loop closure: Four input channels and two output channels in one 23 mm module slot eliminate the need for a separate output module, reducing per-node hardware cost and freeing backplane slots for additional I/O types.
• Software-selectable signal ranges: All input and output ranges are configured in the controller project, not via hardware jumpers or DIP switches. Range changes require only a project download, with no physical access to the module or terminal base wiring.
• Deterministic scan time: The ≤ 5 ms channel scan time is fixed and independent of network load, providing a predictable analog data update rate for PID loop tuning calculations. Loop engineers can rely on this figure as a constant in their dead-time compensation models.
• Configurable fault and program-mode outputs: Each output channel can be independently configured to hold its last value, ramp to zero, or jump to a user-defined preset when the controller enters program mode or communication is lost. This behavior is essential for process safety in applications where an undefined output state could cause equipment damage or process upset.
• Integrated diagnostic data: Channel-level fault bits (open circuit, over-range, under-range, calibration fault) are mapped directly into the controller’s I/O image table. No additional diagnostic module or fieldbus segment is required to surface these conditions to the SCADA or HMI layer.
• Hot-swap module replacement: The FLEX I/O architecture supports module removal and insertion under power when the adapter is configured for hot-swap operation. Replacement of a failed 1794-IE4XOE2 does not require a system shutdown, reducing mean time to repair (MTTR) in continuous-process environments.
• Multi-network adapter compatibility: The same module operates identically behind EtherNet/IP, DeviceNet, ControlNet, or PROFIBUS-DP adapters. A plant standardizing on 1794-IE4XOE2 as its analog combination module can deploy it across heterogeneous network segments without maintaining separate module SKUs per network type.
• Studio 5000 Add-On Profile (AOP) support: The module’s AOP provides a structured parameter editor within the Logix Designer environment, with parameter range validation and tooltip documentation. Commissioning engineers configure all channel parameters through a graphical interface rather than manually entering raw configuration words, reducing configuration errors and accelerating startup.
• Scalable node architecture: Up to eight FLEX I/O modules per adapter node, with multiple adapter nodes per network segment. A single EtherNet/IP adapter node with eight 1794-IE4XOE2 modules provides 32 analog inputs and 16 analog outputs — sufficient for a mid-scale process skid — within a single DIN-rail section.
