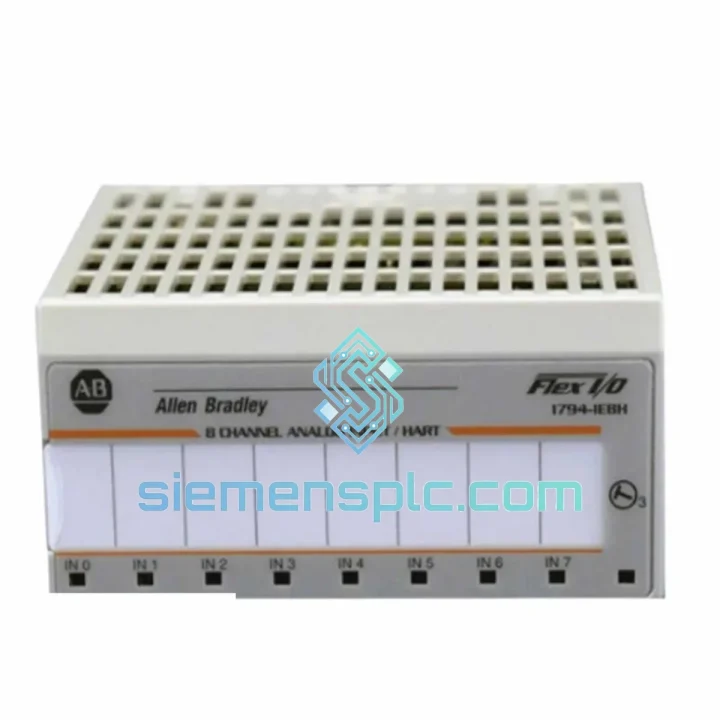

Allen-Bradley 1794-IE8H — 8-Channel High-Resolution Analog Input Module for FLEX I/O Distributed Control Architecture

The 1794-IE8H is a high-density analog input module within Rockwell Automation’s FLEX I/O platform, purpose-built for distributed signal acquisition in process-intensive and discrete manufacturing environments. Mounted on a compatible FLEX I/O terminal base, the module interfaces directly with ControlLogix, CompactLogix, and legacy PLC-5/SLC 500 systems through adapter modules such as the 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), or 1794-ADNK (DeviceNet). Its 23 mm form factor delivers 8 independently configurable analog channels — current and voltage — within a footprint that minimizes DIN-rail space without compromising signal fidelity.

At the core of the 1794-IE8H is a sigma-delta analog-to-digital conversion architecture operating at 16-bit resolution (65,536 discrete counts across full scale). Unlike successive-approximation ADC designs, sigma-delta conversion applies oversampling and digital decimation filtering, which inherently attenuates high-frequency noise components before the digital value is latched to the backplane. This characteristic makes the module particularly well-suited for environments with variable-frequency drive (VFD) interference, high-current bus noise, or proximity to switching power supplies — conditions common in petrochemical, water treatment, and heavy manufacturing facilities.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1794-IE8H employs a multiplexed sigma-delta ADC topology where each of the 8 channels is sampled sequentially through an analog multiplexer before entering the conversion stage. The sigma-delta modulator operates at a high oversampling ratio — typically 256× or greater relative to the Nyquist rate — producing a 1-bit bitstream that is subsequently processed by a digital sinc³ decimation filter. This filter architecture provides a first-null frequency at 1/update-rate, meaning that at the 50 Hz update setting, the filter null aligns precisely with 50 Hz mains interference — a deliberate design choice for European and Asian industrial installations where 50 Hz power-line coupling into long field cable runs is a persistent noise source.

Channel-to-backplane galvanic isolation is implemented via transformer-coupled DC/DC converters for power and optocoupler-based signal paths for data transfer. The 250 V AC continuous isolation rating ensures that ground potential differences between field instrumentation and the controller backplane — a common condition in large plant installations with distributed earthing — do not introduce common-mode error into the digitized signal or create ground loop currents that degrade measurement accuracy.

The 249 Ω precision shunt resistor used in current input mode is laser-trimmed to maintain the ±0.1% accuracy specification across the operating temperature range. In voltage input mode, the ≥10 MΩ input impedance prevents loading of high-impedance sources such as pH electrodes or thermocouple transmitters with high output impedance. The module’s internal watchdog timer monitors backplane communication health; if the adapter fails to poll the module within the configured RPI (Requested Packet Interval), the module transitions outputs to a configurable fault state — a deterministic fail-safe behavior that prevents stale analog data from propagating into active control loops.

EMC compliance is achieved through a combination of board-level filtering (ferrite beads on all field-side signal lines), a grounded metal housing that acts as a Faraday shield, and PCB layout practices that maintain physical separation between the high-impedance analog front-end and the digital backplane interface circuitry. The module meets EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/Burst), and EN 61000-4-6 (conducted RF immunity) without external filtering accessories.

System Integration Benefits

• Software-Only Channel Configuration: All 8 channels are configured exclusively through RSLogix 5000 / Studio 5000 module properties — signal range, engineering unit scaling, filter bandwidth, and alarm thresholds are set in software with no DIP switches, jumpers, or hardware modifications required. This eliminates configuration errors during field replacement and reduces commissioning time.
• Per-Channel Independent Configurability: Current and voltage input types can be mixed freely across the 8 channels on a single module. A single 1794-IE8H can simultaneously accept 4–20 mA transmitter signals on channels 1–4 and ±10 V encoder feedback on channels 5–8, reducing the module count in mixed-signal applications.
• Deterministic EtherNet/IP Data Delivery: When paired with the 1794-AENT adapter, the module participates in CIP Sync time-coordinated I/O, enabling timestamped analog data delivery with sub-millisecond jitter across the EtherNet/IP network — a prerequisite for motion-correlated process data logging and sequence-of-events (SOE) analysis.
• Integrated Channel Diagnostics: The module reports open-wire detection (for 4–20 mA loops), over-range and under-range conditions, and A/D conversion fault status as individual bits in the input data table. These diagnostic bits are directly addressable in ladder logic or structured text without requiring additional diagnostic function blocks.
• Hot-Swap Module Replacement: When installed on a 1794-TB3S terminal base with the side-mount locking mechanism, the 1794-IE8H supports live module replacement without de-energizing the terminal base or disconnecting field wiring. The adapter automatically re-establishes communication and restores the stored configuration to the replacement module within one RPI cycle.
• Scalable Distributed Architecture: Up to 8 FLEX I/O modules can be stacked on a single adapter, and multiple adapter nodes can be distributed across a plant floor on a single EtherNet/IP or ControlNet segment. This topology eliminates the need for centralized marshalling panels and reduces field cable lengths, lowering both installation cost and signal degradation risk.
• Studio 5000 Add-On Profile (AOP) Native Support: The 1794-IE8H ships with a pre-registered AOP in the Rockwell Software catalog. The AOP auto-populates the module’s I/O data structure, parameter definitions, and fault handling logic into the controller project — no manual EDS file import or custom data mapping is required.
• Alarm Limit Processing On-Module: High-high, high, low, and low-low alarm thresholds are configurable per channel and evaluated on the module itself. Alarm status bits are returned in the input data table each scan, offloading threshold comparison logic from the controller CPU and reducing ladder logic complexity in alarm-intensive applications.

Quality Assurance & Global Logistics

Every 1794-IE8H unit supplied through siemensplc.com undergoes a structured pre-shipment verification process. Visual inspection confirms label integrity, date code consistency, and PCB marking authenticity against known-good reference units. Functional power-on testing verifies backplane communication establishment, channel response across at least two input ranges, and diagnostic bit behavior under simulated fault conditions. Units are packed in ESD-safe anti-static bags with foam-lined cartons to prevent mechanical and electrostatic damage during transit.

Shipments originate from Xiamen, China — a major logistics hub with direct access to international express carriers including DHL, FedEx, and UPS, as well as sea freight consolidation services for bulk orders. Standard express delivery to destinations in Southeast Asia, the Middle East, Europe, and North America typically completes within 3–7 business days from dispatch. For time-critical plant shutdowns or emergency replacement scenarios, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Commercial invoice, packing list, and certificate of origin documentation are provided with every shipment to facilitate customs clearance. A 12-month operational warranty covers manufacturing defects and functional failure under normal operating conditions from the date of dispatch.
