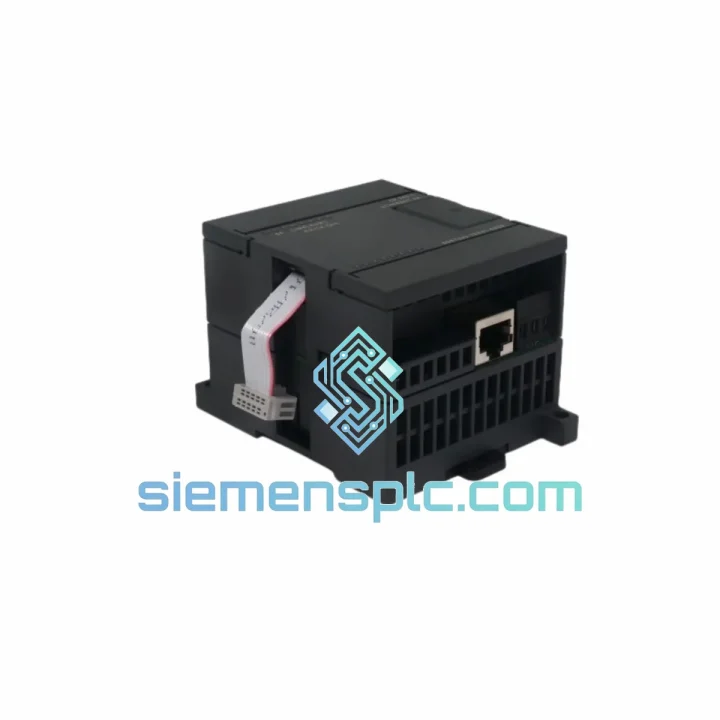

Siemens 6GK7243-1EX01-0XE0 Communications Processor – CP243-1

Siemens 6GK7243-1EX01-0XE0 CP243-1: Ethernet Gateway Architecture for SIMATIC S7-200 Control Loops

The CP243-1 occupies a structurally critical position in any S7-200-based control architecture: it is the sole hardware boundary between the deterministic 24 V DC expansion bus of the SIMATIC S7-200 and the variable-latency world of Industrial Ethernet. Without this module, the S7-200 CPU operates as an isolated island — capable of local I/O control but blind to plant-level supervisory systems, remote HMIs, and historian databases. The 6GK7243-1EX01-0XE0 resolves that isolation by implementing a full TCP/IP stack and S7 communication layer within a 71.2 × 80 × 62 mm DIN-rail form factor, drawing power exclusively from the CPU expansion bus at ≤ 1.5 W — no auxiliary 24 V feed required.

In a closed-loop control context, the CP243-1 does not participate in the scan cycle of the S7-200 CPU. Instead, it operates as an autonomous co-processor: it maintains its own Ethernet MAC address, manages up to 8 simultaneous TCP connections, and exchanges data with the CPU through a shared memory interface mapped into the S7-200 V-memory area. This architecture ensures that Ethernet communication latency — which can range from sub-millisecond on a lightly loaded switch to tens of milliseconds under congestion — never propagates into the PLC scan cycle. The CPU continues executing its ladder or FBD program at its configured scan rate regardless of Ethernet traffic conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CP243-1 implements a two-domain isolation architecture. The expansion bus side interfaces with the S7-200 CPU through a proprietary parallel data bus operating at 5 V DC logic levels. This bus carries both configuration data (written by STEP 7 Micro/WIN during commissioning) and runtime process data (exchanged via the Ethernet Wizard-generated subroutines in the user program). The Ethernet side operates at standard 10/100 Mbit/s with an integrated PHY and transformer-coupled RJ45 port, providing 1500 V AC galvanic isolation between the network medium and the module’s internal logic — a critical protection mechanism in environments where ground potential differences between cabinet sections can reach several volts.

The module’s internal processor manages the TCP/IP stack independently of the S7-200 CPU scan. Connection state machines for all 8 channels are maintained in the CP243-1’s own RAM. When a remote client initiates a connection, the CP243-1 completes the TCP three-way handshake autonomously and signals data availability to the S7-200 CPU through a status byte in the shared V-memory region. The CPU program reads this status byte during its normal scan and processes the received data — a polling model that keeps the CPU in full control of when Ethernet data is consumed, preventing asynchronous interrupts from disrupting time-critical control tasks.

EMC design on the CP243-1 follows Siemens’ standard industrial hardening methodology: the PCB uses a multi-layer stackup with dedicated ground planes to suppress common-mode noise, and the RJ45 port incorporates integrated magnetics with common-mode choke filtering rated to suppress burst transients per EN 61000-4-4 at ±2 kV. The module passes EN 61000-4-5 surge immunity at ±1 kV line-to-line and ±2 kV line-to-earth, making it suitable for installation in cabinets adjacent to variable-frequency drives and contactors without additional surge protection devices on the Ethernet port.

System Integration Benefits

• Scan-Cycle Isolation: Ethernet communication is handled by the CP243-1’s onboard processor; network latency variability does not affect the S7-200 CPU scan time, preserving deterministic I/O response for time-critical control loops.
• 8-Channel Concurrent Connectivity: Simultaneous connections to SCADA server, OPC DA/UA gateway, remote HMI panel, engineering workstation, and data historian are supported without connection multiplexing or session arbitration at the application layer.
• Protocol Interoperability: ISO-on-TCP (RFC 1006) transport enables S7 PUT/GET communication with S7-300, S7-400, and S7-1500 CPUs equipped with Ethernet CPs, allowing the S7-200 to participate in multi-tier Siemens automation architectures without protocol converters.
• Third-Party SCADA Compatibility: Raw TCP socket mode allows direct integration with non-Siemens SCADA platforms (Wonderware, iFIX, Ignition) and OPC servers (Kepware KEPServerEX, Matrikon) using the FETCH/WRITE service or custom TCP framing.
• Zero Additional Power Infrastructure: The module draws all operating power from the S7-200 5 V expansion bus, eliminating the need for a dedicated 24 V DC branch circuit, terminal block, and fuse — reducing panel BOM cost and wiring complexity.
• Diagnostic Transparency: LED indicators on the module front face provide real-time status for link state (LINK), data activity (RX/TX), and module fault (SF), enabling field technicians to diagnose connectivity issues without a laptop or network analyzer.
• Non-Disruptive IP Reconfiguration: IP address, subnet mask, and gateway parameters are stored in the CP243-1’s non-volatile flash memory and can be updated via STEP 7 Micro/WIN without modifying the S7-200 user program or interrupting the CPU’s operating mode.
• Extended S7-200 Service Life: Deploying the CP243-1 defers the capital expenditure of migrating to S7-1200 or S7-1500 by adding Ethernet connectivity to existing S7-200 installations, preserving the investment in validated ladder programs, I/O wiring, and operator training.
• Hazardous Location Approval: FM Class I Division 2 and ATEX Zone 2/22 certifications permit installation in areas where flammable gases or combustible dusts may be present under abnormal conditions — expanding deployment scope to oil & gas, chemical, and grain handling facilities.
• Auto-Negotiation Speed Matching: 10/100 Mbit/s auto-negotiation and auto-MDI/MDIX eliminate switch port configuration requirements and prevent duplex mismatch errors that cause intermittent packet loss in mixed-speed network segments.

Quality Assurance & Global Logistics

Every 6GK7243-1EX01-0XE0 unit dispatched from our Xiamen, China facility is sourced through verified Siemens industrial distribution channels. Authenticity is confirmed through holographic label inspection and serial number cross-reference against Siemens production records prior to listing. Before dispatch, each unit undergoes power-on functional verification — LED status confirmation, firmware version check, and expansion bus continuity test — to ensure the module arrives in fully operational condition.

Original Siemens anti-static packaging is retained throughout storage and transit. Tamper-evident sealing is applied at the point of dispatch. Each shipment includes the CE declaration of conformity and the product datasheet. A 12-month warranty against manufacturing defects is provided on all units, with expedited replacement processing available for production-critical downtime situations.

From Xiamen, we ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit times: 3–5 business days to Europe and North America; 2–4 business days to Southeast Asia and the Middle East. Export documentation — commercial invoice, packing list, and HS code 8537.10 classification — is prepared for all international shipments to facilitate customs clearance. Volume orders and blanket purchase agreements are accommodated with scheduled release shipments.
