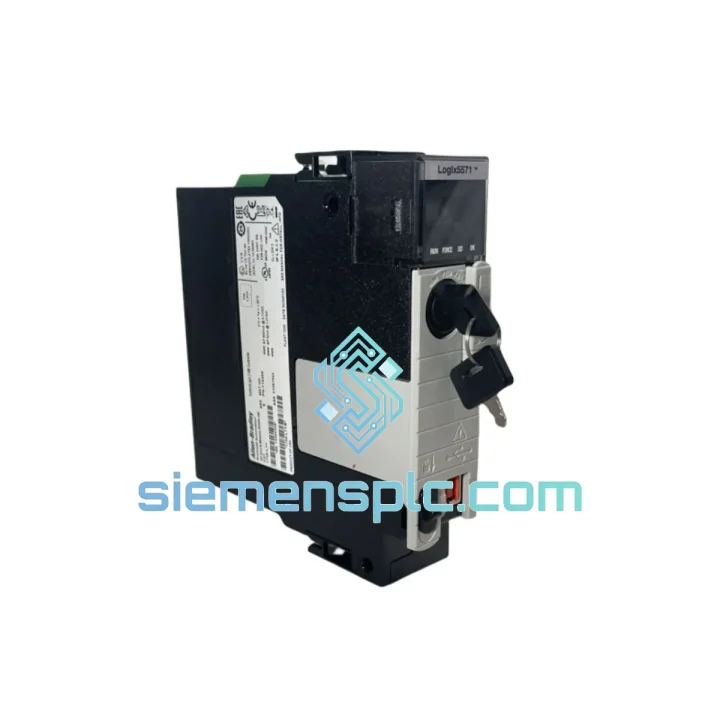

Allen-Bradley 1756-L71/B PLC Controller – ControlLogix 5570

Allen-Bradley 1756-L71/B ControlLogix 5570 CPU Module: Backplane Architecture and Control Loop Positioning

The 1756-L71/B occupies the processor slot of a ControlLogix chassis and serves as the deterministic execution engine for all tasks assigned to that chassis. Its role in a control loop is not limited to ladder scan execution — the module arbitrates backplane token passing, manages the I/O connection table, coordinates CIP Motion axis instances, and maintains the producer/consumer relationship with remote I/O adapters simultaneously. Understanding this multi-threaded execution model is essential for engineers sizing the controller against cycle time budgets in high-density I/O or multi-axis motion applications.

The Series B designation reflects a hardware revision that addressed specific capacitor aging characteristics identified in early Series A production runs. From a procurement standpoint, specifying /B is the correct choice for any new installation or like-for-like replacement where long service life is a design requirement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Token Architecture
The ControlLogix backplane operates on a scheduled token-passing protocol rather than a shared-bus arbitration model. The 1756-L71/B holds the backplane token for a deterministic window during each scan cycle, transferring I/O data to and from communication and I/O modules in a predictable sequence. This architecture eliminates the non-deterministic latency inherent in Ethernet-polled I/O systems and is the primary reason ControlLogix is specified for motion-critical and safety-adjacent applications.

Dual-Port Memory Architecture
The processor maintains separate address spaces for user program memory (2 MB) and I/O image memory (478 KB). This separation prevents runaway program logic from corrupting the I/O table — a hardware-enforced boundary that reduces the risk of uncontrolled output states during software faults. The I/O image is updated asynchronously relative to the ladder scan, with configurable RPI (Requested Packet Interval) values per connection, allowing engineers to tune bandwidth consumption against update rate requirements.

EMC Design and Isolation
The 1756-L71/B does not directly interface with field wiring — all field connections are made through discrete I/O modules that incorporate opto-isolation or transformer isolation at the field boundary. The CPU module itself is shielded within the ControlLogix chassis backplane, which provides a grounded Faraday enclosure around the processor board. Rockwell’s EMC compliance testing for the ControlLogix platform covers IEC 61000-4-2 (ESD), IEC 61000-4-3 (radiated immunity), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-6 (conducted immunity), making the platform suitable for installation in panels adjacent to variable frequency drives and high-current switching equipment.

Non-Volatile Memory and Battery Management
User program and configuration data are stored in battery-backed SRAM. The Series B revision uses a CR2032-compatible lithium cell with a rated shelf life exceeding 5 years under normal operating conditions. On power loss, the controller retains the full program image and retentive data tags. An SD card slot (1784-SD1 or 1784-SD2) provides a secondary non-volatile backup path, enabling automatic program load on first power-up — a feature used in spare-unit deployment strategies where pre-configured replacement modules are kept on-site.

Task Execution and Priority Arbitration
The 1756-L71/B supports 32 concurrent tasks with configurable priority levels. Event tasks execute at interrupt priority, preempting periodic and continuous tasks when triggered by I/O module events or motion axis status changes. This priority arbitration is handled in firmware without OS scheduling jitter, delivering sub-millisecond event response times that are not achievable on PC-based soft PLC platforms running standard operating systems.

System Integration Benefits

• Deterministic Multi-Task Execution: Up to 32 tasks with configurable periods from 0.1 ms to 2,000 s allow precise time-slicing of control functions. Motion, process, and safety logic can coexist in the same chassis without cross-contamination of scan timing.
• CIP Motion Integration: Native support for CIP Motion over EtherNet/IP eliminates the need for a dedicated motion controller in single-axis to mid-range multi-axis applications. Axis instances are managed directly in the Logix tag database, simplifying HMI and historian integration.
• Producer/Consumer I/O Model: Unlike polled I/O architectures, ControlLogix uses a published data model where I/O modules produce data at their configured RPI regardless of controller scan state. This decouples I/O update rate from program scan time, improving responsiveness in fast-process loops.
• Integrated Diagnostics: The controller maintains connection status, fault codes, and module health data in structured tag arrays accessible from any HMI or SCADA system via EtherNet/IP. Fault isolation to the module level is available without physical panel access.
• Redundancy Architecture: Paired with 1756-RM2/A and 1756-SYNCH modules, the 1756-L71/B supports hot-standby redundancy with bumpless transfer. Switchover time is typically under 50 ms, meeting the availability requirements of continuous process applications.
• Studio 5000 Ecosystem Depth: Full integration with Rockwell’s Add-On Instructions (AOI) library, FactoryTalk View SE/ME, AssetCentre version control, and Historian OPC-DA/UA connectivity. A single engineering environment covers programming, simulation, HMI development, and asset management.
• Scalable Remote I/O: EtherNet/IP and ControlNet adapters extend the I/O footprint to unlimited remote racks. Linear, ring, and star topologies are supported, with Device Level Ring (DLR) providing network-level redundancy without managed switch infrastructure.
• GuardLogix Upgrade Path: The 1756-L71/B chassis is mechanically and electrically compatible with the 1756-L71S GuardLogix safety controller. Facilities planning future SIL 2 safety upgrades can standardize on the same chassis, power supply, and I/O modules, protecting capital investment in existing hardware.

Quality Assurance & Global Logistics

Every 1756-L71/B unit shipped from siemensplc.com is sourced through traceable industrial supply channels. Pre-shipment verification includes visual inspection of label integrity, series marking confirmation, firmware version check via USB connection, and functional backplane communication test. Units are packaged in anti-static foam-lined cartons with humidity indicator cards and desiccant packs, meeting Rockwell Automation’s recommended storage and transit conditions.

Our warehouse is located in Xiamen, Fujian Province — a designated free-trade zone with direct access to Xiamen Gaoqi International Airport and Xiamen Port, one of China’s top-ten container ports by throughput volume. This geographic position enables same-day dispatch on in-stock orders placed before 14:00 CST, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited services covering delivery to major industrial hubs in Southeast Asia within 2–4 business days, Europe within 3–5 business days, and North America within 3–5 business days.

Export documentation — including commercial invoice, packing list, HS code 8537.10 declaration, and certificate of origin — is prepared for every international shipment. Multi-currency payment is accepted: USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and Western Union. Letters of Credit (L/C) are accommodated for orders exceeding USD 5,000.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and confirmed functional failures under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon verification.
