Allen-Bradley 1794-OB8EP Digital Output Module – FLEX I/O 1794 Series

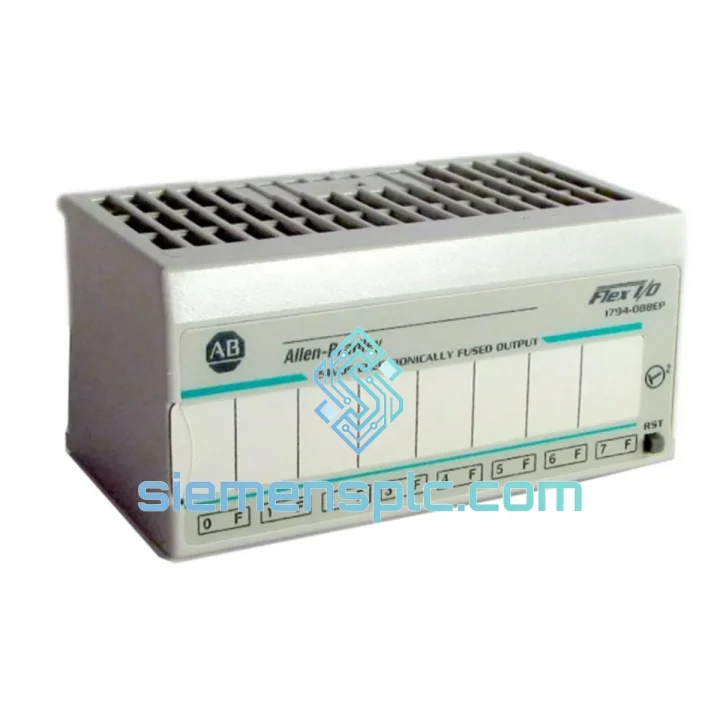

Allen-Bradley 1794-OB8EP: 8-Point Electronic-Protected Sourcing Output Module in the FLEX I/O Architecture

The 1794-OB8EP occupies a well-defined functional position within the Rockwell Automation FLEX I/O distributed I/O platform: it is the discrete output interface between a ControlLogix or CompactLogix controller and field-side actuators operating at 24V DC. Each of its eight output channels drives loads such as solenoid valves, motor contactors, pilot indicators, and relay coils through a PNP (sourcing) topology, meaning the module supplies current from the 24V rail to the load and returns through the common terminal. This sourcing architecture is the standard for European and Asian industrial wiring conventions and eliminates the polarity ambiguity common in sinking configurations.

What distinguishes the OB8EP variant from the base OB8 is the per-channel electronic protection circuit. Each output incorporates a solid-state current-limiting and thermal-shutdown mechanism that responds to short-circuit or overload conditions in under 1 ms, isolating the faulted channel without tripping adjacent outputs or requiring manual fuse replacement. The fault state is latched and reported across the backplane to the adapter module, which propagates the diagnostic tag to the controller’s I/O tree in real time. This architecture compresses fault-to-diagnosis latency to a single scan cycle — a measurable advantage in high-throughput discrete manufacturing lines where undetected output faults translate directly into scrap or line stoppages.

The module mounts on any standard FLEX I/O terminal base (1794-TB3, 1794-TB3S, 1794-TB32, 1794-TB3GK) and communicates with the system adapter — EtherNet/IP (1794-AENT), ControlNet (1794-ACN15 / 1794-ACNR15), DeviceNet (1794-ADN), or PROFIBUS-DP (1794-APB) — via the FLEX I/O backplane bus. The backplane draws 30 mA at 5V DC and 75 mA at 24V DC from the adapter’s power budget, making it one of the lower-consumption modules in the 1794 catalog and allowing dense node configurations without exceeding adapter power limits.

In terms of physical form factor, the 1794-OB8EP measures approximately 94 mm (H) × 23 mm (W) × 87 mm (D) and weighs roughly 300 g. The 23 mm width is the defining characteristic of the FLEX I/O platform: it enables 8-module nodes in a 200 mm horizontal rail segment, a density that no brick-style I/O system can match in equivalent panel space. This geometry is particularly relevant in machine-builder applications where enclosure footprint is a contractual specification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Per-Channel Electronic Protection Architecture
Conventional relay-output or fused-transistor modules protect outputs at the group or module level. The 1794-OB8EP implements individual solid-state protection on each of the eight channels using a current-sensing MOSFET driver with integrated thermal shutdown. When load current exceeds the 0.5 A threshold — whether from a hard short or a resistive overload — the driver reduces gate voltage within microseconds, clamping current and preventing thermal runaway in the output transistor. The fault is latched in a local register and transmitted across the FLEX I/O backplane as a module-level diagnostic word. The controller program can read the specific faulted bit, log the event with a timestamp, and execute a conditional restart sequence without operator intervention. This eliminates the maintenance cycle of locating and replacing blown fuses in multi-output modules, which in a 200-point I/O node can consume 30–60 minutes of technician time per incident.

Backplane Bus Electrical Interface
The FLEX I/O backplane is a parallel bus operating at 5V DC logic levels with a defined impedance profile. The 1794-OB8EP’s backplane interface draws a stable 30 mA at 5V, which is deterministic across the full operating temperature range — a critical parameter when calculating the power budget for a fully populated 8-module node. The 24V DC backplane draw of 75 mA feeds the output driver circuitry and the protection logic, keeping the field-side power supply separate from the logic supply. This dual-rail architecture prevents field-side transients from coupling into the backplane bus, a common failure mode in single-supply I/O designs.

EMC Design and Noise Immunity
The module’s output driver stage includes transient voltage suppression (TVS) diodes on each output terminal, rated to clamp inductive load kickback from solenoid coils and relay windings. Without this clamping, the inductive flyback voltage from a 24V solenoid can reach 150–300V in under 1 µs, sufficient to degrade or destroy unprotected output transistors over repeated switching cycles. The TVS clamp limits this transient to approximately 36V, well within the MOSFET driver’s breakdown rating. The module also meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels, as documented in Rockwell Automation’s EMC compliance declaration for the 1794 series.

Hot-Swap Mechanical Design
The FLEX I/O terminal base uses a keyed connector system that allows the module to be removed and reinserted while the terminal base remains wired and powered, provided the adapter module supports hot-swap operation (1794-AENT and 1794-ACN15 both do). The mechanical key prevents incorrect module insertion — a 1794-OB8EP cannot be physically seated in a terminal base keyed for an input module. This keying is implemented via a plastic key tab on the terminal base that mates with a corresponding slot on the module housing, a simple but effective error-proofing mechanism that reduces mis-wiring incidents during maintenance.

System Integration Benefits

• Deterministic scan-cycle diagnostic visibility: Fault data from each output channel is available in the controller’s I/O image table within one RPI (Requested Packet Interval) cycle, typically 2–10 ms on EtherNet/IP. This allows ladder logic or structured text routines to respond to output faults within the same scan that the fault occurs, enabling automated safe-state transitions without relying on operator detection.
• Zero-fuse maintenance model: Electronic protection eliminates consumable fuse elements from the maintenance BOM. In a facility running 50 FLEX I/O output modules, this removes an estimated 400 fuse-replacement events per year (based on industry average fault rates), reducing both parts cost and unplanned downtime.
• Granular load isolation: Because protection is per-channel rather than per-group, a single shorted solenoid valve does not disable the remaining seven outputs on the module. Adjacent actuators continue operating, limiting the fault’s impact to the specific failed load rather than an entire process segment.
• Studio 5000 / RSLogix 5000 native integration: The module’s Add-On Profile (AOP) is included in the Rockwell Automation catalog and installs automatically in Studio 5000 Logix Designer. Configuration requires only selecting the module type and setting the RPI; no manual parameter entry is needed. The AOP exposes all diagnostic tags — output status, fault bits, and module health — in a structured tag tree accessible to any routine in the controller project.
• Multi-protocol adapter compatibility: The same 1794-OB8EP module operates identically on EtherNet/IP, ControlNet, DeviceNet, and PROFIBUS-DP adapters. This allows a single spare module to cover multiple network topologies in a facility, reducing spare-parts inventory complexity and carrying cost.
• High-density panel layout: At 23 mm per module, an 8-module FLEX I/O node occupies 184 mm of DIN rail — less than 20 cm. Compared to a modular brick I/O system requiring 35–50 mm per module, this represents a 35–50% reduction in rail length for equivalent I/O count, directly reducing enclosure size and material cost.
• Wide thermal operating envelope: The 0–55 °C operating range covers the majority of industrial enclosure environments without forced cooling. The −40 °C storage rating allows the module to be stored in unheated warehouses in cold climates without risk of damage to the protection circuitry or connector contacts.
• Inductive load compatibility without external suppression: The integrated TVS clamping on each output terminal allows direct connection to solenoid valves and relay coils without requiring external freewheeling diodes or RC snubber networks. This simplifies field wiring, reduces terminal block count, and eliminates a common source of field-wiring errors during commissioning.
